5L/M flow -40kpa vacuum 50kpa pressure dc brushless diaphragm pump

Remark: Usually our pump has 4 kinds of voltage:6V, 9V,12V and 24V.
When you choose pump, you can tell me the pump's voltage you need.
We can do it for you.

pump's features

Low noise

Long lifetime

Highest performance

Extreme chemical resistance

Uncontaminated flow

High level of gas tightness

Optimal solution for your application

brushless diaphragm pump​'s model code

According to above picture, you know how our model codes are produced.
You can know our pump more clearly and choose the pump more easily.

brushless diaphragm pump​'s dimension

Unlabeled tolerance is ± 0.1mm.

Pump Size:50*70*100mm
Pump Weight:310g;
Outlet:OD 6mm, silicone hose suggestion:ID 5mm
Materials:pump body: PC/PPS, diaphragm: EPDM
Because we use imported ball bearing,the pump’s performance is stable and high.
The membrane is made by EPDM and pump's body is made by special PC/PPS which make pump well endurance and strong chemical resisitance.

brushless diaphragm pump​'s application

The pump can be used in wide range.

Our products can meet the specific needs of different clients. The products are mainly used in medical cosmetology, household electronic appliances, food and beverage, health,instrument,chemical instrumentation. The car and laboratory and other industries. The products are mainly exported to korea, Japan,southeast Asia, Australia, Europe and other countries.

brushless diaphragm pump​'s packing and shipping

Packaging:

We can ship pumps to you by sea, by air or by express.
By sea: cheap but long
By air: quick but a a little expensive
By express: door to door, 3-5days to your country by DHL/UPS/FEDEX/TNT and others.

The fastest, but most expensive.
You can choose according to your needs.

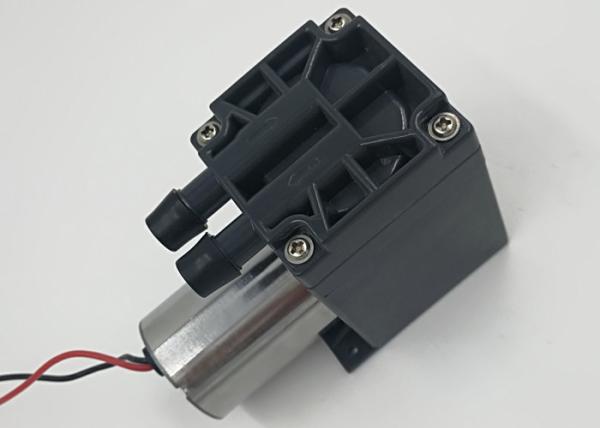

brushless diaphragm pump's picture

Working principle: the rotary motion of the motor turn into the swing of connecting rod which makes the diaphragm up and down motion. In the process of the downward movement of the diaphragm, pump cavity will suck medium through the inlet valve; Upward movement of the diaphragm, pump cavity press out media through the outlet valve. Mechanical transmission parts and pump cavity is isolated by diaphragm. Diaphragm pump does not need oil for auxiliary lubricating, in the process of transmission, extraction and compression of medium.

Company Information

Founded in 1999, Yanhua faith is concentrated on the micro pump field’s research and development for 20year, we are only company in China whose positioning is to supply and produce high-end brushless DC pumps and brush dc pump to all countries ,aiming “ to be the dc micro pump field leader and the most influential enterprise”. Just like many professional foreign excellent companies, they focus on one product fro centuries and make the product and the best one in their respective field, this is also what Yanhua Faith pursue. Under this pursuit,our company’s quality police has been targeted at “by the creative spirit ,setting up the micro pump industry’s benchmark, and building up the international high quality”. We devote to 20% profit to R & D department, so we have more than 20 patent in research dc micro pump.

RFQ

Q1: Are you a factory or trading company?

A1: We are a factory.

Q2: Can I get a sample? How long it will take to get a sample?

A2: Yes, you can order sample to test and check the quality.

For our usual sample, the sample lead time is about 3-5days.

If special sample, it will take a longer time for design and order materials to do pumps.

All our samples are done by our engineers.

They can according to your needs customize pump for you.

Q3: How can I make the payment?

A3:Payment can be made through T/T, paypal or Western Union.

Q4: Is it OK to print our logo on Pump?

A4: Yes, we could do OEM and print your logo on Pump product.

Q5: What about the package ?

A5: Standard export carton.

Q6.: The use of products have?

A6:The pump can pump various strong acid, alkali and corrosive air etc.

Q7: How product quality and service?

A7: Our pump have CE certificate, quality assured and provide various personalized needs.

Q8: How to proceed an order for Mini Air Pump?

A8: (1) Checking /confirming all details information( include requirement of pump product, payment terms, price,quantity, leading time or others);

(2) Checking/confirming the sample's quality or satisfied result;

(3) Final checking/confirming the price/quantity/leading time/payment terms for first trial order;

(4) We factory arrange the production after receiving the real pump order.
