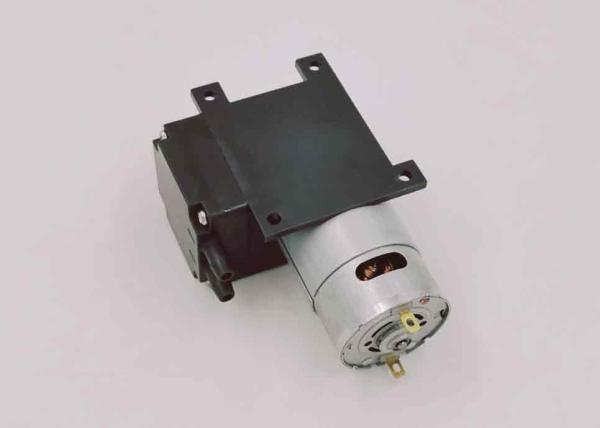

Brush DC Motor Electric Diaphragm Pump 6 Volt 160kpa Pressure -60kpa Vacuum
Brush DC Motor Electric Diaphragm Pump 6 Volt 160kpa Pressure -60kpa Vacuum
Specifications
Brand Name :
Feiyinsi
Model Number :
DX506-1605-4800
Certification :
Rohs,Reach
Place of Origin :
China
MOQ :
50pcs
Price :
Negotiable
Payment Terms :
Western Union, , T/T, L/C,paypal
Supply Ability :
3000pcs per day
Packaging Details :
Export carton, carton's dimension:47*31*25cm
Basic Materials :
PC/PPS/Nylon, EPDM,hardware
structure :
diaphragm pump
Working way :
Continuous or intermittent
usage :
air or vacuum
Weight :
300g
size :
102.4*70*40mm
Theory :
vacuum
Power :
Electric
Application :
pump or transfer air,gas
Pressure :
160kpa pressure
Motor :
DC motor
Model :
DX506-1605-4800
pump's name :
6v dc micro air pump
vacuum :
-60kpa
Description

electric diaphragm 6v dc micro air pump with brush dc motor for air

How to Judge the working condition of exhaust end of 6v dc micro air pump

The above problem is to discuss the suction end resistance of the pump. According to these conditions, the range of selection has been reduced, but the problem of exhaust end resistance must be considered. In this way, the optional range can be determined.

In practical application, the exhaust condition of the micro vacuum pump is different: one is that the exhaust is very smooth and goes straight to the atmosphere; the other is the high exhaust resistance, such as valves, small bends, and large damping sensors on the exhaust pipe road, Non-specific silencers, exhaust below liquid level, gas to airtight or semi-closed containers, etc. In modern design and manufacture, the micro vacuum pump with different exhaust conditions is treated differently. " The parameter of the maximum resistance Por value "is to calibrate the exhaust capacity of the pump, so we can use strict technical means to determine whether the type selection is appropriate or not."

According to the above steps, we have been able to determine the selection range of the micro pump. The allowance should be left for the selection of the attention parameters, especially the flow parameters. After the pump is connected to the gas path system, the pressure loss will be caused by the pipeline, valve and other gas elements, so the flow rate is smaller than the nominal flow rate of the pump, and some problems related to the selection of the pump are listed below, which are considered according to the application situation.

6v dc micro air pump's parameter and features

Compared with the large vacuum pump, it has the following advantages: small size, low noise, low power consumption, easy operation, easy to carry, no maintenance, 24 hours continuous operation, and allows medium to be rich in water vapor. Most importantly, because it is dry, oil free, no vacuum pump oil or lubricating oil, it will not pollute the working medium, do not interfere with the medium analysis and so on. And the price is much cheaper.

Model

DX506-1605-4800

Size(mm)

102.4*70*40

Voltage(V/DC)

6V/9V/12V/24V

Power(W)

8

Free Flow(L/M)

12

Pressure(Kpa)

160

Vacuum(Kpa)

-60

Weight

300


Remark: Usually our pump has 4 kinds of voltage:6V, 9V,12V and 24V.
When you choose pump, you can tell me the pump's voltage you need.
We can do it for you.

Pump Size:102.4*70*40mm

Pump Weight:300g;

Outlet:OD 6.5mm, silicone hose suggestion:ID 5mm

Materials:pump body: PC/PPS, diaphragm: EPDM

Because we use imported ball bearing,the pump’s performance is stable and high.

The membrane is made by EPDM and pump's body is made by special PC/PPS which make pump well endurance and strong chemical resistance.

6v dc micro air pump's details show

Working principle: the rotary motion of the motor turn into the swing of connecting rod which makes the diaphragm up and down motion. In the process of the downward movement of the diaphragm, pump cavity will suck medium through the inlet valve; Upward movement of the diaphragm, pump cavity press out media through the outlet valve. Mechanical transmission parts and pump cavity is isolated by diaphragm. Diaphragm pump does not need oil for auxiliary lubricating, in the process of transmission, extraction and compression of medium.

6v dc micro air pump's application

Mainly used in household appliances, laboratory equipment, environmental monitoring, gas monitoring, automotive tires and other fields.

6v dc micro air pump's packing and shipping

Packaging:

CTN/PCS: 60PCS

G.W. : 19.5 KG

DIMENSION : 47 * 31 * 25 CM

1. The stock samples can be sent to you within 3-5 days by international express after received

2. The batch order can be shipped to you in about 30-40days after order confirmation (by air or by

sea)

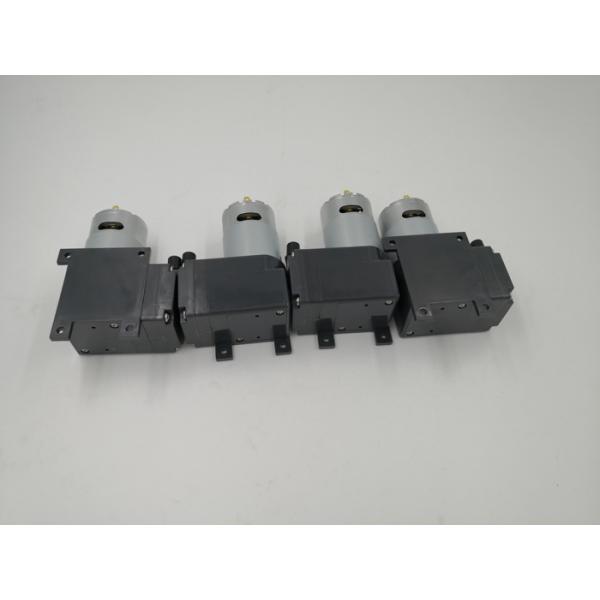

6v dc micro air pump's photo

Brush DC Motor Electric Diaphragm Pump 6 Volt 160kpa Pressure -60kpa Vacuum

Our company offers multiple component configurations allowing piston pump to be used for either vacuum operation, pressure operation, or alternating vacuum and pressure operations.The innovative, compact design incorporates leading edge technologies that allow it to operate harder, quieter and longer, reliable, highly efficient.

Its flow can deliver up to 2 L/min and 18L/M.

Usually our pump has 4 kinds of voltage:6V, 9V,12V and 24V .

When you choose pump, you can tell me the pump's voltage you need.

We can do it for you.

You can choose pump according to our model.

In addition,it can be mounted in any position.

Company Information

Shenzhen Yanhua Faith Technology Co., Ltd. specializes in manufacturing micro-pumps :

mini vacuum pumps , micro air pump , micro water pump , brushless self-priming pump, brushless air pump, brushless water pump, brushless vacuum pump , brushless pump ; piston pumps; oil-free pump ( oil-less vacuum pump , no oil air pump , no oil air pump , no oil brushless vacuum pump ) ; gear pumps , air pumps, impeller pumps, submersible pumps and other micro pumps.

Certifications

We have obtained the ISO9001 certification, and our products comply with the EU RoHS Directive and REACH regulations, FDA certification. Some of our products have WARS, NSF approval.

Today, Yanhua have 12 production lines and 300 skilled workers, our monthly production capacity is 500,000pcs brushless and brush dc pumps,100,000 piston pumps and 10,000 gear pump and water pump.

FQA

Q1: Can I have a sample order for it?

A: Warmly welcome of sample order to test and check quality. Mixed samples are acceptable.

Q2: What about the lead time?

A: Sample needs 3-5 days, mass production time needs 1-2 weeks, if bulk qty need about 20-25workdays.

Q3: How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q4: How to proceed an order?

Firstly let us know your requirements or application.

Secondly We quote according to your requirements /our recommend model with suggestions.

Thirdly customer confirms the samples and places deposit for formal order.

Fourthly We arrange the production.

Q5: What's your payment terms?

A: T/T & L/C, small amount accept paypal. Big amount ok for 30% down payment & balance against copy bill of loading.For more need, please just contact us and we will reply within 24hours on working days.

Q6. Is it OK to print my logo on this product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 6-12 months warranty to our products & 1% wear out parts for after service.

Q8: What’s your main marker?

A: North America, Korea & European

Q9: Do you have ability to do ODM service?

A1: Warmly welcome your ODM requirement based on our production line and our R&D team with more than 16 years experience on pump& motors.

A2: ODM service based on offered sample. B:Oo modify & creative new function based on our product series.

Q10. Do you have any MOQ limit for led light order?

A. No MOQ, 1pc for sample checking is available.
