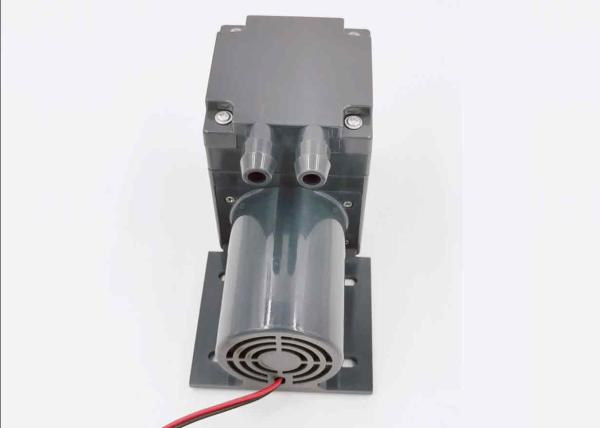

3.5L/M flow mini water pump/pressure washer pump with self-priming function

Judging the working condition of exhaust end of miniature pump

The above problem is to discuss the suction end resistance of the pump. According to these conditions, the range of selection has been reduced, but the problem of exhaust end resistance must be considered. In this way, the optional range can be determined.

In practical application, the exhaust condition of the micro vacuum pump is different: one is that the exhaust is very smooth and goes straight to the atmosphere; the other is the high exhaust resistance, such as valves, small bends, and large damping sensors on the exhaust pipe road, Non-specific silencers, exhaust below liquid level, gas to airtight or semi-closed containers, etc. In modern design and manufacture, the micro vacuum pump with different exhaust conditions is treated differently. " The parameter of the maximum resistance Por value "is to calibrate the exhaust capacity of the pump, so we can use strict technical means to determine whether the type selection is appropriate or not."

Model: S712-20A-2000 ​​

Size(mm): 66*85.5*116

Voltage:(V/DC) 6V/9V/12V/24V

No-load current:(mA) 510

Load current:(A) 1.1

Free Flow:(L/M) 3.5

Self-priming height:1m

Lift(m): 2

Weight: 600

1. DC motor with long lifetime

2. Low noise

3. Continuous operation: The pump can sustain heavy duty work for a day;

4. Compact design, It has good waterproof;

5. Low power consumption, high efficient-save on operating cost;

6. Small and Light-weight, Installation is very simple;

7. Wide application;

8. Perfect for indoor or outdoor use;

9. It can be customized according to customer's technical requirements.

Working principle:The rotary motion of the motor makes the driving gear to rotate and the driving gear makes the driven gear to rotate.When the meshing teeth gradually separate on one side of the suction chamber; suction chamber volume is increased; pressure is reduced, the liquid in suction pipe will be sucked into pump. Sucked liquid was divided into two road in gear teeth groove and was pushed to the discharge chamber. After liquid entering into the discharge chamber, because of the two gear tooth meshing unceasingly, the liquid from the discharge chamber into the discharge pipe by extrusion.

pressure washer pump's application

Mainly used in household appliances, laboratory equipment, environmental monitoring, gas monitoring, automotive tires and other fields.

pressure washer pump's demension

pressure washer pump's packing and shipping

Packaging:

CTN/PCS: 36PCS

G.W. : 22.5 KG

DIMENSION : 47 * 31 * 25 CM

Picture’s about the packaging:

User Instructions

1. will not guarantee the products if the application of our products are exceeded the limitation which is specified on this specification.

2. In case of changes of the specification specified on this document. A written notice is requested in advance.

3. there is any data or related documentation different from this data sheet.This data sheet is the principle reference.

4. Please do not use it in the environment of corrosive gas or liquid or any detrimental gas. 5.While the motor is in operation,please do not lock the motor intentionally for a long periods,since the continuous stoppage will result in overheat and thus burnt out the motor.
