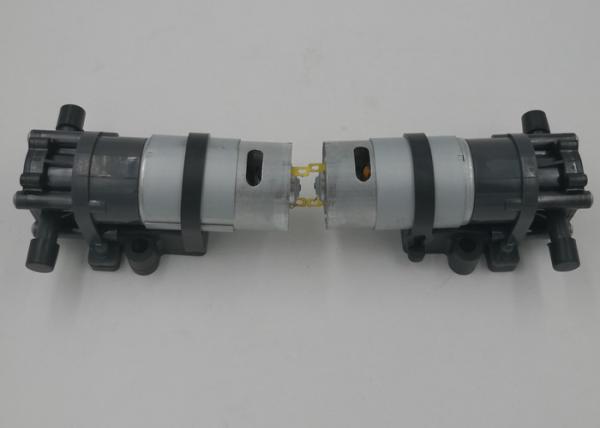

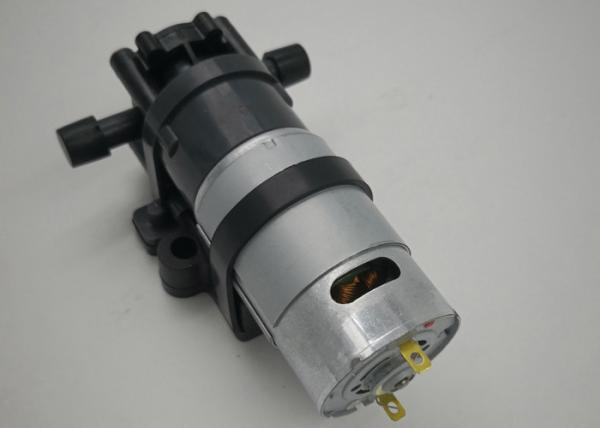

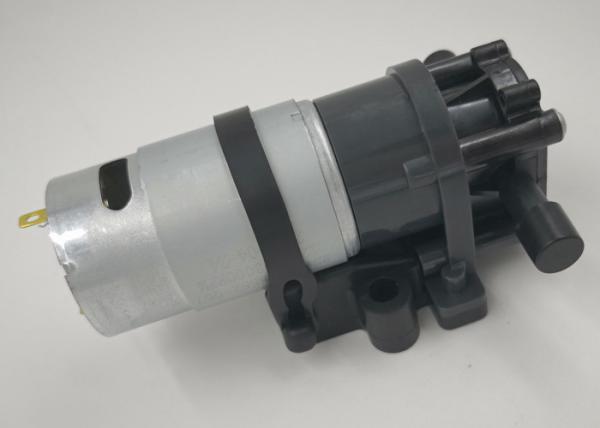

Electric Mini Gear Pump 24V Dc 1.5L/M Flow Small Portable With Brush Motor
Electric Mini Gear Pump 24V Dc 1.5L/M Flow Small Portable With Brush Motor
Electric Mini Gear Pump 24V Dc 1.5L/M Flow Small Portable With Brush Motor
Electric Mini Gear Pump 24V Dc 1.5L/M Flow Small Portable With Brush Motor
Electric Mini Gear Pump 24V Dc 1.5L/M Flow Small Portable With Brush Motor
Electric Mini Gear Pump 24V Dc 1.5L/M Flow Small Portable With Brush Motor
Electric Mini Gear Pump 24V Dc 1.5L/M Flow Small Portable With Brush Motor
Electric Mini Gear Pump 24V Dc 1.5L/M Flow Small Portable With Brush Motor
Specifications
Brand Name :
Feiyinsi
Model Number :
C524-2500
Certification :
Rohs,Reach
Place of Origin :
China
MOQ :
50pcs
Price :
Negotiable
Payment Terms :
Western Union, , T/T, L/C,paypal
Supply Ability :
3000pcs per day
Packaging Details :
Export carton, carton's dimension:47*31*25cm
Basic Materials :
PC/PPS/POM, EPDM,hardware
structure :
gear pump
Working way :
Continuous or intermittent
Weight :
285g
size :
109.6*68*52.3mm
Theory :
vacuum
Power :
Electric
Motor :
DC pump
Model :
C524-2500
pump name :
small gear pump
Description

electric 24V dc 1.5L/M flow small portable gear pump with brush motor

Product Description

small gear pump's parameter and features

Model C524-2500
Size(mm) 109.6*68*52.3
Voltage(V/DC) 6V/9V/12V/24V
No-load current(mA) 150
Load current(mA) 200
Free Flow(L/M) 1.5
Lift(m) 2
Weight 285
Remark: Usually our pump has 4 kinds of voltage:6V, 9V,12V and 24V.
When you choose pump, you can tell me the pump's voltage you need.
We can do it for you.

Pump Size:109.6*68*52.3mm

Pump Weight:285g;

Outlet:OD 6.5mm, silicone hose suggestion:ID 6mm

Materials:pump body: PPS/PC/POM, membrane:EPDM

Because we use imported ball bearing,the pump’s performance is stable and high.

The membrane is made by EPDM and pump's body is made by PC/POM/PPS which make pump well endurance and strong chemical resistance.

Our Pump Feature

1. DC motor with long lifetime

2. Low noise

3. Continuous operation: The pump can sustain heavy duty work for a day;

4. Compact design, It has good waterproof;

5. Low power consumption, high efficient-save on operating cost;

6. Small and Light-weight, Installation is very simple;

7. Wide application;

8. Perfect for indoor or outdoor use;

9. It can be customized according to customer's technical requirements.

Our company offers multiple component configurations allowing piston pump to be used for either vacuum operation, pressure operation, or alternating vacuum and pressure operations.The innovative, compact design incorporates leading edge technologies that allow it to operate harder, quieter and longer, reliable, highly efficient.

Its flow can deliver up to 1 l/min and 2.8L/M.

Usually our pump has 4 kinds of voltage:6V, 9V,12V and 24V.

When you choose pump, you can tell me the pump's voltage you need.

We can do it for you.

You can choose pump according to our model.

In addition,it can be mounted in any position.

small gear pump's application

1. breast pump

2. Beauty equipment

3. Vacuum packaging machine

4. Double-headed electric breast pump

5. Portable ozone sterilizer

6. Vacuum sealing machine

7. Beauty massage

User Instructions

1. will not guarantee the products if the application of our products are exceeded the limitation which is specified on this specification.

2. In case of changes of the specification specified on this document. A written notice is requested in advance.

3. there is any data or related documentation different from this data sheet.This data sheet is the principle reference.

4. Please do not use it in the environment of corrosive gas or liquid or any detrimental gas. 5.While the motor is in operation,please do not lock the motor intentionally for a long periods,since the continuous stoppage will result in overheat and thus burnt out the motor.

small gear pump's demension

Electric Mini Gear Pump 24V Dc 1.5L/M Flow Small Portable With Brush Motor

Why choose us?

(1) Various pumps in no MOQ and competitive prices.

(2) Professional website platform and one-to-one online service.

(3) We are factory. And we have our own professional R&D department. We accept the order if you want to customize products or design the product.

(4) Fast delivery for normal order, for the bulk quantity, it depends on your specific requirement.

(5) Products are all covered with warranty and insurance.
