12V/24v DC brushless electric water transfer utility pump

Pump Size:50*70*100mm
Pump Weight:310g;
Outlet:OD 6mm, silicone hose suggestion:ID 5mm
Materials:pump body: PC/PPS, diaphragm: EPDM
Because we use imported ball bearing,the pump’s performance is stable and high.
The membrane is made by EPDM and pump's body is made by special PC/PPS which make pump well endurance and strong chemical resisitance.

water transfer utility pump's details show

Working principle: the rotary motion of the motor turn into the swing of connecting rod which makes the diaphragm up and down motion. In the process of the downward movement of the diaphragm, pump cavity will suck medium through the inlet valve; Upward movement of the diaphragm, pump cavity press out media through the outlet valve. Mechanical transmission parts and pump cavity is isolated by diaphragm. Diaphragm pump does not need oil for auxiliary lubricating, in the process of transmission, extraction and compression of medium.

water transfer utility pump's application

Our products can meet the specific needs of different clients. The products are mainly used in medical cosmetology, household electronic appliances, food and beverage, health,instrument,chemical instrumentation. The car and laboratory and other industries. The products are mainly exported to korea, Japan,southeast Asia, Australia, Europe and other countries.

water transfer utility pump's size

water transfer utility pump's packing and shipping

CTN/PCS: 30PCS

G.W. : 11.5 KG

DIMENSION : 47 * 31 * 25 CM

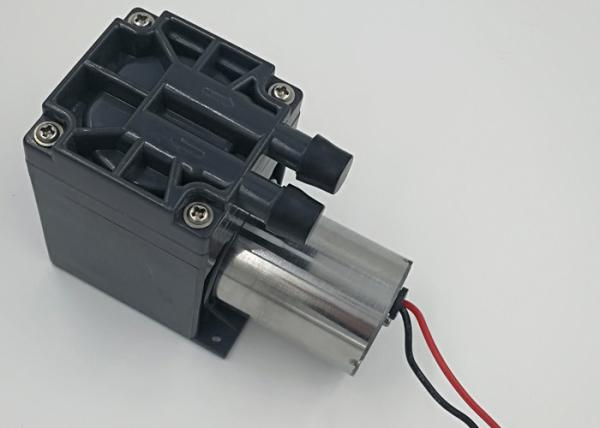

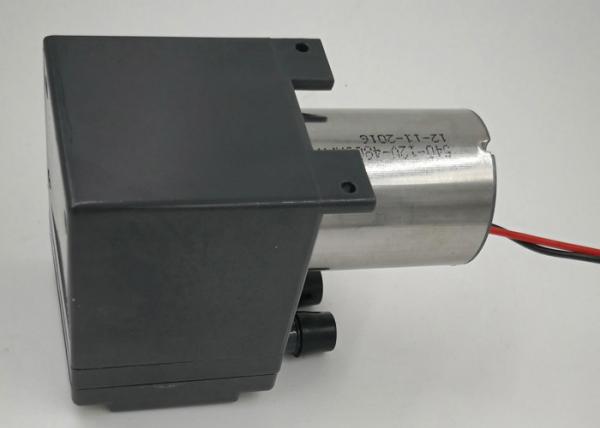

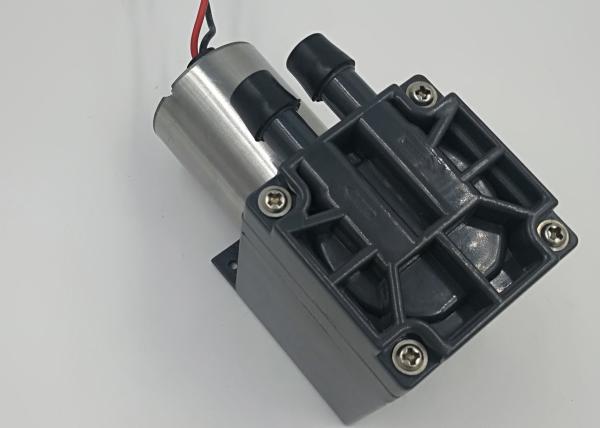

water transfer utility pump's picture

Our company offers multiple component configurations allowing piston pump to be used for either vacuum operation, pressure operation, or alternating vacuum and pressure operations.The innovative, compact design incorporates leading edge technologies that allow it to operate harder, quieter and longer, reliable, highly efficient.

Its flow can deliver up to 1.5 l/min and 2L/M.

Usually our pump has 4 kinds of voltage:6V, 9V,12V and 24V.

When you choose pump, you can tell me the pump's voltage you need.

We can do it for you.

You can choose pump according to our model.

In addition,it can be mounted in any position.
