Specifications
Brand Name :
Feiyinsi
Model Number :
DW5012-1506-3700
Certification :
Rohs,Reach
Place of Origin :
China
MOQ :
50pcs
Price :
Negotiable
Payment Terms :
Western Union, , T/T, L/C,paypal
Supply Ability :
3000pcs per day
Packaging Details :
Export carton, carton's dimension:47*31*25cm
Basic Materials :
PC/PPS,epdm,hardware
structure :
diaphragm pump
Working way :
Continuous or intermittent
usage :
air or vacuum
Weight :
310g
Theory :
vacuum
Power :
Electric
Application :
inflate and deflate gas
Pressure :
-70kpa vacuum and 150kpa pressure
Motor :
DC pump
Model :
DW5012-1506-3700
pump name :
24v dc compress
Description

electric vacuum pump 12v dc compressor for vauum and air

24v dc compress's parameter and features

Model DW5012-1506-3700
Size(mm) 50*70*100
Voltage(V/DC) 6V/9V/12V/24V
Power(W) 9
Free Flow(L/M) 15
Max. vacuum(Kpa) -70
Max.pressure(Kpa) 150
Weight 310


Remark: Usually our pump has 4 kinds of voltage:6V, 9V,12V and 24V.
When you choose pump, you can tell me the pump's voltage you need.
We can do it for you.

pump's features

1. DC motor with long lifetime

2. Low noise

3. Continuous operation: The pump can sustain heavy duty work for a day;

4. Compact design, It has good waterproof;

5. Low power consumption, high efficient-save on operating cost;

6. Small and Light-weight, Installation is very simple;

7. Wide application;

8. Perfect for indoor or outdoor use;

9. It can be customized according to customer's technical requirements.

24v dc compress's model code

9 Watt Electric Engine Vacuum Pump , 12 Volt Vacuum Pump For Power Brakes DC Compressor
According to above picture, you know how our model codes are produced.
You can know our pump more clearly and choose the pump more easily.

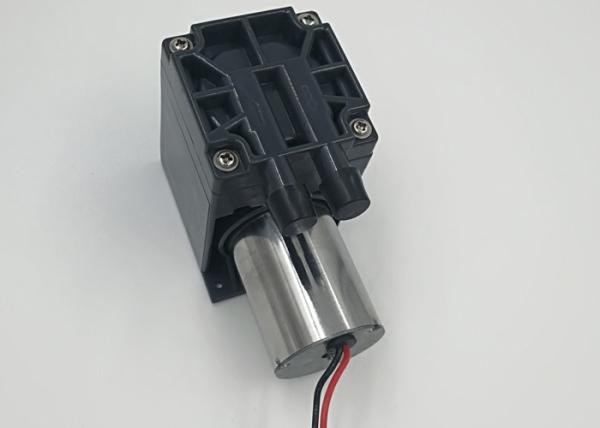

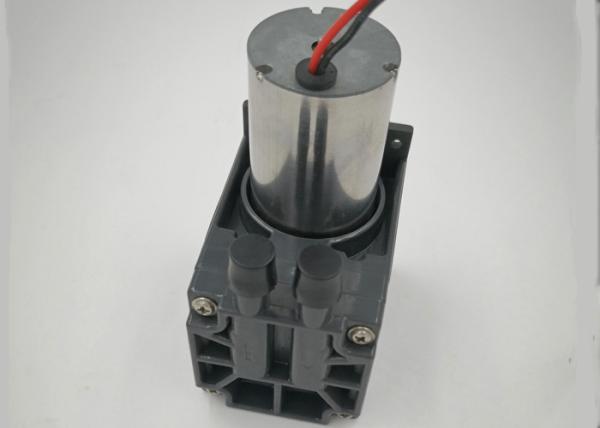

24v dc compress's details show

9 Watt Electric Engine Vacuum Pump , 12 Volt Vacuum Pump For Power Brakes DC Compressor

Our company offers multiple component configurations allowing piston pump to be used for either vacuum operation, pressure operation, or alternating vacuum and pressure operations.The innovative, compact design incorporates leading edge technologies that allow it to operate harder, quieter and longer, reliable, highly efficient.

Its flow can deliver up to 5 l/min and 20L/M.

Usually our pump has 4 kinds of voltage:6V, 9V,12V and 24V.

When you choose pump, you can tell me the pump's voltage you need.

We can do it for you.

You can choose pump according to our model.

In addition,it can be mounted in any position.

24v dc compress's demension

9 Watt Electric Engine Vacuum Pump , 12 Volt Vacuum Pump For Power Brakes DC Compressor

Unlabeled tolerance is ± 0.1mm.

Pump Size:50*70*100mm
Pump Weight:310g;
Outlet:OD 6mm, silicone hose suggestion:ID 5mm
Materials:pump body: PC/PPS, diaphragm: EPDM
Because we use imported ball bearing,the pump’s performance is stable and high.
The membrane is made by EPDM and pump's body is made by special PC/PPS which make pump well endurance and strong chemical resisitance.

24v dc compress's production process


9 Watt Electric Engine Vacuum Pump , 12 Volt Vacuum Pump For Power Brakes DC Compressor
Our company has a complete production system.
We has our own mold department, injection molding department, production and

assembly department, sample room, R & D department, sales department.
We can independently design and produce pump.

In addition, we can assemble productions in strict accordance with the ISO9001 system.

24v dc compress's application

1. breast pump

2. Beauty equipment

3. Vacuum packaging machine

4. Double-headed electric breast pump

5. Portable ozone sterilizer

6. Vacuum sealing machine

7. Beauty massage

24v dc compress's packing and shipping

We can ship pumps to you by sea, by air or by express.
By sea: cheap but long
By air: quick but a a little expensive
By express: door to door, 3-5days to your country by DHL/UPS/FEDEX/TNT and others.

The fastest, but most expensive.
You can choose according to your needs.

Company Information

We only produce pump.
We strive for almost 20 years just to produce a better pump.
So we are professional in producing pump.
Please remember our name: Shenzhen Yanhua Faith Pump

Certifications


All products of our company have independent intellectual property rights and patents.
We have all kinds of certification, such as Rohs,CE and Reach.

Our services

1. OEM / ODM welcome

2. Competitive advantage mini air pump, mini water pump, mini air valve

3. No MOQ & small order & sample order welcomed

4. We will reply you for your inquiry in 24 hours.

5. After sending, we will track the products for you once every two days, until you get the

products. When you got the goods, test them, and give me a feedback.If you have any

questions about the problem, contact with us, we will offer the solve way for you.

6. 24*7 After sale service

7. We accept Paypal & Trade Assurance

8. With us your money in safe,your business in safe.
