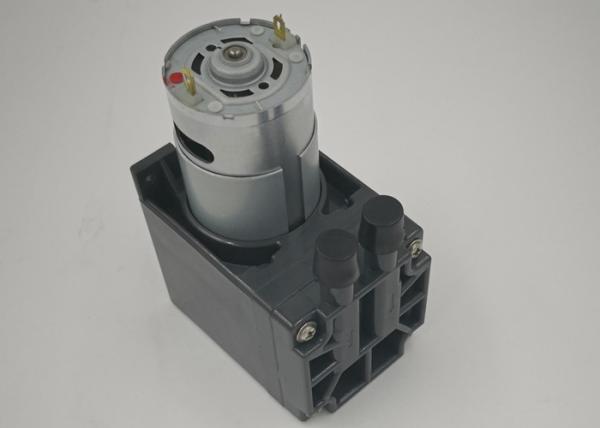

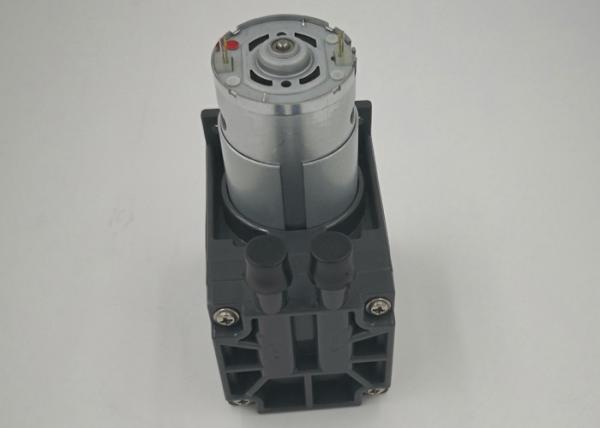

24vdc pump 16L/M flow electric vacuum pump

1. Small and powerful

2. Extreme chemical resistance

3. Brush and brush-less direct current motor for selection

4. Dry running, durable and maintenance free

5. Self-priming and excellent for pressure

6. Low noise, longer endurance lifetime than other normal membrane pump

Remark: Usually our pump has 4 kinds of voltage:6V, 9V,12V and 24V.
When you choose pump, you can tell me the pump's voltage you need.
We can do it for you.

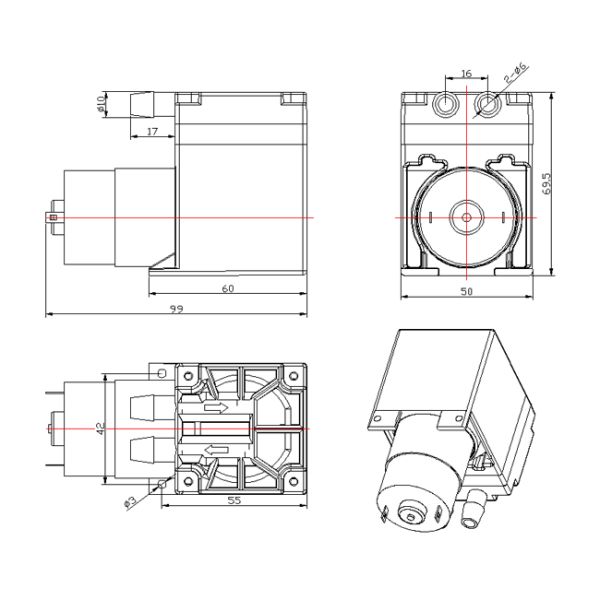

24vdc pump 's demension

Unlabeled tolerance is ± 0.1mm.

Pump Size:50*70*100mm
Pump Weight:310g;
Outlet:OD 6mm, silicone hose suggestion:ID 5mm
Materials:pump body: PC/PPS, diaphragm: EPDM
Because we use imported ball bearing,the pump’s performance is stable and high.
The membrane is made by EPDM and pump's body is made by special PC/PPS which make pump well endurance and strong chemical resisitance.

24vdc pump 's production process

The company consists of a professional design department, mold department, injection department , assembling workshop.

All products of the company have independent intellectual property rights and patents. We can independently design and produce. In addition, we can assemble productions in strict accordance with the ISO9001-2015 system. The company has passed ISO9001 certification. "Feiyinsi" is a registered trademark of our company .Based on the soul purpose "we are implementing the principle of “quality and service is the first” all the time, taking the highest industry standard to control every procedure.

24vdc pump 's application

.Mainly used in household appliances, laboratory equipment, environmental monitoring, gas monitoring, automotive tires and other fields.

24vdc pump 's packing and shipping

Shipment

1. We can ship by DHL, UPS, FedEx ,TNT, EMS, HONGKONG post etc.DHL, UPS, FedEx, TNT takes about 3-5 workdays for delivery.

2. And we will help choose the most cost-effective way for you according to your requirement.

3. The tracking number will be available the next day after shipment,then you can check your goods is on the way.

Shenzhen Yanhua Faith Technology Co., Ltd. specializes in manufacturing micro-pumps :

mini vacuum pumps , micro air pump , micro water pump , brushless self-priming pump, brushless air pump, brushless water pump, brushless vacuum pump , brushless pump ; piston pumps; oil-free pump ( oil-less vacuum pump , no oil air pump , no oil air pump , no oil brushless vacuum pump ) ; gear pumps , air pumps, impeller pumps, submersible pumps and other micro pumps.

Our services

1. OEM / ODM welcome

2. Competitive advantage mini air pump, mini water pump, mini air valve

3. No MOQ & small order & sample order welcomed

4. We will reply you for your inquiry in 24 hours.

5. After sending, we will track the products for you once every two days, until you get the

products. When you got the goods, test them, and give me a feedback.If you have any

questions about the problem, contact with us, we will offer the solve way for you.

6. 24*7 After sale service

7. We accept Paypal & Trade Assurance

8. With us your money in safe,your business in safe.
