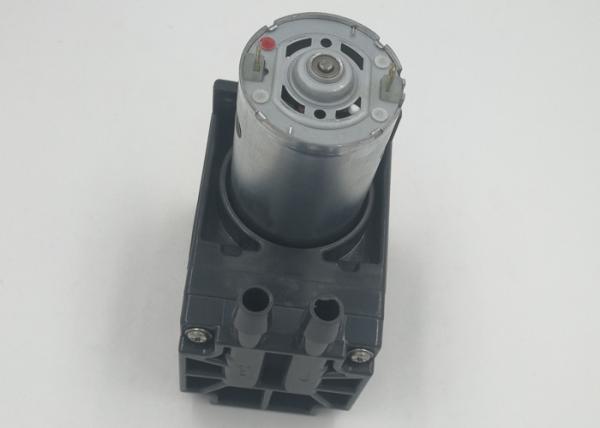

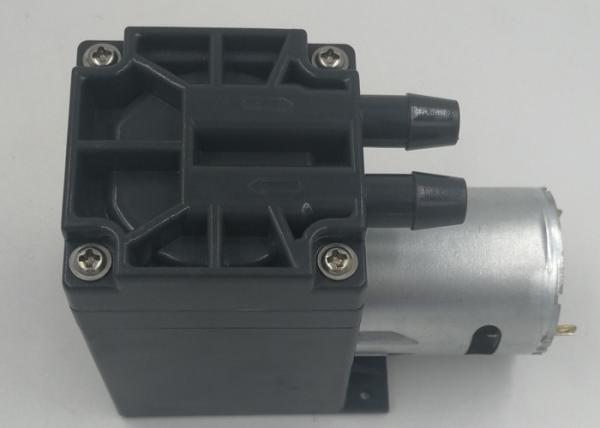

DC Brush 12 Volt Air Vacuum Pump , High Pressure Micro Vacuum Pump 10L/M Flow
DC Brush 12 Volt Air Vacuum Pump , High Pressure Micro Vacuum Pump 10L/M Flow
DC Brush 12 Volt Air Vacuum Pump , High Pressure Micro Vacuum Pump 10L/M Flow
DC Brush 12 Volt Air Vacuum Pump , High Pressure Micro Vacuum Pump 10L/M Flow
DC Brush 12 Volt Air Vacuum Pump , High Pressure Micro Vacuum Pump 10L/M Flow
DC Brush 12 Volt Air Vacuum Pump , High Pressure Micro Vacuum Pump 10L/M Flow
Specifications
Brand Name :
Feiyinsi
Model Number :
D5024-1005-3700
Certification :
Rohs,Reach
Place of Origin :
China
MOQ :
50pcs
Price :
Negotiable
Payment Terms :
Western Union, , T/T, L/C,paypal
Supply Ability :
3000pcs per day
Packaging Details :
Export carton, carton's dimension:47*31*25cm
Basic Materials :
PC/PPS,epdm,hardware
Working way :
Continuous or intermittent
usage :
air or vacuum
Theory :
vacuum
Power :
Electric
Application :
inflate and deflate gas
Pressure :
100kpa pressure, -50kpa vacuum
Motor :
DC brushless motor
Model :
D5024-1005-3700
pump name :
diaphragm air pump 12v
Description

dc brush diaphragm air pump 12v electric vacuum pump for air or vacuum


Product Description


diaphragm air pump 12v 's parameter



Our company offers multiple component configurations allowing piston pump to be used for either vacuum operation, pressure operation, or alternating vacuum and pressure operations.The innovative, compact design incorporates leading edge technologies that allow it to operate harder, quieter and longer, reliable, highly efficient.
Its flow can deliver up to 5 l/min and 20L/M.
Usually our pump has 4 kinds of voltage:6V, 9V,12V and 24V.
When you choose pump, you can tell me the pump's voltage you need.
We can do it for you.
You can choose pump according to our model.
In addition,it can be mounted in any position.

ModelD5024-1005-3700
Size(mm)50*70*100
Voltage(V/DC)6V/9V/12V/24V
Power(W)7
Free Flow(L/M)10
Max. vacuum(Kpa)-50
Max.pressure(Kpa)100
Weight310


Pump Size:50*70*100mm
Pump Weight:310g;
Outlet:OD 6mm, silicone hose suggestion:ID 5mm
Materials:pump body: PC/PPS, diaphragm: EPDM
Because we use imported ball bearing,the pump’s performance is stable and high.
The membrane is made by EPDM and pump's body is made by special PC/PPS which make pump well endurance and strong chemical resisitance.


diaphragm air pump 12v 's application

Industrial pressure and vacuum applications
Portable analytical instruments
Medical diagnostic equipment
Air quality sampling monitors
Respiration monitors
Gas or odor leak detectors

diaphragm air pump 12v 's packing and shipping

CTN/PCS: 30PCS
G.W. : 11.5 KG
DIMENSION : 47 * 31 * 25 CM
Shipment
1. We can ship by DHL, UPS, FedEx ,TNT, EMS, HONGKONG post etc.DHL, UPS, FedEx, TNT takes about 3-5 workdays for delivery.
2. And we will help choose the most cost-effective way for you according to your requirement.
3. The tracking number will be available the next day after shipment,then you can check your goods is on the way.

User Instructions

1. will not guarantee the products if the application of our products are exceeded the limitation which is specified on this specification.
2.In case of changes of the specification specified on this document. A written notice is requested in advance.
3.there is any data or related documentation different from this data sheet.This data sheet is the principle reference.
4.Please do not use it in the environment of corrosive gas or liquid or any detrimental gas. 5.While the motor is in operation,please do not lock the motor intentionally for a long periods,since the continuous stoppage will result in overheat and thus burnt out the motor.

Certifications


All products of our company have independent intellectual property rights and patents.
We have all kinds of certification, such as Rohs,CE and Reach.


Why choose us?

(1) Various pumps in no MOQ and competitive prices.
(2) Professional website platform and one-to-one online service.
(3) We are factory. And we have our own professional R&D department. We accept the order if you want to customize products or design the product.
(4) Fast delivery for normal order, for the bulk quantity, it depends on your specific requirement.
(5) Products are all covered with warranty and insurance.
