dc low voltage mini 6v 9v 12v 24v diaphragm pump for beauty machine

6v 9v 12v 24v diaphragm pump's demension

Unlabeled tolerance is ± 0.1mm.

Pump Size:102.4*70*40mm

Pump Weight:300g;

Outlet:OD 6.5mm, silicone hose suggestion:ID 5mm

Materials:pump body: PC/PPS, diaphragm: EPDM

Because we use imported ball bearing,the pump’s performance is stable and high.

The membrane is made by EPDM and pump's body is made by special PC/PPS which make pump well endurance and strong chemical resistance.

6v 9v 12v 24v diaphragm pump's details show

Working principle: the rotary motion of the motor turn into the swing of connecting rod which makes the diaphragm up and down motion. In the process of the downward movement of the diaphragm, pump cavity will suck medium through the inlet valve; Upward movement of the diaphragm, pump cavity press out media through the outlet valve. Mechanical transmission parts and pump cavity is isolated by diaphragm. Diaphragm pump does not need oil for auxiliary lubricating, in the process of transmission, extraction and compression of medium.

Advantages:

Compared with the large vacuum pump, it has the following advantages: small size, low noise, low power consumption, easy operation, easy to carry, no maintenance, 24 hours continuous operation, and allows medium to be rich in water vapor. Most importantly, because it is dry, oil free, no vacuum pump oil or lubricating oil, it will not pollute the working medium, do not interfere with the medium analysis and so on. And the price is much cheaper.

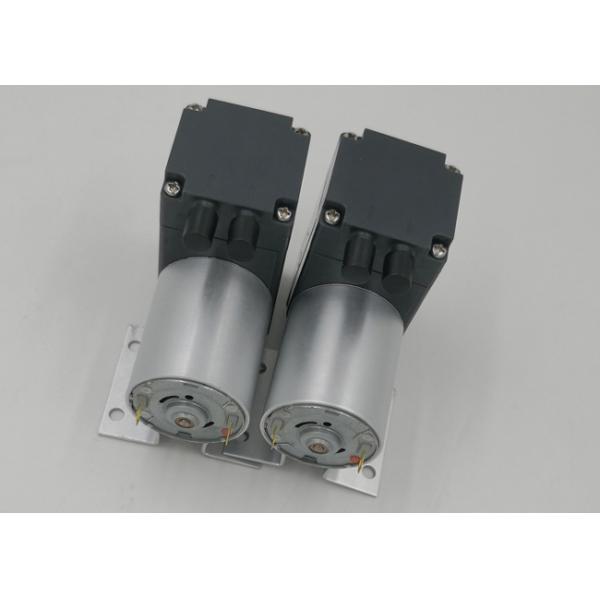

6v 9v 12v 24v diaphragm pump's photo

Our company offers multiple component configurations allowing piston pump to be used for either vacuum operation, pressure operation, or alternating vacuum and pressure operations.The innovative, compact design incorporates leading edge technologies that allow it to operate harder, quieter and longer, reliable, highly efficient.

Its flow can deliver up to 2 L/min and 18L/M.

Usually our pump has 4 kinds of voltage:6V, 9V,12V and 24V .

When you choose pump, you can tell me the pump's voltage you need.

We can do it for you.

You can choose pump according to our model.

In addition,it can be mounted in any position.

6v 9v 12v 24v diaphragm pump's application

Our products can meet the specific needs of different clients. The products are mainly used in medical cosmetology, household electronic appliances, food and beverage, health,instrument,chemical instrumentation. The car and laboratory and other industries. The products are mainly exported to korea, Japan,southeast Asia, Australia, Europe and other countries.

6v 9v 12v 24v diaphragm pump's packing and shipping

Packaging:

CTN/PCS: 60PCS

G.W. : 19.5 KG

DIMENSION : 47 * 31 * 25 CM

Picture’s about the packaging:

1.The stock samples can be sent to you within 3-5 days by international express after received

2.The batch order can be shipped to you in about 30-40days after order confirmation (by air or by

sea)

Our mold department and injection department is very matured.

We do mold and plastic injection for more than 20years.

We devote to 20% profit to R & D department, so we have more than 20 patent in research dc micro pump. Our engineers has over 15years professional experience in dc micro pump.

All products of the company have independent intellectual property rights and patents. We can independently design and produce.

Founded in 1999,yanhua Micro pump Technology company is the leading and biggest manufacturer specializing in various DC micro pump and fluid comprehensive solution in China.

Our sale engineers team have more than 16years customers’ service customer and 15years overseas experience in customer service.
