DC chemical resistance electric piston pump for gas

Remark: Usually our pump has 4 kinds of voltage:6V, 9V,12V and 24V.
When you choose pump, you can tell me the pump's voltage you need.
We can do it for you.

Chemical piston pump's demension

Unlabeled tolerance is ± 0.1mm.

Pump Size:43.6*87*112mm
Pump Weight:600g;
Outlet:OD 8.5mm, silicone hose suggestion:ID 7.5mm
Materials:pump body: PPS, membrane:Teflon , diaphragm: EPDM
Because we use imported ball bearing,the pump’s performance is stable and high.
The membrane is made by Teflon and pump's body is made by PPS which make pump well endurance and strong chemical resisitance.

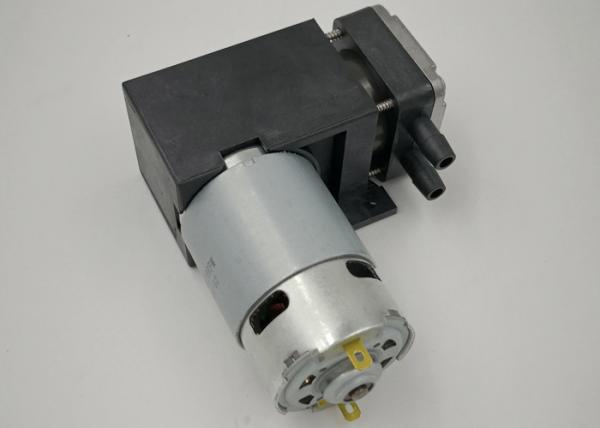

chemical piston pump's details show

1. High temperature performance, good consistency

2. Oil resistance and easy installation

3. DC brush motor

4. Long life span, low heat.

5. Heavy duty work for 24 hours and Continuous operation

6. The key parts are imported

7. Can work for long hours

Chemical piston pump's production process

The company consists of a professional design department, mold department, injection department , assembling workshop.

All products of the company have independent intellectual property rights and patents. We can independently design and produce.

In addition, we can assemble productions in strict accordance with the ISO9001-2015 system. The company has passed ISO9001 certification.

"Feiyinsi" is a registered trademark of our company .Based on the soul purpose "we are implementing the principle of “quality and service is the first” all the time,

taking the highest industry standard to control every procedure.

chemical piston pump's application

The pump can be used in wide range.
1. Electronic products,agriculture,finishing,light industry products
2. Analytic-al instruments
3. Chemical and production engineering
4. Various ancillary equipment

chemical piston pump's information

Working theory:The rotary motion of the motor is converted into the swing of the connecting rod, so as to push the piston to move up

and down in the cylinder. During the downward movement of the piston, the pump chamber suck into the medium through the inlet valve.

Then during upward movement of the piston, the pump chamber push out the medium through the outlet valve to complete a work cycle.

chemical piston pump's packing and shipping

1. We can ship by DHL, UPS, FedEx ,TNT, EMS, HONGKONG post etc.DHL, UPS, FedEx, TNT takes about 3-5 workdays for delivery.

2. And we will help choose the most cost-effective way for you according to your requirement.

3. The tracking number will be available the next day after shipment,then you can check your goods is on the way.

Our services

1. OEM / ODM welcome

2. Competitive advantage mini air pump, mini water pump, mini air valve

3. No MOQ & small order & sample order welcomed

4. We will reply you for your inquiry in 24 hours.

5. After sending, we will track the products for you once every two days, until you get the

products. When you got the goods, test them, and give me a feedback.If you have any

questions about the problem, contact with us, we will offer the solve way for you.

6. 24*7 After sale service

7. We accept Paypal & Trade Assurance

8. With us your money in safe,your business in safe.
