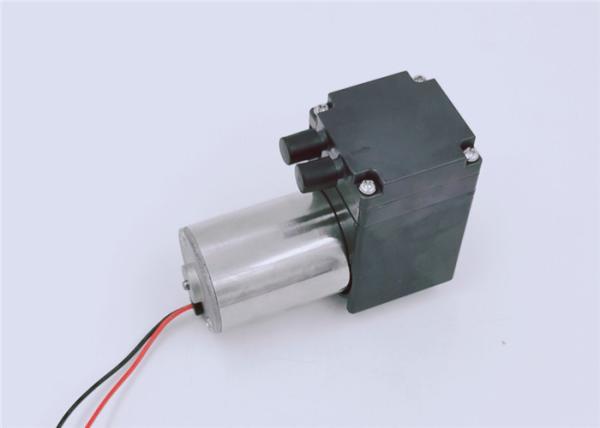

small 12v vacuum pressure diaphragm pump with dc brush motor

mini pump has the following advantages:

compact structure, maintenance free

oil free,low power consumption, corrosion resistance

high pressure,high flow, low noise

long life and other characteristics

Unlabeled tolerance is ± 0.1mm.

Pump Size:102.4*70*40mm

Pump Weight:300g;

Outlet:OD 6.5mm, silicone hose suggestion:ID 5mm

Materials:pump body: PC/PPS, diaphragm: EPDM

Because we use imported ball bearing,the pump’s performance is stable and high.

The membrane is made by EPDM and pump's body is made by special PC/PPS which make pump well endurance and strong chemical resistance.

small 12v vacuum pump's details show

Working principle: the rotary motion of the motor turn into the swing of connecting rod which makes the diaphragm up and down motion. In the process of the downward movement of the diaphragm, pump cavity will suck medium through the inlet valve; Upward movement of the diaphragm, pump cavity press out media through the outlet valve. Mechanical transmission parts and pump cavity is isolated by diaphragm. Diaphragm pump does not need oil for auxiliary lubricating, in the process of transmission, extraction and compression of medium.

small 12v vacuum pump's production process

Our company has a complete production system.
We has our own mold department, injection molding department, production and

assembly department, sample room, R & D department, sales department.
We can independently design and produce pump.

In addition, we can assemble productions in strict accordance with the ISO9001 system.

small 12v vacuum pump's application

The pump can be used in wide range.
1. Electronic products,agriculture,finishing,light industry products
2. Analytic-al instruments
3. Chemical and production engineering
4. Various ancillary equipment

small 12v vacuum pump's packing and shipping

Packaging:

CTN/PCS: 60PCS

G.W. : 19.5 KG

DIMENSION : 47 * 31 * 25 CM

1. The stock samples can be sent to you within 3-5 days by international express after received

2. The batch order can be shipped to you in about 30-40days after order confirmation (by air or by

sea)

The company consists of a professional design department, mold department, injection department , assembling workshop.

All products of the company have independent intellectual property rights and patents. We can independently design and produce. In addition, we can assemble productions in strict accordance with the ISO9001-2015 system. The company has passed ISO9001 certification. "Feiyinsi" is a registered trademark of our company .Based on the soul purpose "we are implementing the principle of “quality and service is the first” all the time, taking the highest industry standard to control every procedure.

Our services

1. OEM / ODM welcome

2. Competitive advantage mini air pump, mini water pump, mini air valve

3. No MOQ & small order & sample order welcomed

4. We will reply you for your inquiry in 24 hours.
