12V / 24V Electric DC Diaphragm Pump Good Consistency Diaphragm Liquid Pump
12V / 24V Electric DC Diaphragm Pump Good Consistency Diaphragm Liquid Pump
12V / 24V Electric DC Diaphragm Pump Good Consistency Diaphragm Liquid Pump
12V / 24V Electric DC Diaphragm Pump Good Consistency Diaphragm Liquid Pump
Specifications
Brand Name :
Feiyinsi
Model Number :
DX512-1605-3700
Certification :
Rohs,Reach
Place of Origin :
China
MOQ :
50pcs
Price :
Negotiable
Payment Terms :
Western Union, , T/T, L/C,paypal
Supply Ability :
3000pcs per day
Packaging Details :
Export carton, carton's dimension:47*31*25cm
usage :
air or vacuum
Theory :
vacuum
Power :
Electric
Application :
pump or transfer air,gas
Pressure :
160kpa pressure
Motor :
DC motor
Model :
DX512-1605-3700
pump's name :
24v diaphragm beauty pump
brush or brushless :
brush
vacuum :
-65kpa
Description

New style portable DC electric 12V/24v diaphragm beauty pump

24v diaphragm beauty pump’s classification

Miniature gas pump is a kind of gas conveying device which is small in volume and take gas as working medium. It is mainly used for gas sampling, gas circulation, vacuum adsorption, vacuum pressure maintaining, pumping, pressurizing and so on. The micro air pump can be divided into micro negative pressure pump, micro vacuum pump, micro gas circulation pump, micro gas sampling pump, micro air pump and air pump according to the working principle. If according to working theory, there are diaphragm type, electromagnetic type, impeller type, piston type, etc. Generally, in medical and health, scientific research, laboratory, environmental protection, instrumentation, chemical industry and other industries, it mainly use micro vacuum pump.

Micro pumps for pumping are divided into two categories: gas sampling pumps and micro vacuum pumps. Although they are usually referred to simply as miniature vacuum pumps without distinction, they are different from each other in a technical point of view and should be chosen with special attention.

24v diaphragm beauty pump's parameter and features

1. High temperature performance, good consistency

2. Oil resistance and easy installation

3. DC brush motor

4. Long life span, low heat.

5. Heavy duty work for 24 hours and Continuous operation

6. The key parts are imported

7. Can work for long hours

Model

DX512-1605-3700

Size(mm)

102.4*70*40

Voltage(V/DC)

6V/9V/12V/24V

Power(W)

6

Free Flow(L/M)

10

Pressure(Kpa)

160

Vacuum(Kpa)

-65

Weight

300


Remark: Usually our pump has 4 kinds of voltage:6V, 9V,12V and 24V.
When you choose pump, you can tell me the pump's voltage you need.
We can do it for you.

Pump Size:102.4*70*40mm

Pump Weight:300g;

Outlet:OD 6.5mm, silicone hose suggestion:ID 5mm

Materials:pump body: PC/PPS, diaphragm: EPDM

Because we use imported ball bearing,the pump’s performance is stable and high.

The membrane is made by EPDM and pump's body is made by special PC/PPS which make pump well endurance and strong chemical resistance.

environmental testing requirements about 24v diaphragm beauty pump

Number Item Test conditions and requirements Remarks
1 Steady-state heat and wet 60%rh High humidity can affect the electrical performance of the motor
2 Temperature Shock The pump was placed at -20 ℃ environment ,after 1h immediately placed at + 70 ℃ ± 3 ℃ environment for 1h.This is for 1cycle. After 50 cycles was returned to room temperature.0.5h later,pumping power test is conducted. The pump should be able to work properly; fasteners should not loose , in working condition pump’s body should not be leakage when block pump’s outlet. too high temperature affect pump’s parameters, life and electrical performance
3 High temperature test Pump is at 70 ℃ ± 3 ℃ environment for 48h. Then take it out. After 0.5hours later, at room temperature power pump. Fastening points should be no loose. The pump can work normally. Its performance and parameters can not change.
4 Low temperature test For 72 hours,pump is at -20 ℃ environment. Then take it out. Power the pump and test it.( when testing the pump,pump’s body can not have ice ). Fastening points should be no loose. The pump can work normally. Its performance and parameters can not change. In too low temperature,motor cannot be started

Electrical Performance about 24v diaphragm beauty pump

Number Item requirements
1

Insulation resistance

10MΩ / between wire and frame measurements , 500VDC / min
2 Dielectric strength 5mA Max/between wire and frame measurements 500 VAC/min

24v diaphragm beauty pump's application


Our products can meet the specific needs of different clients. The products are mainly used in medical cosmetology, household electronic appliances, food and beverage, health,instrument,chemical instrumentation. The car and laboratory and other industries. The products are mainly exported to korea, Japan,southeast Asia, Australia, Europe and other countries.

24v diaphragm beauty pump's packing and shipping

Packaging:

CTN/PCS: 60PCS

G.W. : 19.5 KG

DIMENSION : 47 * 31 * 25 CM

1. The stock samples can be sent to you within 3-5 days by international express after received

2. The batch order can be shipped to you in about 30-40days after order confirmation (by air or by

sea)

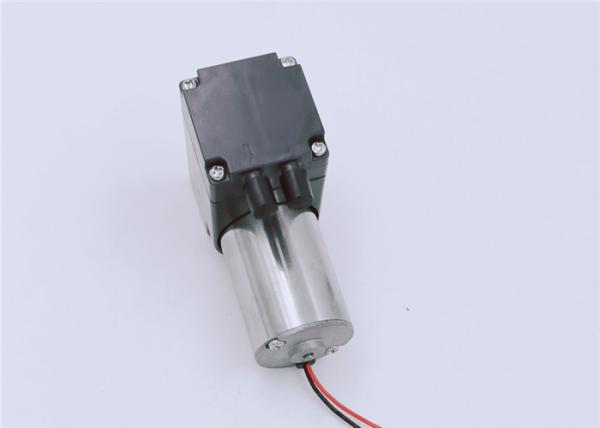

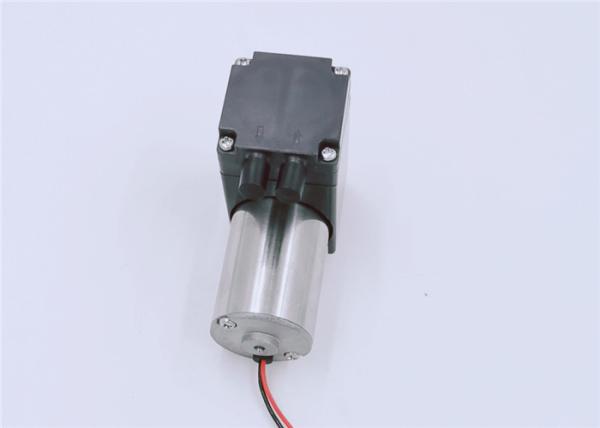

24v diaphragm beauty pump's photo

12V / 24V Electric DC Diaphragm Pump Good Consistency Diaphragm Liquid Pump

Our company offers multiple component configurations allowing piston pump to be used for either vacuum operation, pressure operation, or alternating vacuum and pressure operations.The innovative, compact design incorporates leading edge technologies that allow it to operate harder, quieter and longer, reliable, highly efficient.

Its flow can deliver up to 2 L/min and 18L/M.

Usually our pump has 4 kinds of voltage:6V, 9V,12V and 24V .

When you choose pump, you can tell me the pump's voltage you need.

We can do it for you.

You can choose pump according to our model.

In addition,it can be mounted in any position.

Company Information

12V / 24V Electric DC Diaphragm Pump Good Consistency Diaphragm Liquid Pump

Shenzhen Yanhua Faith Technology Co., Ltd. specializes in manufacturing micro-pumps :

mini vacuum pumps , micro air pump , micro water pump , brushless self-priming pump, brushless air pump, brushless water pump, brushless vacuum pump , brushless pump ; piston pumps; oil-free pump ( oil-less vacuum pump , no oil air pump , no oil air pump , no oil brushless vacuum pump ) ; gear pumps , air pumps, impeller pumps, submersible pumps and other micro pumps.

Certifications

We have obtained the ISO9001 certification, and our products comply with the EU RoHS Directive and REACH regulations, FDA certification. Some of our products have WARS, NSF approval.

Today, Yanhua have 12 production lines and 300 skilled workers, our monthly production capacity is 500,000pcs brushless and brush dc pumps,100,000 piston pumps and 10,000 gear pump and water pump.

RFQ

Q1: Are you a factory or trading company?

A1: We are a factory.

Q2: Can I get a sample? How long it will take to get a sample?

A2: Yes, you can order sample to test and check the quality.

For our usual sample, the sample lead time is about 3-5days.

If special sample, it will take a longer time for design and order materials to do pumps.

All our samples are done by our engineers.

They can according to your needs customize pump for you.

Q3: How can I make the payment?

A3: Payment can be made through T/T, paypal or Western Union.

Q4: Is it OK to print our logo on Pump?

A4: Yes, we could do OEM and print your logo on Pump product.

Q5: What about the package ?

A5: Standard export carton.

Q6.: The use of products have?

A6: The pump can pump various strong acid, alkali and corrosive air etc.

Q7: How product quality and service?

A7: Our pump have CE certificate, quality assured and provide various personalized needs.

Q8: How to proceed an order for Mini Air Pump?

A8: (1) Checking /confirming all details information( include requirement of pump product, payment terms, price,quantity, leading time or others);

(2) Checking/confirming the sample's quality or satisfied result;

(3) Final checking/confirming the price/quantity/leading time/payment terms for first trial order;

(4) We factory arrange the production after receiving the real pump order.
