Specifications
Brand Name :
Feiyinsi
Model Number :
SS524-1503-2500
Certification :
Rohs,Reach
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiable
Payment Terms :
Western Union, , T/T, L/C,paypal
Supply Ability :
3000pcs per day
Delivery Time :
Sample needs 3-5 days, mass production time needs 1-2 weeks, if bulk qty need about 20-25workdays.
Packaging Details :
Export carton, carton's dimension:47*31*25cm
Name :
Mini Water Pump
Feature :
Longer endurance lifetime
Voltage :
24V(V/DC)
Power :
Electric
Standard :
Rohs, Reach
Weight :
310g
Description

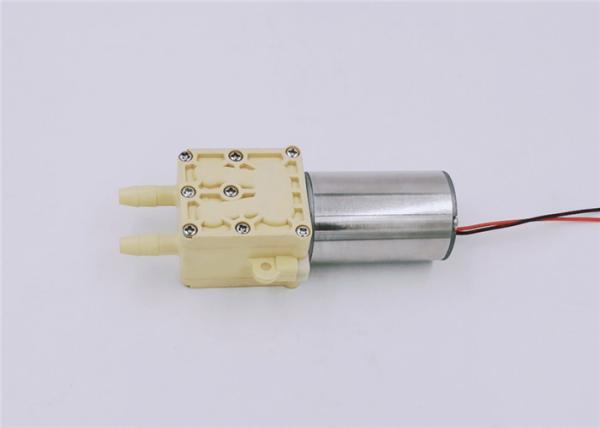

Food Grade DC Mini Water Pump Brushless For Water Dispenser Self Priming

Mini Water Pump introduction

A diaphragm pump (also known as a Membrane pump) is a positive displacement pump that uses a combination of the reciprocating action of a rubber, thermoplastic or teflon diaphragm and suitable valves on either side of the diaphragm (check valve, butterfly valves, flap valves, or any other form of shut-off valves) to pump a fluid.

Mini Water Pump features

  1. Small and powerful
  2. Extreme chemical resistance
  3. Brush and brush-less direct current motor for selection
  4. Dry running, durable and maintenance free
  5. Self-priming and excellent for pressure
  6. Low noise, longer endurance lifetime than other normal membrane pump

Mini Water Pump application

Our products can meet the specific needs of different clients. The products are mainly used in medical cosmetology, household electronic appliances, food and beverage, health,instrument,chemical instrumentation. The car and laboratory and other industries. The products are mainly exported to korea, Japan,southeast Asia, Australia, Europe and other countries.

Mini Water Pump parameters

Model SS524-1503-2500
Size(mm) 125.5*58*36.2
Voltage(DC/V) 24V
No-load current(mA) 170
Load current(mA) 230
Pressure(Kpa) 500-600Kpa
Vacuum(Kpa) 13
Self-priming height(m) 1.5m
Lift(m) 2m
Free Flow rate(L/M) for air 1.4
Weight(G) 310

Mini Water Pump demension

Low Noise Tiny Water Pump , 24V Small DC Motor Water Pump Excellent For Pressure

Mini Water Pump storage

Working Environment

Storage Environment

Transportation Environment

Temperature Range

-30℃~66℃ -30℃~70℃ -30℃~70℃/Smooth

Relative humidity range

60%RH 60%RH 60%RH

Shipment

1. We can ship by DHL, UPS, FedEx ,TNT, EMS, HONGKONG post etc.DHL, UPS, FedEx, TNT takes about 3-5 workdays for delivery.

2. And we will help choose the most cost-effective way for you according to your requirement.

3. The tracking number will be available the next day after shipment,then you can check your goods is on the way.

Delivery

Sample needs 3-5 days, mass production time needs 1-2 weeks, if bulk qty need about 20-25workdays.

Our services

1. OEM / ODM welcome

2. Competitive advantage mini air pump, mini water pump, mini air valve

3. No MOQ & small order & sample order welcomed

4. We will reply you for your inquiry in 24 hours.

5. After sending, we will track the products for you once every two days, until you get the

products. When you got the goods, test them, and give me a feedback.If you have any

questions about the problem, contact with us, we will offer the solve way for you.

6. 24*7 After sale service

7. We accept Paypal & Trade Assurance

8. With us your money in safe,your business in safe.
