DC Diaphragm Pump Application

Electron&electric appliance,food industry (Jucier,vacuum preservation etc)

Medical (oxygenators,sputum suction devices,blood pressure meter)

Digital printing equipment

Lab equiment,chemical analysis

Beauty equipment (cupping)

Automation (parts adsorption)

And so on...

DC Diaphragm Pump parameters

DC Diaphragm Pump features

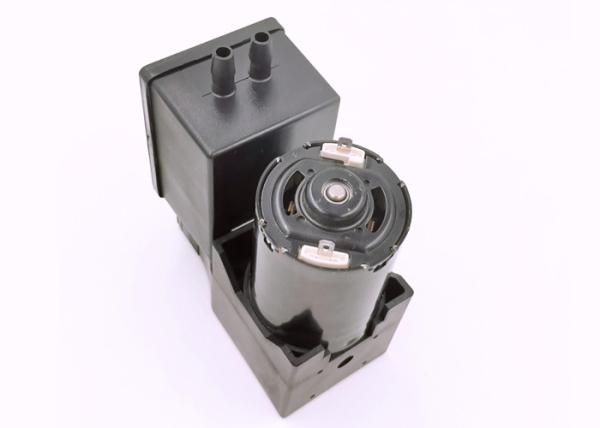

DC brush diaphragm pump

24 hours working under normal condition

Oil-free

Compact size,high negative pressure,high performance price ratio

Maintenance Free

High Weight

Low noise level&vibration and lower power consumption

Can be mounted in any plane

Flow can be adjusted (customized)

Adopt customized industrial raw material,it can work with long time in high or low temperature under harsh condition

DC Diaphragm Pump advantage

• Highest Performance/Size Ratio

Innovative and efficient engineering designs enable the pump to push the performance envelope in a lightweight, compact size.

• Performs Quieter

Optimized head, chamber, and flow path reduce noise without compromising performance.

• Lasts Reliably Longer

Using the advanced diaphragm elastomer and superior brushless motor design sets the highest benchmark for service-free operation that exceeds 10,000 hours.

• Uncontaminated flow

No contamination of the media due to oil-free operation

• Little vibration

Because of leading edge technologies, top quality bearing, superior brushless motor

• High level of gas tightness

Thanks to stress-optimised structured diaphragm, newly-designed valves and sealing systems, precise placement of the pump head

• Extreme chemical resistance

The use of chemically resistant materials optional such as PTFE FKM or other material combinations for the parts which allows the corrosive gas to be pumped.

• Optimal solution for your application

A wide standard range of materials, motors , voltages configurates multiple components system selected

DC Diaphragm Pump storage

FAQ

1.Q:Are you a factory or trading company?

A: We are a factory.

2.Q:Where is your factory located?

A: Our factory is located in Shenzhen City, Gongdong Province, China, one export city.

3.Q:Which countries your products exported to?

A: South America, Western Europe, Oceania, Mid East, Eastern Asia, Central America,

Northern Europe,Domestic Market etc.

4.Q:What the structure of your pumps?

A: The structure is diaphragm with electric motor.

5.Q:How can I get some samples?

A: We are honored to offer you samples.

6.Q:How does your factory do regarding quality control?

A: Quality is priority. AHEAD people always attach great importance to quality controlling from

the very beginning to the very end. Our factory has gotten through CE, ISO, ROHS standard.
