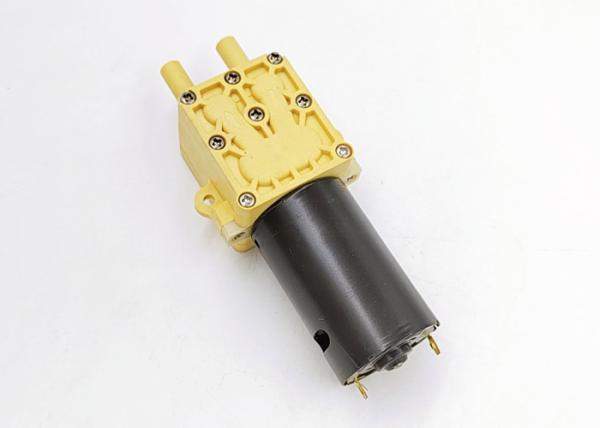

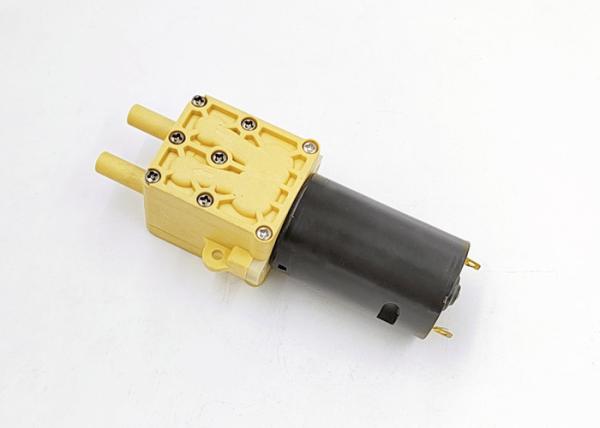

Mini Vacuum 8Kpa Pressure Diaphragm Pump Electric Power DC Motor
Mini Vacuum 8Kpa Pressure Diaphragm Pump Electric Power DC Motor
Mini Vacuum 8Kpa Pressure Diaphragm Pump Electric Power DC Motor
Mini Vacuum 8Kpa Pressure Diaphragm Pump Electric Power DC Motor
Specifications
Brand Name :
Feiyinsi
Model Number :
SS512-202-2900
Certification :
Rohs,Reach
Place of Origin :
China
MOQ :
50pcs
Price :
Negotiable
Payment Terms :
Western Union, , T/T, L/C,paypal
Supply Ability :
3000pcs per day
Packaging Details :
Export carton, carton's dimension:47*31*25cm
Basic Materials :
PC/PPS/Nylon, EPDM,hardware
product name :
mini diaphragm pump
No-load current(mA) :
310
The load current(mA) :
350
Rated flow (L/M) :
1.2L/M
Vacuum(Kpa) :
8Kpa
Model :
SS512-202-2900
voltage :
6V, 9V,12V and 24V
Description

Mini Vacuum 8Kpa Pressure Diaphragm Pump Electric Power DC Motor

Transfer 210kpa Pressure 12 Volt Mini Vacuum Pump Electric Power DC Motor

The medium temperature of the micro pump

According to the temperature of the medium which pass through the pump, choose the ordinary type or the high temperature type.

Working principle: the rotary motion of the motor turn into the swing of connecting rod which makes the diaphragm up and down motion. In the process of the downward movement of the diaphragm, pump cavity will suck medium through the inlet valve; Upward movement of the diaphragm, pump cavity press out media through the outlet valve. Mechanical transmission parts and pump cavity is isolated by diaphragm. Diaphragm pump does not need oil for auxiliary lubricating, in the process of transmission, extraction and compression of medium.

Pressure Diaphragm Pump parameters

Model No-load current(mA) The load current(mA) Rated flow (L/M) Vacuum(Kpa) Self-priming height(M) lift
(m)
size
(mm)
weight
(g)
SS512-1502-1500 56 110 1 15 >1 5 128.8*54*42 375
SS512-15B-2000 120 180 1.1 14 >1 5 128.8*54*42 375
SS512-101-3000 140 200 1.15 8 >1 5 128.8*54*42 375
SS512-202-2900 310 350 1.2 8 >1 5 128.8*54*42 375
SS524-15A-2500 70 110 1.4 13 >1 5 128.8*54*42 375
SS512-15B-2500 300 420 1.7 13 >1 5 128.8*54*42 375
SS524-202-3000 150 220 2 12 >1 5 128.8*54*42 375
SS512-20A-2800 180 450 2.1 25 >1 5 128.8*54*42 375
SS512-203-2700 220 550 2.2 25 >1 5 128.8*54*42 375
SS524-203-2900 230 570 2.3 25 >1 5 128.8*54*42 375
SS512-203-3000 220 470 2.4 25 >1 5 128.8*54*42 375
SS524-202-3700 120 340 2.5 20 >1 5 128.8*54*42 375
SS512-203-2900 130 540 2.6 25 >1 5 128.8*54*42 375
SS512-203-3700 250 750 2.7 25 >1 5 128.8*54*42 375
SS512-204-3700 700 1.2 3 18 >1 5 128.8*54*42 375
SS555 brush series water pump has 4 kinds of voltage:6V, 9V,12V and 24V
Above paramter just for your reference

Our company offers multiple component configurations allowing piston pump to be used for either vacuum operation, pressure operation, or alternating vacuum and pressure operations.The innovative, compact design incorporates leading edge technologies that allow it to operate harder, quieter and longer, reliable, highly efficient.

Its flow can deliver up to 2 L/min and 18L/M.

Usually our pump has 4 kinds of voltage:6V, 9V,12V and 24V .

When you choose pump, you can tell me the pump's voltage you need.

We can do it for you.

You can choose pump according to our model.

In addition,it can be mounted in any position.

User Instructions

1. will not guarantee the products if the application of our products are exceeded the limitation which is specified on this specification.

2. In case of changes of the specification specified on this document. A written notice is requested in advance.

3. there is any data or related documentation different from this data sheet.This data sheet is the principle reference.

4. Please do not use it in the environment of corrosive gas or liquid or any detrimental gas. 5.While the motor is in operation,please do not lock the motor intentionally for a long periods,since the continuous stoppage will result in overheat and thus burnt out the motor.
