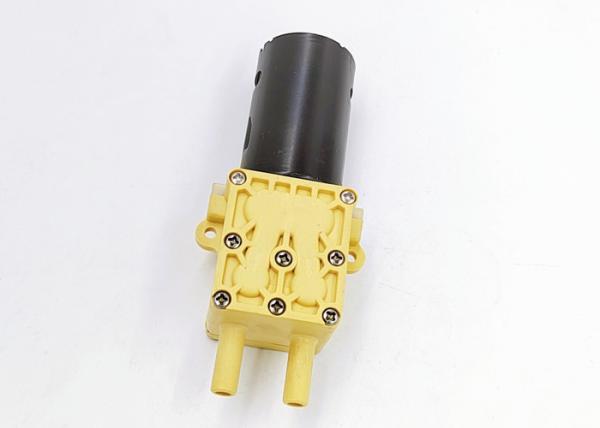

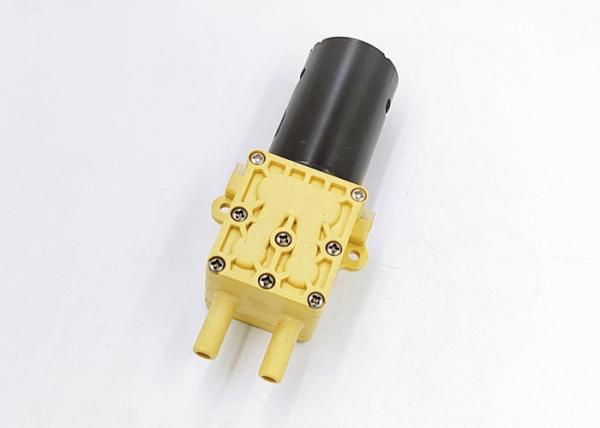

Small High Flow 12 Volt Vacuum Diaphragm Pump Low Power Consumption
Small High Flow 12 Volt Vacuum Diaphragm Pump Low Power Consumption
Small High Flow 12 Volt Vacuum Diaphragm Pump Low Power Consumption
Small High Flow 12 Volt Vacuum Diaphragm Pump Low Power Consumption
Specifications
Brand Name :
Feiyinsi
Model Number :
SS512-203-2700
Certification :
Rohs,Reach
Place of Origin :
China
MOQ :
50pcs
Price :
Negotiable
Payment Terms :
Western Union, , T/T, L/C,paypal
Supply Ability :
3000pcs per day
Packaging Details :
Export carton, carton's dimension:47*31*25cm
Basic Materials :
PC/PPS/Nylon, EPDM,hardware
product name :
mini diaphragm pump
No-load current(mA) :
220
The load current(mA) :
550
Rated flow (L/M) :
2.2 L/M
Motor :
DC motor
Model :
SS512-203-2700
voltage :
6V, 9V,12V and 24V
Description

Small High Flow 12 Volt Vacuum Diaphragm Pump Low Power Consumption

Small High Flow Vacuum Pressure Diaphragm Pump 12 Volt Low Power Consumption


12 / 24v diaphragm pumps's parameter and features

Low noise
Long lifetime
Highest performance
Extreme chemical resistance
Uncontaminated flow
High level of gas tightness
Optimal solution for your application

Pressure Diaphragm Pump parameters

Model No-load current(mA) The load current(mA) Rated flow (L/M) Vacuum(Kpa) Self-priming height(M) lift
(m)
size
(mm)
weight
(g)
SS512-1502-1500 56 110 1 15 >1 5 128.8*54*42 375
SS512-15B-2000 120 180 1.1 14 >1 5 128.8*54*42 375
SS512-101-3000 140 200 1.15 8 >1 5 128.8*54*42 375
SS512-202-2900 310 350 1.2 8 >1 5 128.8*54*42 375
SS524-15A-2500 70 110 1.4 13 >1 5 128.8*54*42 375
SS512-15B-2500 300 420 1.7 13 >1 5 128.8*54*42 375
SS524-202-3000 150 220 2 12 >1 5 128.8*54*42 375
SS512-20A-2800 180 450 2.1 25 >1 5 128.8*54*42 375
SS512-203-2700 220 550 2.2 25 >1 5 128.8*54*42 375
SS524-203-2900 230 570 2.3 25 >1 5 128.8*54*42 375
SS512-203-3000 220 470 2.4 25 >1 5 128.8*54*42 375
SS524-202-3700 120 340 2.5 20 >1 5 128.8*54*42 375
SS512-203-2900 130 540 2.6 25 >1 5 128.8*54*42 375
SS512-203-3700 250 750 2.7 25 >1 5 128.8*54*42 375
SS512-204-3700 700 1.2 3 18 >1 5 128.8*54*42 375
SS555 brush series water pump has 4 kinds of voltage:6V, 9V,12V and 24V
Above paramter just for your reference

Our services

1. OEM / ODM welcome

2. Competitive advantage mini air pump, mini water pump, mini air valve

3. No MOQ & small order & sample order welcomed

4. We will reply you for your inquiry in 24 hours.

5. After sending, we will track the products for you once every two days, until you get the

products. When you got the goods, test them, and give me a feedback.If you have any

questions about the problem, contact with us, we will offer the solve way for you.

6. 24*7 After sale service

7. We accept Paypal & Trade Assurance

8. With us your money in safe,your business in safe.

User Instructions

1. will not guarantee the products if the application of our products are exceeded the limitation which is specified on this specification.

2. In case of changes of the specification specified on this document. A written notice is requested in advance.

3. there is any data or related documentation different from this data sheet.This data sheet is the principle reference.

4. Please do not use it in the environment of corrosive gas or liquid or any detrimental gas. 5.While the motor is in operation,please do not lock the motor intentionally for a long periods,since the continuous stoppage will result in overheat and thus burnt out the motor.
