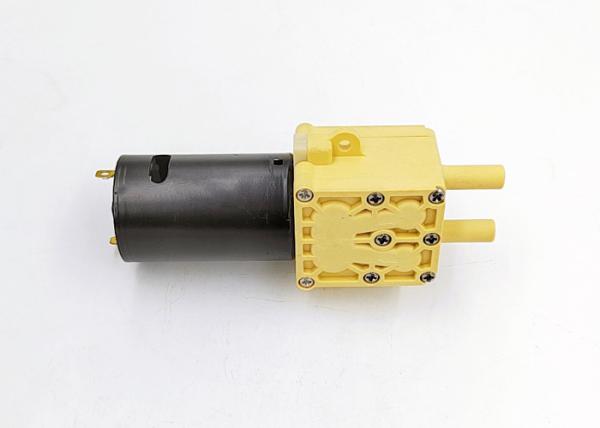

Load Current 350mA Pressure Diaphragm Pump DC motor 6V 9V 12V 24V
Load Current 350mA Pressure Diaphragm Pump DC motor 6V 9V 12V 24V
Load Current 350mA Pressure Diaphragm Pump DC motor 6V 9V 12V 24V
Load Current 350mA Pressure Diaphragm Pump DC motor 6V 9V 12V 24V
Specifications
Brand Name :
Feiyinsi
Model Number :
SS512-202-2900
Certification :
Rohs,Reach
Place of Origin :
China
MOQ :
50pcs
Price :
Negotiable
Payment Terms :
Western Union, , T/T, L/C,paypal
Supply Ability :
3000pcs per day
Packaging Details :
Export carton, carton's dimension:47*31*25cm
Basic Materials :
PC/PPS/Nylon, EPDM,hardware
product name :
High Pressure Diaphragm Pump
No-load current(mA) :
310
The load current(mA) :
350
Rated flow (L/M) :
1.2L/M
Motor :
DC motor
Model :
SS512-202-2900
voltage :
6V, 9V,12V and 24V
Description

Load Current 350mA Pressure Diaphragm Pump DC Motor 6V 9V 12V 24V

1.2L/M Free Flow Rate DC Pressure Diaphragm Pump Brush Vacuum Cupping Type

pressure diaphragm mini massage pump with high pressure and vacuum

Model No-load current(mA) The load current(mA) Rated flow (L/M) Vacuum(Kpa) Self-priming height(M) lift
(m)
size
(mm)
weight
(g)
SS512-1502-1500 56 110 1 15 >1 5 128.8*54*42 375
SS512-15B-2000 120 180 1.1 14 >1 5 128.8*54*42 375
SS512-101-3000 140 200 1.15 8 >1 5 128.8*54*42 375
SS512-202-2900 310 350 1.2 8 >1 5 128.8*54*42 375
SS524-15A-2500 70 110 1.4 13 >1 5 128.8*54*42 375
SS512-15B-2500 300 420 1.7 13 >1 5 128.8*54*42 375
SS524-202-3000 150 220 2 12 >1 5 128.8*54*42 375
SS512-20A-2800 180 450 2.1 25 >1 5 128.8*54*42 375
SS512-203-2700 220 550 2.2 25 >1 5 128.8*54*42 375
SS524-203-2900 230 570 2.3 25 >1 5 128.8*54*42 375
SS512-203-3000 220 470 2.4 25 >1 5 128.8*54*42 375
SS524-202-3700 120 340 2.5 20 >1 5 128.8*54*42 375
SS512-203-2900 130 540 2.6 25 >1 5 128.8*54*42 375
SS512-203-3700 250 750 2.7 25 >1 5 128.8*54*42 375
SS512-204-3700 700 1.2 3 18 >1 5 128.8*54*42 375
SS555 brush series water pump has 4 kinds of voltage:6V, 9V,12V and 24V
Above paramter just for your reference

brush vacuum cupping pump's parameter and features

1. Uncontaminated flow.

2. Non-metallic construction.

3. Oil-Free, Corrosion resistant

4. Long life,High efficiency

5. Compact size, Low Weight

6. Low noise level&vibration

7. Maintenance free

8. High level of water tightness thanks to the closed

diaphragm surface and special sealing system.

9. Can operate in any installed position.

Application of Pressure Diaphragm Pump

1. breast pump

2. Beauty equipment

3. Vacuum packaging machine

4. Double-headed electric breast pump

5. Portable ozone sterilizer

6. Vacuum sealing machine

7. Beauty massage
