Double Lumen Herb Grinder Machine 2840r/min Hammer Milling 26.5Kg
Double Lumen Herb Grinder Machine 2840r/min Hammer Milling 26.5Kg
Specifications
Brand Name :
Dade
Model Number :
DF-20A
Certification :
ISO9001 Quality Management System Certification
Place of Origin :
china
MOQ :
1 unit
Price :
Discussion
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
300 units
Delivery Time :
5-8 work days
Packaging Details :
Packaging dimensions: 42 * 31.5 * 69.5CM. Weight 32Kg
Product Name :
Dual stage high-efficiency desktop continuous feeding crusher
Name :
Herb Grinder Machine
Model :
DF-20A
Voltage :
220V (customizable to 110V)
Power :
2500 watts
Yield :
1-20kg/h
Fineness :
60-180 mesh
Speed :
2840r/min
Net weight :
26.5Kg
Description

Double Lumen Herb Grinder Machine Hammer Milling

Product Introduction:

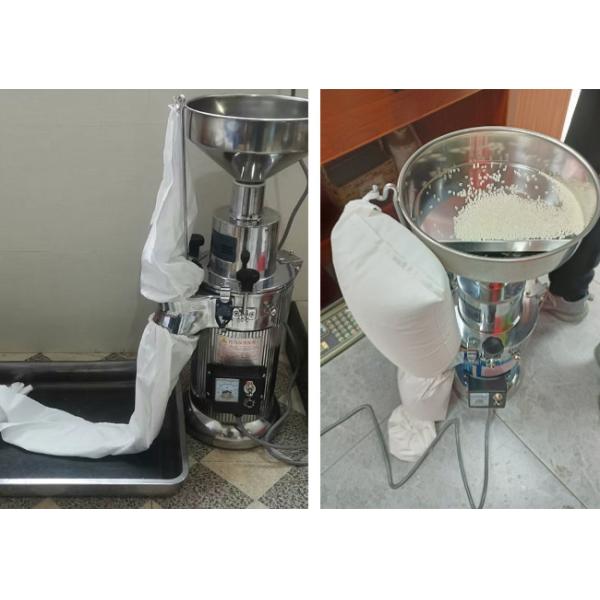

This machine belongs to continuous feeding operation, which means feeding on the top and discharging powder on the bottom. The machine can work continuously for a long time. Dry Chinese medicinal materials can be processed into powder, and the thickness of the powder can be adjusted.

Machine working principle:
This machine is driven by an electric motor to rotate six grinding hammers at high speed. The machine is equipped with two grinding chambers. When we input the materials that need to be processed, the materials enter the first grinding chamber. After being crushed into coarse particles, they automatically enter the second grinding chamber for further processing into fine powder. The powder passes through the mesh screen and enters the cloth bag.

Function:
This machine is suitable for processing non oily and non viscous materials into powder, especially suitable for processing dry and hard Chinese medicinal materials.

Applicable scope:
Suitable for use in traditional Chinese medicine shops, traditional Chinese medicine restaurants, and places where various Chinese medicinal materials are processed on site.

Parameter table:

Product Name

Dual stage high-efficiency desktop continuous feeding crusher

Model

DF-20A

Voltage

220V (customizable to 110V)

Power

2500 watts

Yield

1-20kg/h

Fineness

60-180 mesh

Speed

2840r/min

Net weight

26.5Kg

After sales time:

Free one-year warranty.

Design structure:

Double Lumen Herb Grinder Machine 2840r/min Hammer Milling 26.5Kg

Application scenario:

Double Lumen Herb Grinder Machine 2840r/min Hammer Milling 26.5Kg
