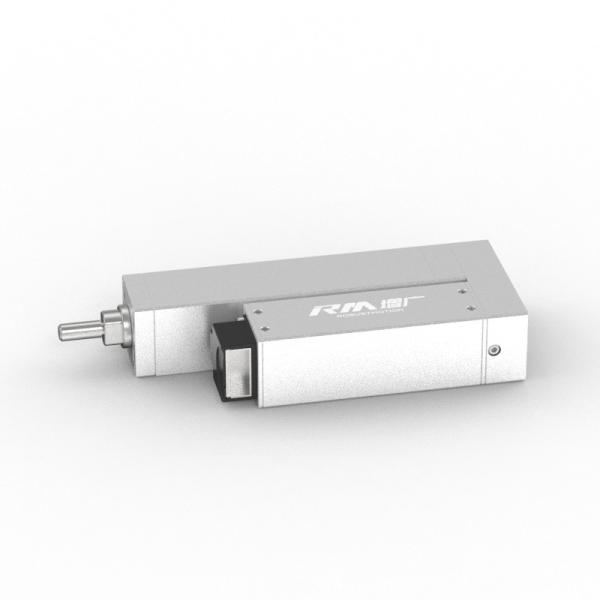

Miniature Electric Linear Actuator
Miniature Electric Linear Actuator
Specifications
Brand Name :
RobustMotion®
Model Number :
RM-WRPLA-11-50-2-S0028
Certification :
CE, RoHs
Place of Origin :
China
MOQ :
2 pieces/sets
Price :
Negotiable
Payment Terms :
Bank transfer
Supply Ability :
TBC
Delivery Time :
5-15work days
Stroke (mm) :
50
Lead (mm) :
2
Max.speed （mm/s） :
100
Max. Pushing Force1（N） :
300
Max. load Capacity Horizontal (kg） :
6
Max. load Capacity Vertical :
0.5
Repeat Positioning Accuracy (mm) :
±0.02
Permissible Load Torque (N.m) :
MR: 9.11, MP: 13.67, MY:13.67
Compatible Controllers :
RM-C-20, RM-CEP-20, RM-CEU, RM-CEM
Rated Voltage (V) :
DC24±10%
Rated Current (A) :
2
Weight (kg) :
1.6
Usage Environment :
0~40℃、< 85%RH ( Without condensation)
Protection Class IP :
IP40
Outgoing Line Method :
Adapter Wiring
Size :
Miniature
Description

Electric linear actuator with wide frame structure, capable of adaptive pushing RM-WRPLA-11-50-2-S0028

Wide platform-type linear actuator (RM-WRPLA-11-50-2-S0028) is a low profile linear actuator that has a huge working platform, far beyond the ordinary electric push rods. This enables it to withstand higher lateral loads, offer more spacious working space. Its platform design allows users to easily install various operations and devices on it, and ensure its stability and durability. This actuator is suitable for the translation or handling of large-scale workpieces, such as automated assembly lines, material handling systems, workpiece clamping and positioning, etc.

Specifications
Stroke (mm): 50
Lead (mm): 2
Max.speed (mm/s): 100
Max. Pushing Force1(N): 300

Max. Load Capacity Horizontal (kg): 6
Max. Load Capacity Vertical: 0.5
Repeat Positioning Accuracy (mm): ±0.02
Permissible Load Torque (N.m): MR: 9.11, MP: 13.67, MY:13.67
Compatible Controllers: RM-C-20, RM-CEP-20, RM-CEU, RM-CEM
Rated Voltage (V): DC24±10%
Rated Current (A): 2
Weight (kg): 1.6
Usage Environment: 0~40℃,< 85%RH ( Without Condensation)
Protection Class IP: IP40
Outgoing Line Method: Adapter Wiring
Types Of Screws: Ball Screw
