RobustMotion RM-RLA High Speed Electric Cylinder, Folding Structure,Positioning Repeatability. ±0.02mm
RobustMotion RM-RLA High Speed Electric Cylinder, Folding Structure,Positioning Repeatability. ±0.02mm
Specifications
Brand Name :
RobustMotion®
Model Number :
RM-RLA-11-150-2-R-H-ITG
Certification :
CE, RoHs
Place of Origin :
China
MOQ :
2 pieces/sets
Price :
Negotiable
Payment Terms :
Bank transfer
Supply Ability :
TBC
Delivery Time :
5-15work days
Stroke (mm) :
150
Lead (mm) :
2
Max.speed（mm/s） :
100
Max. Pushing Force（N） :
300
Maximum Vertical Load Mass (kg） :
1.5
Repeat Positioning Accuracy (mm) :
±0.02
Pusher Rotation Accuracy（° ） :
±1.5
Bus Control :
Modbus RTU
Interface :
Input 2 Points(NPN), Output 3 Points(NPN)
Rated Voltage(V) :
DC24±10%
Rated Current (A) :
2
Weight (kg） :
1.3
Usage Environment :
0~40℃、< 85%RH ( Without condensation)
Protection Class IP :
IP40
Motor Direction :
Right Side
Keywords :
High Speed Electric Cylinder
Description

Folding Electric Linear Actuator that Responds Rapidly and Adapts to Pushing Force RM-RLA-11-150-2-R-H-ITG

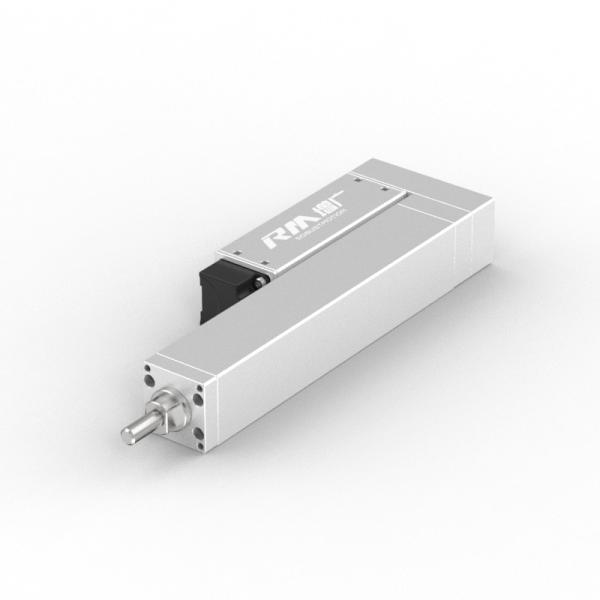

The Folding Electric Linear Actuator (ITG) (RM-RLA-11-150-2-R-H-ITG) is a push rod that features a collapsible structure and an integrated controller. It offers several advantages, including compact size, sleek design, and flexible and efficient operation. With a pushing stroke of 150mm, the motor is positioned on the right side, and the wiring is done horizontally. This actuator is capable of fast response, adaptive pushing, and reliable completion of tasks such as fitting, pressing, correcting, and linear transmission of workpieces. By utilizing this actuator, automated production can experience improved efficiency and quality.

Stroke (mm): 150
Lead (mm): 2
Max.speed(mm/s): 100
Max. Pushing Force(N): 300
Maximum Vertical Load Mass (kg): 1.5
Repeat Positioning Accuracy (mm): ±0.02
Pusher Rotation Accuracy(° ): ±1.5
Control Method Bus: Modbus RTU
Interface: Input 2 Points(NPN), Output 3 Points(NPN)
Rated Voltage(V): DC24±10%
Rated Current (A): 2
Weight (kg): 1.3
Usage Environment: 0~40℃,< 85%RH ( Without Condensation)
Protection Class IP: IP40
RobustMotion RM-RLA High Speed Electric Cylinder, Folding Structure,Positioning Repeatability. ±0.02mm
