RobustMotion Servo Electric Cylinder, Electric Linear Rod Actuators, Rapid and Precise Linear Motion in Pressing Applications
RobustMotion Servo Electric Cylinder, Electric Linear Rod Actuators, Rapid and Precise Linear Motion in Pressing Applications
Specifications
Brand Name :
RobustMotion®
Model Number :
RM-SLA-08-50-1-S0015
Certification :
CE, RoHs
Place of Origin :
China
MOQ :
2 pieces/sets
Price :
Negotiable
Payment Terms :
Bank transfer
Supply Ability :
TBC
Delivery Time :
5-15work days
Stroke (mm) :
50
Lead (mm) :
1
Max.speed（mm/s） :
50
Max. Pushing Force（N） :
55
Maximum Vertical Load Mass (kg) :
1
Repeat Positioning Accuracy (mm) :
±0.02
Pusher Rotation Accuracy（° ） :
±1.5
Compatible Controllers :
RM-C-20, RM-CEP-20, RM-CEU, RM-CEM
Rated Voltage (V) :
DC24±10%
Rated Current (A) :
2
Weight (kg) :
0.5
Usage Environmen :
0~40℃、< 85%RH ( Without condensation)
Protection Class IP :
IP40
Outgoing Line Method :
Adapter Wiring
Description

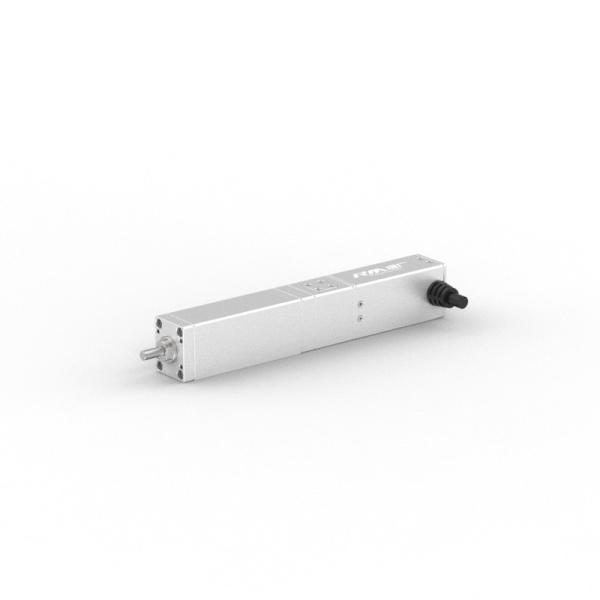

High Repeat Accuracy Straight Electric Linear Actuator RM-SLA-08-50-1-S0015

Straight Linear Actuator (RM-SLA-08-50-1-S0015) is an electric actuator that can achieve linear motion and position control by controlling the rotation speed and direction of the motor. Its push stroke is 50mm, and its wire outlet is a transfer wire with a wire length of 1.5m. It is used for completing the tasks of fitting, pressing, correcting and linear transmission of workpieces in automated production lines, by linear pushing, pressing and other actions. It has the advantages of high repeatability, adaptive pushing, pushing confirmation, large output range, etc.

Specifications
Stroke (mm): 50
Lead (mm): 1
Max.speed(mm/s): 50
Max. Pushing Force(N): 55
Maximum Vertical Load Mass (kg): 1
Repeat Positioning Accuracy (mm): ±0.02
Pusher Rotation Accuracy(° ): ±1.5
Compatible Controllers: RM-C-20, RM-CEP-20, RM-CEU, RM-CEM
Rated Voltage (V): DC24±10%
Rated Current (A): 2
Weight (kg): 0.5
Usage Environmen: 0~40℃,< 85%RH ( Without Condensation)
Protection Class IP: IP40
Outgoing Line Method: Adapter Wiring
