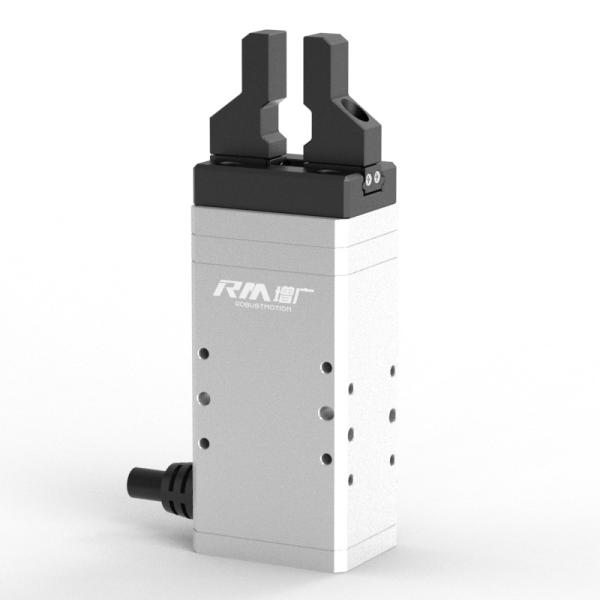

Micro Electric Gripper Actuator Flexible Gripping Drop Detection
Micro Electric Gripper Actuator Flexible Gripping Drop Detection
Specifications
Brand Name :
RobustMotion®
Model Number :
RM-MGBD-11-20-S0028-ITG
Certification :
CE, RoHs
Place of Origin :
China
MOQ :
2 pieces/sets
Price :
Negotiable
Payment Terms :
Bank transfer
Supply Ability :
TBC
Delivery Time :
5-15work days
Outgoing Line Method :
Adapter Wiring
Stroke(mm) :
20
Max.Gripping Force (N) :
15
Repeat Positioning Accuracy (mm) :
±0.02
Max.Opening/Closing Time (s) :
0.5
Backlash (mm) :
< 0.05 ( Single-Side)
Permissible Load Torque(N.m) :
MR: 4.6, MP: 1.9, MY:2.7
BUS Control :
Modbus RTU
Interface :
Input 2 Points(NPN), Output 3 Points(NPN)
Rated Voltage (V) :
DC24±10%
Rated Current(A) :
2
Weight (kg） :
0.5
Usage Environment :
0~40℃、< 85%RH ( Without condensation)
Protection Class IP :
IP40
Description

Electric Gripper Actuator Flexible Gripping Drop Detection Small-force Level RM-MGBD-11-20-S0028-ITG

The RM-MGBD-11-20-S0028-ITG is a compact, precise, flexible, drop-detecting, stable and reliable miniature gripper with built-in controller, which is able to open and close in parallel and is suitable for clamping and lifting small workpieces of various sizes and materials. It has an opening and closing stroke of 20mm, a maximum clamping force of 15N, an adapter cable and a cable length of 2.8m.

RM-MGBD adopts dual-jaw design, realising simultaneous clamping of objects and improving the stability and reliability of gripping. The user can freely set the force, speed and position parameters through the RM control software platform to adapt to different object sizes and shapes, and the RM-MGBD's compact size and flexible operation make it suitable for micro-assembly, electronics manufacturing and other fields that require high-precision gripping.

Specifications
Outgoing Line Method:Adapter Wiring
Stroke(mm): 20
Max.Gripping Force (N): 15
Repeat Positioning Accuracy (mm): ± 0.02
Max.Opening/Closing Time (s): 0.5
Backlash (mm): < 0.05 ( Single-Side)
Permissible Load Torque(N.m): MR: 4.6, MP: 1.9, MY: 2.7
BUS Control: Modbus RTU
Interface: Input 2 Points(NPN), Output 3 Points( NPN)
Rated Voltage (V): DC24± 10%
Rated Current(A): 2
Weight (kg): 0.5
Usage Environment: 0~40℃ ,< 85% RH ( Without Condensation)
Protection Class IP: IP40

1.The data is sourced from the actual test results in the 25℃ laboratory.Notes:
2.The drawings provided in this Catalogue are for the default standard model. If you require other models with different motor directions, outlet directions, or outlet methods, please contact your local sales representative to obtain the drawings for the optional models.
