RobustMotion RM-RPLA High-Precision Electric Linear Actuator for Industrial Automation
RobustMotion RM-RPLA High-Precision Electric Linear Actuator for Industrial Automation
Specifications
Brand Name :
RobustMotion®
Model Number :
RM-RPLA-11-50-2-L-S0028-ITG
Certification :
CE, RoHs
Place of Origin :
China
MOQ :
2 pieces/sets
Price :
Negotiable
Payment Terms :
Bank transfer
Supply Ability :
TBC
Delivery Time :
5-15work days
Stroke (mm） :
50
Lead (mm) :
2
Max.speed（mm/s） :
100
Max. Pushing Force（N） :
300
Max. load Capacity Horizontal :
3
Capacity Vertical :
1.5
Repeat Positioning Accuracy (mm) :
±0.02
Permissible Load Torque (N.m) :
MR: 7.9, MP:4.0, MY:5.8
BUS Control :
Modbus RTU
Interface :
Input 2 Points(NPN), Output 3 Points(NPN)
Rated Voltage (V) :
DC24±10%
Rated Current (A) :
2
Weight (kg) :
0.9
Usage Environment :
0~40℃、< 85%RH ( Without condensation)
Protection Class IP :
IP40
Motor Direction :
Left Side
Outgoing Line Method :
Adapter Wiring
Description

Sturdy Foldable Platform Industrial Linear Actuator RM-RPLA-11-50-2-L-S0028-ITG

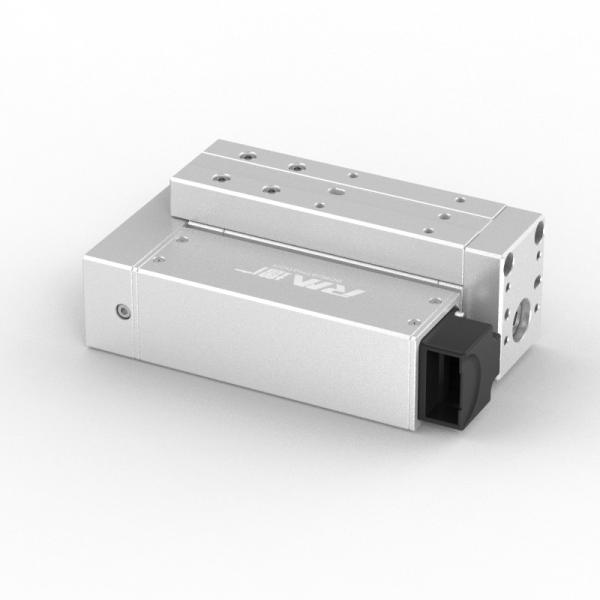

The Folding Platform-Type Linear Actuator (ITG) (RM-RPLA-11-50-2-L-S0028-ITG) is a precision folding push rod with a platform-type working platform and an integrated controller. It features a 50mm push stroke and a left motor direction. This actuator exhibits excellent load-bearing capacity and stability, while boasting a compact and small form factor that allows for flexible integration. With its fast response, reliable operation, high repeatability, adaptive push capability, and high rigidity, this actuator is ideally suited for a wide range of applications in automated production lines. It performs tasks such as linear push, pressing, correcting, and linear transmission to facilitate workpiece fitting, pressing, and other operations.

Specifications
Stroke (mm): 50
Lead (mm): 2
Max.speed(mm/s): 100
Max. Pushing Force(N): 300
Max. Load Capacity Horizontal: 3
Capacity Vertical: 1.5
Repeat Positioning Accuracy (mm): ±0.02
Permissible Load Torque (N.m): MR: 7.9, MP:4.0, MY:5.8
BUS Control: Modbus RTU
Interface: Input 2 Points(NPN), Output 3 Points(NPN)
Rated Voltage (V): DC24±10%
Rated Current (A): 2
Weight (kg): 0.9
Usage Environment: 0~40℃,< 85%RH ( Without Condensation)
Protection Class IP: IP40
Motor Direction: Left Side
Outgoing Line Method: Adapter Wiring
