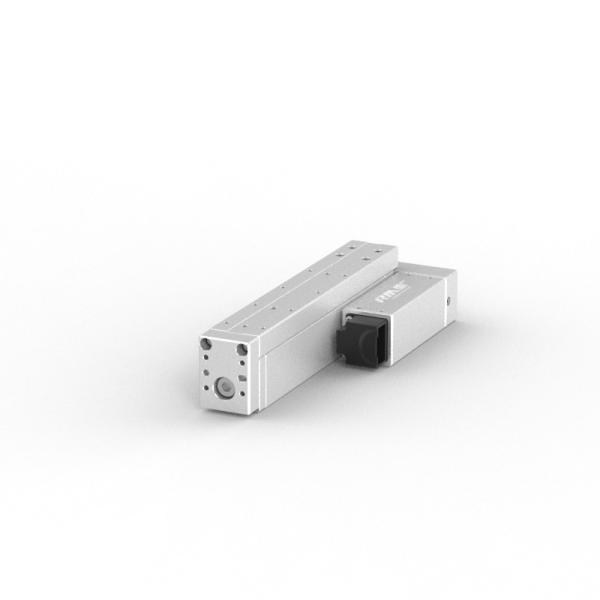

RM-RPLA Folding Platform-type Linear Actuator: Industrial Grade with High Load and Rapid Response
RM-RPLA Folding Platform-type Linear Actuator: Industrial Grade with High Load and Rapid Response
Specifications
Brand Name :
RobustMotion®
Model Number :
RM-RPLA-11-150-2-L-H
Certification :
CE, RoHs
Place of Origin :
China
MOQ :
2 pieces/sets
Price :
Negotiable
Payment Terms :
Bank transfer
Supply Ability :
TBC
Delivery Time :
5-15work days
Stroke (mm） :
150
Lead (mm) :
2
Max.speed（mm/s） :
100
Max. Pushing Force（N） :
300
Max. load Capacity Horizontal :
3
Capacity Vertical :
1.5
Repeat Positioning Accuracy (mm) :
±0.02
Permissible Load Torque (N.m) :
MR: 7.9, MP:4.0, MY:5.8
Compatible Controllers :
RM-C-20, RM-CEP-20, RM-CEU, RM-CEM
Rated Voltage (V) :
DC24±10%
Rated Current (A) :
2
Weight (kg) :
1.3
Usage Environment :
0~40℃、< 85%RH ( Without condensation)
Protection Class IP :
IP40
Motor Direction :
Left Side
Outgoing Line Method :
Horizontal Wiring
Description

Foldable Platform-focused Industrial Linear Actuator Versatile Thrusting RM-RPLA-11-150-2-L-H

Folding platform-type linear actuator (RM-RPLA-11-150-2-L-H) is a folding push rod with a platform-type working platform, with high load-bearing capacity and stability, a push stroke of 150mm, a motor direction of left, and a horizontal wire direction. It also has a more compact and elegant volume, which can be flexibly configured. It leverages the advantages of fast response, stable and reliable, high repeatability, adaptive push, high rigidity, etc., and is widely applicable to automated production lines, through linear push, press and other actions, to achieve the workpiece fitting, pressing, correcting, linear transmission and other operations.

This actuator offers strong load-bearing capacity and stability, while also being compact and small in size, allowing for flexible configuration options. It takes advantage of its fast response, stability, high repeatability, adaptive pushing capabilities, and high rigidity.

The actuator is widely applicable to automated production lines, where it can perform tasks such as workpiece fitting, pressing, correcting, and linear transmission through linear pushing and pressing actions.

Specifications
Stroke (mm): 150
Lead (mm): 2
Max.speed(mm/s): 100
Max. Pushing Force(N): 300
Max. Load Capacity Horizontal: 3
Capacity Vertical: 1.5
Repeat Positioning Accuracy (mm): ±0.02
Permissible Load Torque (N.m): MR: 7.9, MP:4.0, MY:5.8
Compatible Controllers: RM-C-20, RM-CEP-20, RM-CEU, RM-CEM
Rated Voltage (V): DC24±10%
Rated Current (A): 2
Weight (kg): 1.3
Usage Environment: 0~40℃,< 85%RH ( Without Condensation)
Protection Class IP: IP40
Motor Direction: Left Side
Outgoing Line Method: Horizontal Wiring
