RobustMotion Cost-effective Industrial Linear Actuator Allow for High Rigidity and High Precision
RobustMotion Cost-effective Industrial Linear Actuator Allow for High Rigidity and High Precision
Specifications
Brand Name :
RobustMotion®
Model Number :
RM-RPLA-11-50-2-L-H-ITG
Certification :
CE, RoHs
Place of Origin :
China
MOQ :
2 pieces/sets
Price :
Negotiable
Payment Terms :
Bank transfer
Supply Ability :
TBC
Delivery Time :
5-15work days
Stroke (mm） :
50
Lead (mm) :
2
Max.speed（mm/s） :
100
Max. Pushing Force（N） :
300
Max. load Capacity Horizontal :
3
Capacity Vertical :
1.5
Repeat Positioning Accuracy (mm) :
±0.02
Permissible Load Torque (N.m) :
MR: 7.9, MP:4.0, MY:5.8
BUS Control :
Modbus RTU
Interface :
Input 2 Points(NPN), Output 3 Points(NPN)
Rated Voltage (V) :
DC24±10%
Rated Current (A) :
2
Weight (kg) :
0.9
Usage Environment :
0~40℃、< 85%RH ( Without condensation)
Protection Class IP :
IP40
Motor Direction :
Left Side
Outgoing Line Method :
Horizontal Wiring
Description

Durable Platform Industrial Linear Actuator With High Rigidity Folding Design RM-RPLA-11-50-2-R-H-ITG

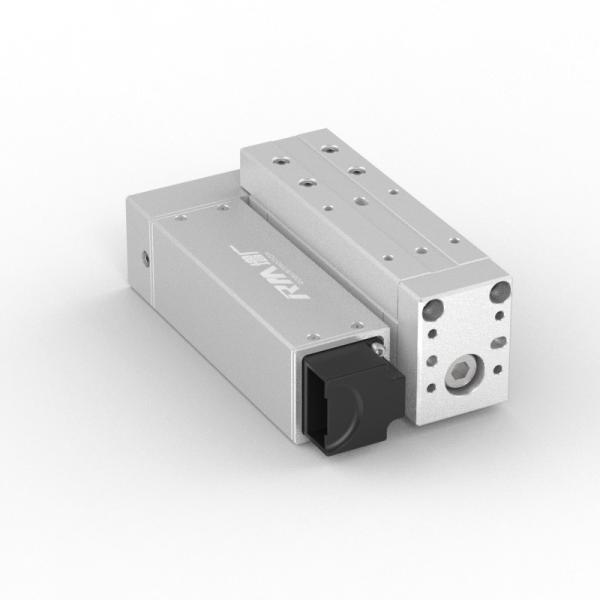

Folding platform-type linear actuator(ITG) (RM-RPLA-11-50-2-R-H-ITG) is a folding push rod with a platform-type working platform and a built-in controller, with a push stroke of 50mm and a horizontal wire direction. It has strong load-bearing capacity and stability, and also has a more compact and exquisite shape, which can be flexibly configured. It relies on the features of fast response, low cost, high repeatability, adaptive push, high rigidity, etc., and widely serves in automated production lines, through linear push, press and other actions, to achieve the workpiece fitting, pressing, correcting, linear transmission and other operations.

By leveraging these capabilities, the folding platform-type linear actuator(ITG) facilitates workpiece fitting, pressing, and other operations in automated production lines. Its use ensures precise and efficient processes, enhancing productivity and quality in manufacturing environments.

Specifications
Stroke (mm): 50
Lead (mm): 2
Max.speed(mm/s): 100
Max. Pushing Force(N): 300
Max. Load Capacity Horizontal: 3
Capacity Vertical: 1.5
Repeat Positioning Accuracy (mm): ±0.02
Permissible Load Torque (N.m): MR: 7.9, MP:4.0, MY:5.8
BUS Control: Modbus RTU
Interface: Input 2 Points(NPN), Output 3 Points(NPN)
Rated Voltage (V): DC24±10%
Rated Current (A): 2
Weight (kg): 0.9
Usage Environment: 0~40℃,< 85%RH ( Without Condensation)
Protection Class IP: IP40
Motor Direction: Left Side
Outgoing Line Method: Horizontal Wiring
