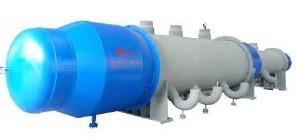

Flexibility Thin Tube Industrial Steam Generator Waste Heat For Industrial
Flexibility Thin Tube Industrial Steam Generator Waste Heat For Industrial
Specifications
Brand Name :
GAOYI
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1set
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
30 Units Per Month
Delivery Time :
20 working days
Packaging Details :
Sea-Worthy Packing or Air-Worthy Packing
Style :
Vertical,Horizontal
Usage :
Industrial
Dimension(l*w*h) :
Depends
Structure :
Water Tube
Pressure :
High Pressure
Name :
Industry Tube Boiler
Description

Flexibility Thin Tube Industrial Steam Generator Waste Heat For Industrial

Product Description

Waste heat recovery system has been successfully promoted in methanol unit and ammonia unit for hundreds, after years of use, complete sets of equipment of the application effect is good, the application performance is enough to prove that the domestic technology level and supply ability of complete sets of equipment is reliable.the waste heat boiler technology developed by our institute has more than 300 sets of applications in the production plant, some of them are exported abroad, and the profits are remarkable. After years of engineering applications, the quality is reliable, fully meet the user's production requirements.

The WHB system includes waste heat boiler, steam drum, regulating valve and their accessories the overall designed and supplied.

Technical Characteristics:

The tubesheet using flexibility thin tubesheet,

Hot-end channel using double-insulated material,

The highest gas-inlet temperature :1350 ℃,

Maximum pressure: 12.6MPa,

Diameter: φ1000 ~ φ3200mm,

By-product of the saturated steam moisture content ≤ 0.05% (wt),

The whole WHB system is very reliable.

Application areas:

Mainly used in methanation, methanol, hydrogen,ethylene, synthetic ammonia, sulfur recovery unit and other unit.

Name Application

Waste heat boiler

 Coal-to-liquids
Coal-to-gas methanation

Sulfur recovery
Methanol waste heat boiler
Synthesis ammonia
LNG coke-oven gas to LNG
Steam drum With waste heat boiler, it is a waste heat recovery system.
Reactor Coal-to-gas methanator
Incinerator Sulfur recovery

Waste Heat Boiler

Structural

Horizontal
Vertical
Recycle design Natural circulation
Tube sheet Thin Tube Sheet
Industry position Domestic leading, international advanced.

Advantage

1.Stable operation, safe and reliable.

2.Stress analysis and design of flexible thin tube sheet.

3.Particular numerical calculation of high temperature inlet temperature field of heat exchange tube and Thermal protection design.

4.Particular design of water supply distribution device.

5.Other designing&manufacturing key technologies.
Synonym Waste heat boiler,WHB, Waste heat recoverer, Steam generator
