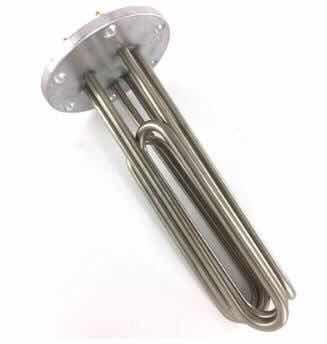

Flange Immersion Heater Steam Boiler Heating Element 3KW 4.5KW 6KW 9KW
Flange Immersion Heater Steam Boiler Heating Element 3KW 4.5KW 6KW 9KW
Specifications
Brand Name :
GAOYI
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
2set
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50 Units Per Month
Delivery Time :
20 working days
Packaging Details :
Sea-Worthy Packing or Air-Worthy Packing
Type :
Immersion Heater
Voltage :
110V-600V AC
Power tolerance :
+5% -10%
Condition :
New
Heating wire :
Nichrome Wire
flange size :
DN25/40/60/80/100/125
Description

Flange Immersion Heater Steam Boiler Heating Element 3KW 4.5KW 6KW 9KW

Product Description

Flange Immersion Heaters

Songtai Immersion heaters are of a variety styles for multi usage. All the tube elements are made of Nichrome heating wires, sheathed by pure stainless steel or Incoloy and Insulated by 99% purity Mgo , which gurantee long life span up to 15000 hours. Also, the mounting terminals are of flexible choices - Hexagon Screws, Flat Flange(round or Square), with Anti-explosion Box, or with Thermostat or Thermocouple hose based on customer diverse applicance. Above all,

our factory has great capacity of designing and developing special immersion heaters to meet customer personalized needs. We never cease our steps in progress and growth with customers.

Technical Specification
Voltage
110V AC up to 600V AC
Wattage
Customized
Immersion Length
50mm-1000mm
Sheath Material
Stainless steel 304, 316L, 310S
T2 Copper
Incoloy800, 840
Welded Elements QTY
1 to 20 units or more
Bult in Thermostat
Temperature range 30°C -110°C
Thermostate suitable fo Max 250V up to 16 amps
Special for Screw plug immersion heaters
Bult in Thermowell
Thermowell hole size and length customized
Terminal Cover Material
Stainless steel
Nylon
Plastic
Screw Thread size
G / NPT / BSPP Thread 1'' 1 1/4'' 1 1/2'' 2'' etc
Round Flange size
DN80 DN100 DN120 DN150 DN200 etc

High Standard Material

* Pure Stainless Steel 304 or higher grade Flange or Screw plug

* Pure Stainless Steel 304 connected fittings

* High-frequency insulation ceramic for fittings

* 100% Nichrome Heating Resistance Wire

* Pure Stainless Steel or Incoloy Elements Sheath

Immersion Heater Features

* Samll Volume Large Wattage

* Powerful function for all liquid heating

* Anti-explosion or Temperature controlling custom design

* Flexible Horizontal or Vertical Installation

* Durability and Resistant Building body
