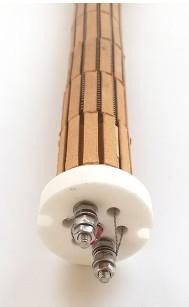

Ceramic Steam Boiler Heating Element 48V - 600V , Long Working Time
Ceramic Steam Boiler Heating Element 48V - 600V , Long Working Time
Specifications
Brand Name :
GAOYI
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1set
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50 Units Per Month
Delivery Time :
20 working days
Packaging Details :
Sea-Worthy Packing or Air-Worthy Packing
Condition :
New
Type :
Infrared Heater
Power Source :
Electric
Power(W) :
Customized
Working time :
6000~10000hours
Weight :
5.5kg/pcs
Description
Ceramic Steam Boiler Heating Element 48V - 600V For Steam Boiler
Product Description
Ceramic Steam Boiler Heating Element 48V - 600V For Steam Boiler can be used for heating of air and liquids. Ceramic Heating Element For Steam Boiler is often installed in tubes/pipes, which means that the ceramic heating element can be replaced without the container needing to be emptied or the dismantling of ovens, machinery, etc. is required. Ceramic Heating Element For Steam Boiler can be supplied complete with a protective tube and threaded flange. The pipe material is typical made of stainless steel, or acid-resistant material. The complete heater may be supplied with a housing that have different classes and in some cases with thermostat and overheating protection. The housing and the type of connection is determined by the application.
Technical specification bobbin-steatite heaters
Resistance 0Cr20Ni80, melting point 1400 °C
Density Load 22 W/cm²
Material Ceramic
Operating Temp Max 650 °C
Heating Types Air, Liquid (With stainless steel housing)
Connection Threaded pin for cable connection
Voltage According to customer requirements

Applications:

1. Electric boilers

2. Air heater

3. Water heater

4. Furnaces e.g. hot air dryers

5. Air / Oil heater

6. Industrial baths / tanks

7. Shrinkage, Welding, etc.

Construction

A resistance wire is passed through the ceramic body which is composed of ceramic sections. The advantage of sections is that you can easily change the length and also adjust the cold zones. Connections are in the connection head.
