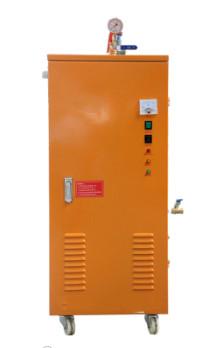

Electric Small Size 12kw Steam Heating Element For Garment Industry
Electric Small Size 12kw Steam Heating Element For Garment Industry
Specifications
Brand Name :
GAOYI
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1set
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
30 Units Per Month
Delivery Time :
20 working days
Packaging Details :
Sea-Worthy Packing or Air-Worthy Packing
Fuel :
electric
Style :
Vertical
Type :
Natural Circulation
Structure :
Water Tube
Rated working pressure :
0.7Mpa(7bar)
Description

Electric Small Size 12kw Steam Press Steam Boiler Heating Element For Garment Industry

Product Description

1. High quality universl wheels with brake - move and fix freely.
2. Triple- electrode controlls automatic water pumping and heating - fully automatic water pumping andheating with stable performance.
3. Superior high pressure vortex pump used . lower noise and hard to breakdown.

4. Compact and clear structure - economical and pratical price.

Parameter

Model

NBS-GH

6

NBS-GH

9

NBS-GH

12

NBS-GH

18

Power(KW)

 6 9 12 18
Rated Pressure(MPA) 0.7 0.7 0.7 0.7
Rated evaporation capacity(kg/h) 8 12 16 25

Water

capacity(L)

 29 29 29 29

Diameter

of inlet pipe

 DN8 DN8 DN8 DN8

Diameter

of steam pipe

 DN15 DN15 DN15 DN15

Diameter

of security valve

 DN15 DN15 DN15 DN15

Diameter

of drain outlet

 DN8 DN8 DN8 DN8
Size(mm) 380*540*1200
Weight(kg) 70 70 70 71
Applications

1. Clothing and washing industry: connect ironing table,dryer,dry cleaning machine,

washing machine,water extractor.

2. Biological and chemical industry: connect fermentor,reactor,jacketed kettle,mixer,

emulsifying machine,autoclave.

3. Restaurant and food machinery industry: connect steam box,tofu machine,sealer,

sterilizing pot,packing machiner,coating machine.

4. Packing and machinery industry: conncet marking machine,labeller.

5. Other: connect concrete curing machine,heat exchange equipment.

6. Civil: steam soya-bean milk, snack and other soups, small washing clothes for ironing

7. Industrial use: small clothes factory, chemical production line using, food machinery

and equipment, medical machinery, chemical machinery, tea fermentation, ironing

hotel steaming meal, and so on.

8. Lab Use: laboratory with small KW steam generator, teaching experiment.

9. Medical Use:disinfect medical machine and medicine, and so on.
