10.00KG Custom Made U Type Electric Steam Generator Boiler Parts
10.00KG Custom Made U Type Electric Steam Generator Boiler Parts
Specifications
Brand Name :
GAOYI
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1set
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50 Units Per Month
Delivery Time :
20 working days
Packaging Details :
Sea-Worthy Packing or Air-Worthy Packing
Fuel :
electric
Type :
Air Heater
Voltage :
110V 220V 380V 480VAC
Power(W) :
300W - 9000W
Sheath Material :
Stainless Steel 201, 304, 316, 321
Shape :
U Type, I Type, W Type
Description

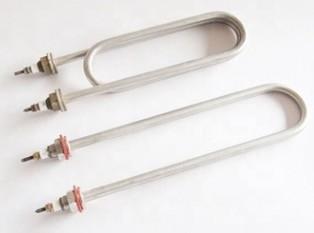

0.50KG - 10.00KG Electric Steam Generator Boiler Custom Made U Type

General Information

Tubular heaters are a versatile and economical heat source for a wide variety of industrial and commercial applications.

Composed of steel fins press-fitted to a tubular element, the finned tubular heater is designed to improve heat transfer to the air and permits putting more power in tighter spaces—like forced air ducts, dryers, ovens and load bank resistors.

Heat transfer, lower sheath temperature and element life are all maximized by the electrc heating element's finned construction. For u type tubular heater, installation is simplified by terminations exiting at one end and mounting accommodations on both ends.

Characteristics & Properties

  • Tube Diameter: Φ7mm-Φ30mm
  • Tube Material: SS201, SS304, SS316, SS321 and INCOLOY800 etc
  • Insulation Material: MgO
  • Conductor Material: Nichrome Resistance Wire
  • Wattage Density: High/Middle/Low (5-25w/cm2)
  • Lead Connection Option: Threaded Stud Terminal or Lead Wire
  • Lead Wire Type: 300mm Standard (Teflon/Silicone High Temperature Fiberglass are available for electric tubular heater)

Heat intensity Not exceeding 30w/cm2 (advisable)
Power Depends on the dimension
Exhaust extreme (when cold) <=0.1mA to 242 v.
Insulation (when cold) 5 Min Ohms 500 Watts minimum
Dielectric strength 1500v. 1/sec
Working temperature 650 Deg C max.
Length tolerance +/-1.5%
Diameter tolerance -0.02 to -0.06 mm
Cut off connection tolerance +/-15 mm
Power tolerance (w) +5 % - 10 %
Cold areas Depends on length and diameter 5-25mm

Suggested Applications

  • Forced air heating for dryers, ovens, ducts
  • Still air heating for ovens, comfort heating
  • Incubators
  • Ink drying
  • Load bank resistors
