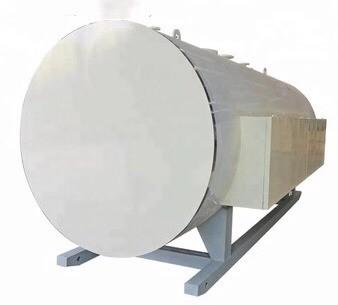

Horizontal Electric Steam Generator Boiler , Industrial Electric Boiler 3500kg / H
Horizontal Electric Steam Generator Boiler , Industrial Electric Boiler 3500kg / H
Specifications
Brand Name :
GAOYI
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1set
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
30 Units Per Month
Delivery Time :
20 working days
Packaging Details :
Sea-Worthy Packing or Air-Worthy Packing
Style :
Horizontal
Condition :
New
Usage :
Industrial
Pressure :
Low Pressure
Type :
Natural Circulation
Product name :
electric steam generator
Description

Horizontal Electric Steam Generator Boiler , Industrial Electric Boiler 3500kg / H

Features

1. All the electrical elements have the CE and CCC certification to make sure the boiler safety and long live.

2. Special design of internal structure, large heating area, high thermal efficiency (99%).

3. Seamless steel tube is used as the linner of the ceramic heating tube, high compression strength, 5~10 times using life longer than others.

4. The boiler uses SIMENS PLC electric control cabinet, displays in English. It shows boiler operation condition dynamically, and operator can set up parameters about temperature, pressure, time, etc.

5. Sitong Boiler has got CE certificate of YY(Q)W series thermal oil boiler, also, we can offer SGS, BV inspection.

6. Stainless steel shell is available, and we can design the specific boiler based on customers’ requirement.

7. The 100% NDT make sure the boiler life span more than 20 years.

8. Each group electrical heating elements focus on type of flange connection to make the structure simple, safe and easy to repair.

Technical Parameters

Model
Item		 LDR0.1-0.4 LDR0.2-0.4 LDR0.3-0.4 LDR0.4-0.4 LDR0.5-0.4/0.7 LDR0.7-0.4/0.7 WDR1.5-0.7
Rated evaporation(t/h) 0.1 0.2 0.3 0.4 0.5 0.7 1.5
Rated working
pressure(Mpa)		 0.4 0.4 0.4 0.4 0.4/0.7 0.4/0.7 0.7
Rated steam
temperature(C)		 151 151 151 151 151/170 151/170 170
Heat Efficiency(%) 99
Size(m) 0.9x2.2 1.0x2.5 1.1x2.6 1.2x3.0 1.2x3.2 1.3x3.5 3.5x1.6x1.7
Weight(kg) 615 750 920 1100 1350 1800 2600
