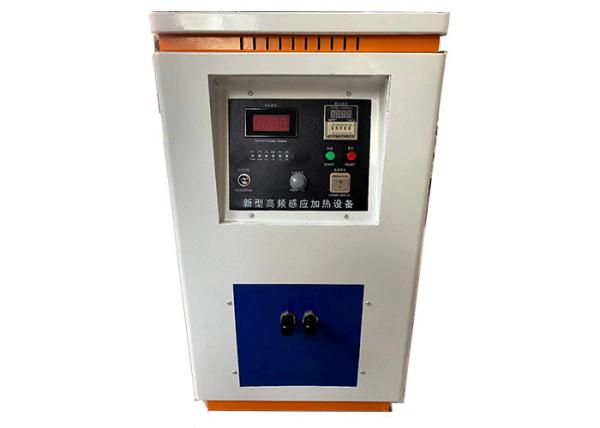

Industrial Portable Induction Brazing Machine For Smelting Steel Alloy Steel
Industrial Portable Induction Brazing Machine For Smelting Steel Alloy Steel
Specifications
Brand Name :
lincheng
Model Number :
LC-ZP-90
Place of Origin :
Shenyang, China
MOQ :
discussible
Price :
discussible
Payment Terms :
L/C, T/T
Supply Ability :
15 sets per day
Delivery Time :
3-10 working days
Packaging Details :
Wooden case packaging
model :
LC-ZP-90
Power :
90KW
Heating mode :
Electric heating
application area :
Smelting steel, alloy steel, special steel, cast iron and other ferrous metal materials
colour :
yellow
characteristic :
High efficiency, environmental protection and energy saving
Description

Medium Frequency Induction Heating Medium Frequency Brazing Furnace

Current situation of medium frequency induction heating:

The medium frequency induction heating device has the advantages of small volume, light weight, high efficiency, excellent thermal processing quality and favorable environment. It is rapidly eliminating coal-fired furnace, gas furnace, oil fired furnace and ordinary resistance furnace. It is a new generation of metal heating equipment.

Medium frequency induction heating is the main equipment in the casting, forging and heat treatment workshop. Its stability, reliability and safety are the guarantee for the normal and stable operation of the casting, forging and heat treatment production line of the flow line.

Parameters of small induction smelting furnace:

model 15 25 35 45 70 90 110 160
Power 15KW 25KW 35KW 45KW 70KW 90KW 110KW 160KW
Input current 18A 36A 57A 80A 110A 140A 160A 240A
DC voltage 550V 550V 550V 550V 550V 550V 550V 550V
input voltage 380V 50-60HZ
Oscillation frequency 1KHZ-20KHZ
Connecting linemm² 10 10 16 35 50 75 90 120
Control switch 50A 60A 80A 120A 150A 225A 225A 300A
ground wire mm² 2mm2
Cooling water pressure ≥0.2MPa
Cooling water flow ≥10L/Min ≥2151/Min ≥220L/Min

Characteristics Of Medium Frequency Induction Heating Equipment:

1. High efficiency, environmental protection and energy saving: higher frequency than rectifier tube can save 2 / 3 of power

2. Especially light: only 16-40kg trunk size

3. Low maintenance cost: no vulnerable and expensive rectifier tube

4. Especially safety: no high voltage, avoiding the risk of high voltage electric shock

5. Easy installation and operation: only external power supply and water pipe can be connected for 10 minutes

6. Practical operation is convenient: you can learn it in a few minutes
