Specifications
Brand Name :
lincheng
Model Number :
LC-L-80kw
Place of Origin :
Shenyang, Liaoning, China
MOQ :
discussible
Price :
discussible
Payment Terms :
L/C, T/T
Supply Ability :
15 sets per day
Delivery Time :
3-10 working days
Packaging Details :
Wooden case packing
Rated power :
80kw
Heating area :
800㎡-1000㎡
Rated current :
121.6A
Voltage frequency :
380V/50Hz
Hot water production rate 50 ℃ :
36.8L/min
Upper and lower water interface :
50DN
Heating mode: :
Electromagnetic induction heating
Heating mode :
Electric heating
Description

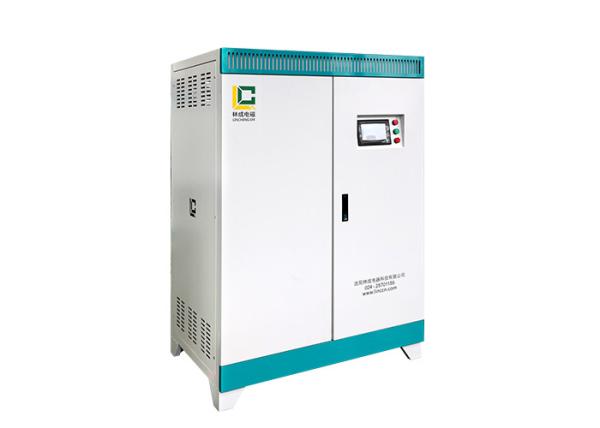

Electric Heater Boiler 80Kw Heating Area: 800-1000 ㎡ Remote Control Indoor Heating Electric Boiler

Advantages Of Electric Heater Boiler Heating:

The electromagnetic boiler adopts the unique 3D dynamic heating technology and three-dimensional three-dimensional all-round heating system. It generates heat evenly. There is no dead angle in the heating process, no dry and hot feeling produced by the traditional heating method, no hot air blowing directly on the human body, no sharp flow of indoor air, no dust flying, no exhaust gas and no noise. The heating process is more comfortable, and finally, it can provide hot water supply for families.


Electric Heater Boiler Technical Parameter:

Serial number Product model Company LC-L-70kw LC-L-80kw
1 Rated power KW 70 80
2 Rated current A 106.4 121.6
3 Heating area 700-900 800-1000
4 input voltage 50HZ 380V 380V
5 Minimum flow of water pump configuration L/min 32 36
6 Hot water yield 50 ℃ L/min 32.5 36.8
7 Design thermal efficiency 98% 98%
8 Maximum water temperature 85 85
9 Low temperature protection temperature 5 5
10 Overall dimension (length * width * height) mm 1160L*720W*1700H 1160L*720W*1700H
11 Water inlet and outlet interface DN 50 50

Safety Advantages Of Electric Heater Boiler:

The electric heater boiler realizes the separation of water and electricity for heating. The heating core part has internal water and external electricity. The whole machine has 100% water and electricity separation. It has multiple protections such as anti leakage, water leakage, high temperature and dry burning. It avoids the hidden dangers of ordinary boilers and can ensure the safety of family heating in winter.

Intelligent Heating Design Of Electric Heater Boiler:

The electric heater boiler has modern human design. It supports PLC programmable operation, remote WiFi operation and microcomputer chip control. It has high degree of automation. It has technical advantages such as simple installation, use, operation and maintenance, reliable operation and full-automatic operation. It can set the time period and temperature according to the needs. The power can be adjusted, the water temperature can be adjusted, the timing and temperature can be adjusted, and it is convenient.
