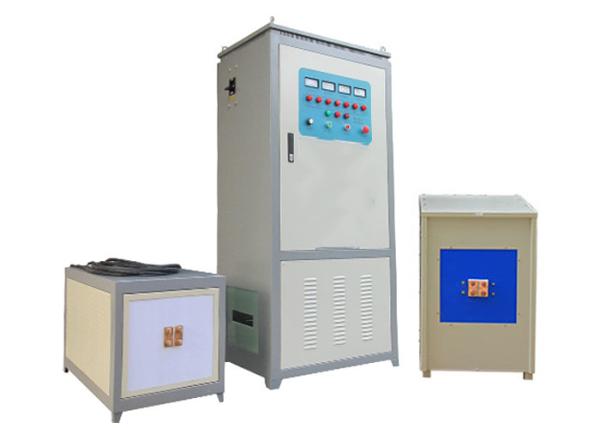

Industrial Medium Frequency Furnace For Steel Copper Aluminum Smelting Heating
Industrial Medium Frequency Furnace For Steel Copper Aluminum Smelting Heating
Specifications
Brand Name :
lincheng
Model Number :
LC-ZP-750
Place of Origin :
Shenyang, China
MOQ :
discussible
Price :
discussible
Payment Terms :
L/C, T/T
Supply Ability :
15 sets per day
Delivery Time :
3-10 working days
Packaging Details :
Wooden case packaging
Model :
LC-ZP-750
Power :
750KW
Load rate :
100%
If range: :
3.6khz
Input power :
750A
Boundary dimension :
810 * 1100 * 1600mm
Description

Medium Frequency Furnace Light Equipment, Fast Heating Speed And High Efficiency

Overview of intermediate frequency furnace:

The medium frequency furnace is a frequency conversion device that converts three-phase power frequency current into single-phase medium frequency current. Through electromagnetic field induction, the metal generates eddy current loss to achieve the purpose of heating and melting. It is used for smelting, heating and heat preservation of ferrous or non-ferrous metals and alloy materials such as steel, copper and aluminum

Technical parameters of intermediate frequency furnace

Model: LC-ZP-750

Power supply: three-phase four wire 380V 50-60Hz

Input power: 800KW

If range: 3.6khz

Load rate: 750%

Input power: 750A

Boundary dimension:810 * 1100 * 1600mm

nstructions for daily maintenance of intermediate frequency furnace:

1. It is recommended to use soft water and pure water for built-in water.

2. If hard water is used, it should be cleaned once a week to avoid scale blocking affecting the use.

3. The equipment shall be protected from high temperature and rain. Otherwise, the internal parts will be damaged and the machine will be scrapped.

Application fields of intermediate frequency furnace:

1. Quenching of pliers, wrenches, scissors, hammers, wire breaking pliers, screws, nuts and other hardware tools.

2. The welding application of straight drill head, cross drill head, plum drill head, geological drill bit and other mining machinery.

3. Large scale smelting of alloys, aluminum, iron, nickel, steel and other metals.

4. Quenching of small parts, motorcycle parts, auto parts and other workpieces.
