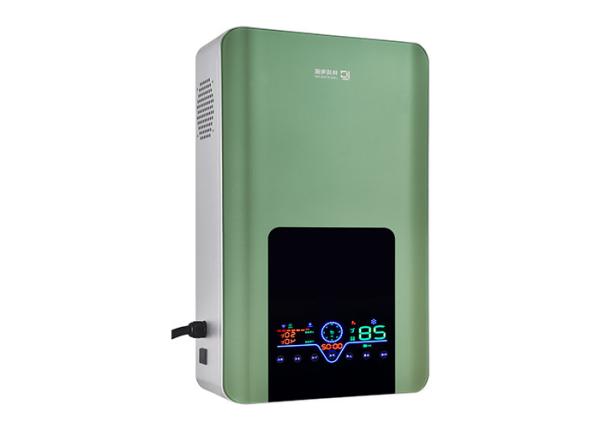

Wall Mounted Electric Combi Boiler For Heating And Hot Water For Household Villa
Wall Mounted Electric Combi Boiler For Heating And Hot Water For Household Villa
Specifications
Brand Name :
lincheng
Model Number :
LC-B-6kw
Place of Origin :
Shenyang, Liaoning, China
MOQ :
discussible
Price :
discussible
Payment Terms :
L/C, T/T
Supply Ability :
15 sets per day
Delivery Time :
3-10 working days
Packaging Details :
Wooden case packaging
Rated power :
6kw-15kw
Heating area :
60㎡-250㎡
input voltage :
220V/380V50Hz
Heating mode :
Electric heating
application area :
Household, villa, private house, bungalow
colour :
White, green, gray
structural style :
Wall mounted
Control system :
Screen, remote control, remote control
Description

Wall Mounted Electric Boiler The Electric Hot Water Boiler Is Safe And Reliable

What Is A Wall Mounted Dlectric Boiler:

The frequency conversion electromagnetic heating furnace realizes the microcomputer intelligent whole process automatic control, supports PLC programmable operation, supports RS485 communication, and supports mobile phone WiFi remote control. It can customize the heating temperature and heating time according to the actual needs of users, so as to achieve the real timing and temperature, and make the heating operation more convenient in winter


Wall Mounted Electric Boiler Product Parameters:

Serial number Product model Company LC-B-6kw LC-B-8kw LC-B-10kw LC-B-12kw LC-B-15kw
one Rated power KW 6 8 10 12 15
two Rated current A 27.3 36.4 45.5 48.2 52.8
three Heating area ㎡ 60-80 80-100 100-120 120-140 150-180
four input voltage 50HZ 220V 220V 220V 220V/380V 220V/380V
five Minimum flow of water pump configuration L/min 15 15 20 20 25
six Hot water yield 50 ℃ L/min 5.62 3.75 4.69 5.62 6.9
seven Design thermal efficiency ℃ 98% 98% 98% 98% 98%
eight Maximum water temperature ℃ 85 85 85 85 85
nine Low temperature protection temperature ℃ 5 5 5 5 5
ten Overall dimension (length * width * height) mm 360*170*630 360*170*630 360*170*630 360*170*630 360*170*630
13 Water inlet and outlet interface DN 32 32 32 32 32

Power Consumption Of Wall Mounted Electric Boiler:

The power consumption of the wall mounted electric boiler is low, and it does not work all the time for 24 hours. Because the variable-frequency constant temperature technology and intelligent temperature control technology are adopted, when the outlet water temperature reaches the set temperature, the full power heating will be stopped, and then the low-power insulation mode will be started; If the indoor heat is lost, when the water temperature is lower than the set temperature, the heating mode will be turned on again to continue to maintain the set water temperature.
