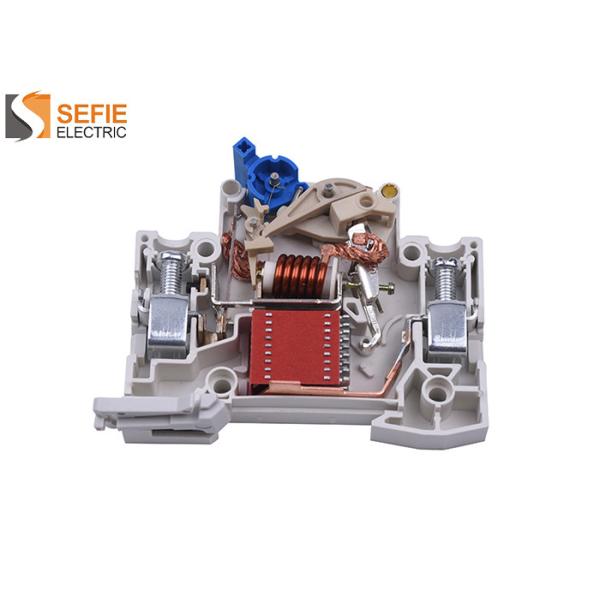

1 Pole 230V Mini Circuit Breaker Type B Curve Mcb Easy Mounting Onto 35mm DIN Rail
1 Pole 230V Mini Circuit Breaker Type B Curve Mcb Easy Mounting Onto 35mm DIN Rail
1 Pole 230V Mini Circuit Breaker Type B Curve Mcb Easy Mounting Onto 35mm DIN Rail
1 Pole 230V Mini Circuit Breaker Type B Curve Mcb Easy Mounting Onto 35mm DIN Rail
Specifications
Brand Name :
SEFIE
Model Number :
SFM3-63
Certification :
CE, ROHS, CB
Place of Origin :
Wenzhou,China
MOQ :
2000-3000
Price :
Negotiable
Supply Ability :
200000 pcs per month
Delivery Time :
14 days after receipt of deposit
Packaging Details :
240 pcs per carton, 12 pcs per box
Type :
Mini
Rated frequency :
50/60Hz
Rated current :
6-63A
Rated voltage :
230/400V
Tripping curve :
B,C,D
Mechanical Life :
20000 Times
Description

1 Pole Mini Type B / C / D curve 4.5KA Mini Circuit Breaker

SFM3-63 series circuit breaker is used in lighting distribution system or motor distribution system for protection overload and short-circuit in the system. The product is neote ric in structure, light i n weight, reliable and excellent in performance.

1. Protection against both overload and short circuit

2. High short-circuit capacity

3. Easy mounting onto 35mm DIN rail

Electrical Feature
1, 2, 3, 4, 6, 10, 16, 20, 25, 32, 40, 50, 63
Poles 1P, 2P, 3P, 4P
Rate voltage(V) Ue 230/400~240/415
Insulation voltage(V) Ui 500
Rated frequency(Hz) 50
Tripping curve B,C,D Type
Standard IEC60898-1
Breaking capacity(Ka) 10
Power loss per pole
 Rated current(A) Max power loss per pole(W)
1, 2, 3, 4, 6, 10 2
16, 20, 25, 32, 3.5
40, 50, 63, 5
Pollution degree Ⅱ
Energy limiting class 3

Mechanical Features
Electrical life 4000
Mechanical life 20000
Contact position indicator NO
Protection degree IP20
Reference temperature for setting of thermal element 30℃
Working ambient temperature -5~40℃
Storage temperature -25~70℃

Installation
Terminal connection type Cable
Mounting On DIN rail IEC60715(35mm) by means of fast clip device

Temperature derating

The maximum permissible crrent in a circuit breaker depends on the ambient temperature where the circuit breaker is placed. Ambient termperature is the temperature in side the enclosure or switchboard in which the circuit breakers are installed.
The reference temperature is 30℃

Rated current(A)
-35℃
-30℃
-20℃
-10℃
0℃
10℃
1
1.3
1.26
1.23
1.19
1.15
1.11
2
2.6
2.52
2.46
2.38
2.28
2.2
3
3.9
3.78
3.69
3.57
3.42
3.3
4
5.2
5.04
4.92
4.76
4.56
4.4
6
7.8
7.56
7.38
7.14
6.86
6.6
10
13.2
12.7
12.5
12
11.5
11.1
16
21.12
20.48
20
19.2
18.4
17.76
20
26.4
25.6
25
24
23
22.2
25
33
32
31.25
30
28.75
27.75
32
42.56
41.28
40
38.72
37.12
35.52
40
53.2
51.2
50
48
46.4
44.8
50
67
65.5
63
60.5
58
56
63
83.79
81.9
80
76.86
73.71
70.56

Rated current(A)
20℃
30℃
40℃
50℃
60℃
70℃
1
1.05
1
0.96
0.93
0.88
0.83
2
2.08
2
1.92
1.86
1.76
1.66
3
3.12
3
2.88
2.79
2.64
2.49
4
4.16
4
3.84
3.76
3.52
3.32
6
6.24
6
5.76
5.64
5.28
4.98
10
10.6
10
9.6
9.3
8.9
8.4
16
16.96
16
15.36
14.88
14.24
13.44
20
21.2
20
19.2
18.6
17.8
16.8
25
26.5
25
24
23.25
22.25
21
32
33.92
32
30.72
29.76
28.16
26.88
40
42.4
40
38.4
37.2
35.6
33.6
50
53
50
48
46.5
44
41.5
63
66.78
63
60.48
58.9
55.44
52.29
