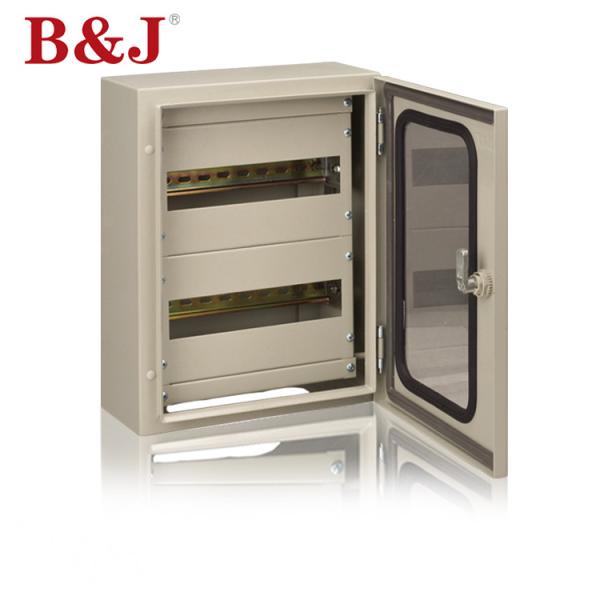

Great Design Wall Mounting Steel Enclosure 24 Modules Removable Mounting Frame
Great Design Wall Mounting Steel Enclosure 24 Modules Removable Mounting Frame
Specifications
Brand Name :
B&J
Model Number :
BJI
Certification :
TUV
Place of Origin :
WENZHOU
MOQ :
10PCS
Price :
according to your quantity
Payment Terms :
L/C, T/T, L/C, Western Union, D/P, MoneyGram
Supply Ability :
40000 PCS PER MONTH
Delivery Time :
According to your quantity
Packaging Details :
CARTON
mounting location :
Front of enclosure
Type :
modular chassis
Paint Finish :
Epoxy Polyester Coating
Size :
400x300x200mm
Material :
sheet metal
Thickness :
1.2mm or 1.5mm
Description
modular chassis type for steel electrical enclosure , 24 modules

Feature:

  • Chassis with a front cover to mount DIN-rail components within wall mounted enclosures​

Advantage:

  • Modular components can be pre-mounted onto the chassis before being installed into the enclosure. The electrical cables will be covered by the front cover.

Benefit:

  • The chassis allows panel builders to quickly install modular components. As the electrical connections and cables are protected, safe operations can be performed in the field.The MODULAR design and flexibility enables fast and easy assembly of electrical panels.
    There are no limits in design providing maximum versatility for the enclosure required and
    can be configured and/or expanded at any time to suit specific requirements.


Construction:
  • Body type Gutter-shaped front rail double sheet
  • thickness Single piece body
  • Number of doors 1 front face
  • Door opening Reversible 120 ° Lock type
  • Removable parts :Mounting plate by fixing
  • element Cable gland plate by screws
  • Door by hinges
Material:
Enclosure: sheet steel 1.2mm till height 800 then 1.5mm
Door: sheet steel 1.2mm till height 600 then 1.5mm
Module kit:1.5mm
Surface finish:
Enclosure and door: Epoxy polyester powder coating textured finish in RAL7035 or RAL7032
Modular kit: Epoxy polyester powder coating textured finish same as enclosure
IP degree of protection:IP66 conforming to IEC 60529
IK degree of protection:IP10 conforming to IEC 62262


Supply include: Enclosure and door,mounting plate,lock system,gland plate,sealing gasket and accessories

Packaging & Shipping

Packing Details: 1 Piece Per Carton


Delivery Time:10-30days after prepayment


Dimension(mm):

Reference Size
BJI-43/150 400 300 150
BJI-43/200 400 300 200
BJI-44/150 400 400 150
BJI-44/200 400 400 200
BJI-54/200 500 400 200
BJI-55/200 500 500 200
BJI-64/200 600 400 200
BJI-64/250 600 400 250
BJI-65/200 600 500 200
BJI-65/250 600 500 250
BJI-86/200 800 600 200
BJI-86/250 800 600 250
BJI-106/350 1000 600 350
BJI-106/300 1000 600 300
BJI-108/350 1000 800 350
BJI-108/300 1000 800 300


Our Services:

Warranty Service:

We 100% Gurantee your Satisfaction
1. Pls report us if there are any problem, we will solve it ASAP.
2 .This items comes with 1 YEAR warranty.
Equivalent replacements can be provided with shipment of your next order if the products are broken for unartificial factors within 1 YEAR; however photos are needed for us to find the factors of damaging
3. Shipping and handling fees are not refundable for return or exchange items.

Philosophy of the Company:

Excellent design,Excellent make.Excellent service.
