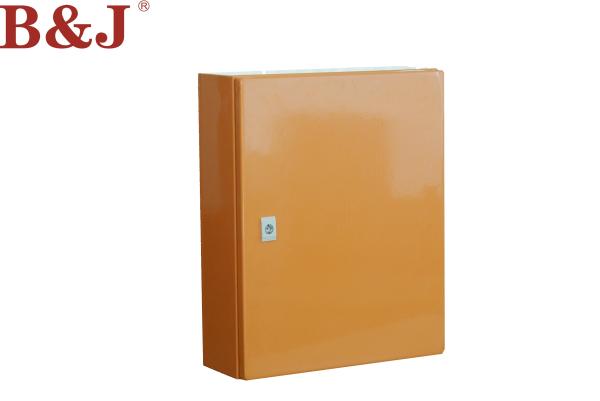

Single Door Lockable Metal Enclosure 1.2mm Zinc Coated Steel Custom Colour
Single Door Lockable Metal Enclosure 1.2mm Zinc Coated Steel Custom Colour
Specifications
Brand Name :
B&J
Model Number :
BJS1
Certification :
TUV
Place of Origin :
WENZHOU
MOQ :
10PCS
Price :
according to your quantity
Payment Terms :
L/C, T/T, L/C, Western Union, D/P, MoneyGram
Supply Ability :
40000 PCS PER MONTH
Delivery Time :
According to your quantity
Packaging Details :
CARTON
Material :
1.2mm zinc coated steel
Colour :
custom made
Thickness :
1.2mm
Paint Finish :
Epoxy Polyester Coating
Size :
400x300x200mm
Lock :
black plastic lock
Description
BJS1 single door wallmounting metal steel enclosure boxes IP66
Applications:
  • These enclosures are designed to provide protection against dust, dirt, oil and water. They are suitable for areas subject to high pressure hosing and generally wet conditions.
  • We specialize in offering a wide range of Wall Mounted Enclosure. These are acclaimed for their rugged construction and effective performance. manufactured using unamcthed quality components and as per international industrial standards, these devices ensure robustness, durability and high functional efficiency. our products are admired for their rugged construction and effective performance.
  • Concept Enclosures are ideal for machine control applications. With streamlined styling, flush quarter-turn latches and an attractive, durable finish.

Features:
  • IP66 protection rating
  • Specially designed gutter system
  • 120º door opening provides easy access
  • Door rails come as standard fitted to the inside of the door
  • Unique wall-mount feature ensures installation is quick and easy with no need to drill holes in the enclosures body


Standards

  • IEC 60529, IP66,IK10


Seuface finish:

  • Enclosure and door: Epoxy polyester powder coating textured finish
  • Color: RAL7032 or RAL7035


Construction

  • Formed 1.2mm or 1.5mm steel.
  • Smooth, continuously welded seams ground smooth.
  • Door stiffeners are provided where required for increased strength and rigidity - designed to also permit additional mounting options.
  • Formed lip on enclosure to exclude flowing liquids and contaminants.
  • Door latches feature the added safety of quarter turn slot requiring use of tool for opening.
  • Doors may be easily removed for modifications and are interchangeable.
  • Seamless poured-in place gasket.
  • Collar studs provided for mounting plate
  • Includes hardware kit with panel mounting nuts and sealing washers for wall mounting holes.
  • Bonding stud provided on door and grounding stud installed in enclosure.
  • turn latch and multi-point handle (key lockable) are zinc diecast with epoxy finish.
Material:
  • Enclosure: sheet steel 1.2mm till height 800 then 1.5mm
  • Door: sheet steel 1.2mm till height 600 then 1.5mm
  • Mounting plate:1.5mm till height 800 then 2.0mm



Supply include:

  • Enclosure and door,mounting plate,lock system,gland plate,sealing gasket and accessories


Dimension(mm):

Reference Size
BJS1-22/150 200 200 150
BJS1-2520/150 250 200 150
BJS1-32/150 300 200 150
BJS1-33/150 300 300 150
BJS1-33/200 300 300 200
BJS1-43/150 400 300 150
BJS1-43/200 400 300 200
BJS1-44/150 400 400 150
BJS1-44/200 400 400 200
BJS1-54/200 500 400 200
BJS1-55/200 500 500 200
BJS1-64/200 600 400 200
BJS1-64/250 600 400 250
BJS1-65/200 600 500 200
BJS1-65/250 600 500 250
BJS1-86/200 800 600 200
BJS1-86/250 800 600 250
BJS1-106/350 1000 600 350
BJS1-106/300 1000 600 300
BJS1-108/350 1000 800 350
BJS1-108/300 1000 800 300
BJS1-128/300 1200 800 300
BJS1-1210/300 1200 1000 300
BJS1-1212/300 1200 1200 300

Single Door Lockable Metal Enclosure 1.2mm Zinc Coated Steel Custom ColourSingle Door Lockable Metal Enclosure 1.2mm Zinc Coated Steel Custom Colour
Warranty Service:

We 100% Gurantee your Satisfaction
1. Pls report us if there are any problem, we will solve it ASAP.
2 .This items comes with 1 YEAR warranty.
Equivalent replacements can be provided with shipment of your next order if the products are broken for unartificial factors within 1 YEAR; however photos are needed for us to find the factors of damaging
3. Shipping and handling fees are not refundable for return or exchange items.
