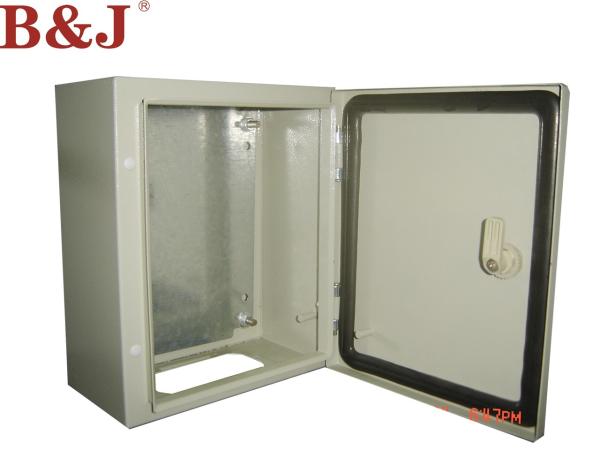

Single Door Metal Electrical Enclosure Box , Wall Mount Electric Distribution Box
Single Door Metal Electrical Enclosure Box , Wall Mount Electric Distribution Box
Specifications
Brand Name :
B&J
Model Number :
BJS1
Certification :
TUV
Place of Origin :
WENZHOU
MOQ :
10PCS
Price :
according to your quantity
Payment Terms :
L/C, T/T, L/C, Western Union, D/P, MoneyGram
Supply Ability :
40000 PCS PER MONTH
Delivery Time :
According to your quantity
Packaging Details :
CARTON
Material :
1.2 mm galvanized sheet
Mounting plate :
galvanized sheet
Thickness :
1.2mm
Paint Finish :
Epoxy Polyester Coating
Size :
400x300x200mm
Lock :
plastic lock
Description
power distribution surface mounted enclosure with single door
Applications:

The BJS1 Series is a group of steel enclosures used to house electrical or electronic switchgear, control gear and equipment necessary to supply, distribute and transform electricity in industrial installations.
This series comprises an extensive range of standard models made with premium-quality
materials in cold-rolled steel plate or stainless steel. Both of these materials are available in BJS1 version
The design and manufacture of this product line is flexible and can be customized for settings that require specific dimensions depending on user requirements and installations.
The full range is accompanied by a set of complementary accessories: mounting plates,
inner doors, canopies, eyebolts, ventilation systems, chassis, etc.

Features:
  • IP66 protection rating
  • Specially designed gutter system
  • 120º door opening provides easy access
  • Door rails come as standard fitted to the inside of the door
  • Unique wall-mount feature ensures installation is quick and easy with no need to drill holes in the enclosures body


Standards

  • IEC 60529, IP66,IK10


Seuface finish:

  • Enclosure and door: Epoxy polyester powder coating textured finish
  • Color: RAL7032 ,RAL7035 and custom


Construction

  • Formed 1.2mm or 1.5mm steel.
  • Smooth, continuously welded seams ground smooth.
  • Door stiffeners are provided where required for increased strength and rigidity - designed to also permit additional mounting options.
  • Formed lip on enclosure to exclude flowing liquids and contaminants.
  • Door latches feature the added safety of quarter turn slot requiring use of tool for opening.
  • Doors may be easily removed for modifications and are interchangeable.
  • Seamless poured-in place gasket.
  • Collar studs provided for mounting plate
  • Includes hardware kit with panel mounting nuts and sealing washers for wall mounting holes.
  • Bonding stud provided on door and grounding stud installed in enclosure.
  • turn latch and multi-point handle (key lockable) are zinc diecast with epoxy finish.
Material:
  • Enclosure: sheet steel 1.2mm till height 800 then 1.5mm
  • Door: sheet steel 1.2mm till height 600 then 1.5mm
  • Mounting plate:1.5mm till height 800 then 2.0mm



Supply include:

  • Enclosure and door,mounting plate,lock system,gland plate,sealing gasket and accessories


Dimension(mm):

Reference Size
BJS1-22/150 200 200 150
BJS1-2520/150 250 200 150
BJS1-32/150 300 200 150
BJS1-33/150 300 300 150
BJS1-33/200 300 300 200
BJS1-43/150 400 300 150
BJS1-43/200 400 300 200
BJS1-44/150 400 400 150
BJS1-44/200 400 400 200
BJS1-54/200 500 400 200
BJS1-55/200 500 500 200
BJS1-64/200 600 400 200
BJS1-64/250 600 400 250
BJS1-65/200 600 500 200
BJS1-65/250 600 500 250
BJS1-86/200 800 600 200
BJS1-86/250 800 600 250
BJS1-106/350 1000 600 350
BJS1-106/300 1000 600 300
BJS1-108/350 1000 800 350
BJS1-108/300 1000 800 300
BJS1-128/300 1200 800 300
BJS1-1210/300 1200 1000 300
BJS1-1212/300 1200 1200 300

Single Door Metal Electrical Enclosure Box , Wall Mount Electric Distribution BoxSingle Door Metal Electrical Enclosure Box , Wall Mount Electric Distribution Box
Warranty Service:

We 100% Gurantee your Satisfaction
1. Pls report us if there are any problem, we will solve it ASAP.
2 .This items comes with 1 YEAR warranty.
Equivalent replacements can be provided with shipment of your next order if the products are broken for unartificial factors within 1 YEAR; however photos are needed for us to find the factors of damaging
3. Shipping and handling fees are not refundable for return or exchange items.


Philosophy of the Company:

Excellent design,Excellent make.Excellent service.
