Low Voltage Electrical Power Distribution Panel Board Switchgear Cabinet GCK
Low Voltage Electrical Power Distribution Panel Board Switchgear Cabinet GCK
Low Voltage Electrical Power Distribution Panel Board Switchgear Cabinet GCK
Low Voltage Electrical Power Distribution Panel Board Switchgear Cabinet GCK
Low Voltage Electrical Power Distribution Panel Board Switchgear Cabinet GCK
Low Voltage Electrical Power Distribution Panel Board Switchgear Cabinet GCK
Specifications
Brand Name :
HENGFENGYOU
Model Number :
GCK
Certification :
ISO IEC CB COC KEMA SNI SABS CCC
Place of Origin :
China
MOQ :
1
Price :
200-20000/piece
Payment Terms :
LC T/T
Supply Ability :
5000 piece/year
Delivery Time :
30 days
Packaging Details :
wooden case
Type :
metal clad
Rated frequency :
AC 50Hz (60Hz)
Rated current(A) :
630, 1250, 1600, 2500, 3510, 4000
Customized :
OEM/ODM order acceptable
Application :
Power transmission or distribution
Product Name :
Electrical kyn28 12 switchgear 11kv
Rated Voltage :
3KV, 7.2KV, 12KV optional
Comply standards :
DL/T404, IEC298,GB3906
Description

Low Voltage Electrical Power Distribution Panel Board Switchgear Cabinet

Products description

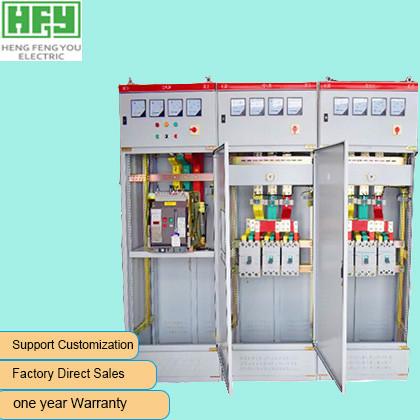

GCK type LV switchgear is suitable for three-phase AC 50 /60HZ, max voltage 660V, rated current to 3150A system and three-phase four wire and three-phase five wire, it is widely used in

power plants, substations, industrial and mining enterprises, hotels, airports, docks and the building of broadcasting and communication center, transmission & distribution and the electric energy conversion, power distribution and power consumption in PC and motor control center MCC

GCK type withdrawerable Low Voltage MCC -Motor Control Center Panel with access in front.

440V Low Voltage MCC Motor Control panel is used for the motor controlling ,to start or close the motor .

  • With 400A MCCB as main breaker, 3 nos Amper meter for 3-phase ,The Amp meter is on the purpose of indicating total current of all drawer modulars
  • 1 x 95 KW /250A drawer modular to control ,start the motor via star- delta. 3 x 15KW /50A & 3 x 7.5KW /32A modulars directly start the motor.
  • In each unit inside there installed with MCCB as main switch and thermal overload relay and AC contactors,

  • Inside additional equipped with 2 medium relays, one relay with coil 24VDC for coming signal from PLC, the other relay for turning on /off from field

Low Voltage Electrical Power Distribution Panel Board Switchgear Cabinet GCK
Item Unit Parameters
Rated voltage KV 3, 7.2, 12
Rated current A 630,1250,1600,2500,3150,4000*
Rated short circuit breaking current KA 25, 31.5, 40
Rated short circuit switching current 63, 80, 100
Rated short-yime withstand current(4s) 25, 31.5, 40
Rated peak withstand current 63, 80, 100
Rated frequency Hz 50
Rated insulation level 1 min power frequency withstand voltage KV 42
Lighting impulse withstand voltage 75
control circuit voltages AC V 110, 220, 380
DC V 110, 220
Protection degree Housing IP4X , cubicle and circuit breaker IP2X when door is open

Working Environment

1.Indoor altitude above sea level: Maximum installation altitude: 2000m

2..Ambient air temperature: -5℃~+40℃ and the average temperature should not

exceed +35℃ in 24h

3.Relative humidity should not exceed 50% at max temperature +40℃. Higher

relative humidity is allowed at lower temperature. Ex. 90% at +20℃. But in view of

the temperature change, it is possible that moderate dews will produce casually.

4.No fire, explosion danger, serious pollution, chemical corrosion and severe vibration

5.Installation gradient not exceed 5°

6.This product is suitable for the following temperature transportation storage: -25℃ ~+55℃ 24h, in a short period of time (no more than 24hours) not more than+70℃.

Characteristics

This series of products with high breaking capacity, good dynamic stability, advanced and reasonable structure, electrical program of practical, series, strong versatility, various schemes of unit combination, a cabinet contained many circuits, save the area , beautiful appearance, high level protection, safe and reliable, convenient maintenance etc.

It accords with the standards IEC439 NEMA ICS2-322 as well as the GB7251-87 “Low voltage complete switch device ” national standards and ZBK36001-89 "low voltage withdraw type complete switch device” professional standards"
