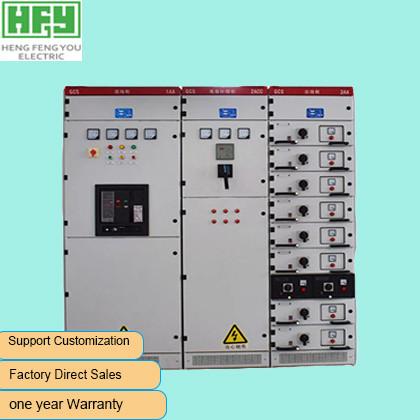

Electrical Distribution Board Withdrawable GCS Low Voltage switchgear panel
Electrical Distribution Board Withdrawable GCS Low Voltage switchgear panel
Electrical Distribution Board Withdrawable GCS Low Voltage switchgear panel
Electrical Distribution Board Withdrawable GCS Low Voltage switchgear panel
Electrical Distribution Board Withdrawable GCS Low Voltage switchgear panel
Electrical Distribution Board Withdrawable GCS Low Voltage switchgear panel
Specifications
Brand Name :
HENGFENGYOU
Model Number :
GCS
Certification :
ISO IEC CB COC KEMA SNI SABS CCC
Place of Origin :
China
MOQ :
1
Price :
200-20000/piece
Payment Terms :
LC T/T
Supply Ability :
5000 piece/year
Delivery Time :
30 days
Packaging Details :
wooden case
Type :
metal clad
Rated frequency :
AC 50Hz (60Hz)
Rated current(A) :
630, 1250, 1600, 2500, 3510, 4000
Customized :
OEM/ODM order acceptable
Application :
Power transmission or distribution
Product Name :
Electrical kyn28 12 switchgear 11kv
Rated Voltage :
3KV, 7.2KV, 12KV optional
Comply standards :
DL/T404, IEC298,GB3906
Description

Electrical Distribution Board Withdrawable GCS Low Voltage switchgear panel

Product Description

1. GCS is a modularized and multi-function low voltage distributing cabinet, used in the low voltage distribution and motor control system where high reliability is needed in areas like mtallurgy, petroleum, chemical industry, mining enterprise and foundation construction etc.

2. GCS adopts the cabinet body with flexible height: Multiple types and specifications of components can be installed according to user's needs or as the condition requires. Feeding units of all types can be installed in the same row and the same cabinet.

3. GCS has an entire series of low voltage switch cabinet, can meet user's omni bearing requirements, and is applicable to all 4000A low voltage system.

4. GCS has an all assembled structure, special section bar structure and connection mode, and can meet the requirements of a rigorous construction time limit and power continuity.

5. GCS can provide high-leveled reliability and safety, humanized design, which reinforced the protection of personal and equipment safty.

Electrical Distribution Board Withdrawable GCS Low Voltage switchgear panel

Rated isolation voltage To 1000V
Rated operational voltage To 600V
Rated frequency 50 /60 Hz
Rated impact withstand voltage 8 kV
Rated voltage of auxiliary circuit AC380, 220V,DC 220V
Over voltage degree III
Pollution degree 3
Rated current 4000A
Horizontal busbar rated current 4000A
Vertival busbar rated current

2000, 1000A

Working Environment

1. Indoor altitude above sea level: Maximum installation altitude: 2000m

2. Ambient air temperature: -5℃~+40℃ and the average temperature should not

exceed +35℃ in 24h

3. Relative humidity should not exceed 50% at max temperature +40℃. Higher

relative humidity is allowed at lower temperature. Ex. 90% at +20℃. But in view of

the temperature change, it is possible that moderate dews will produce casually.

4. No fire, explosion danger, serious pollution, chemical corrosion and severe vibration

5. Installation gradient not exceed 5°

6. This product is suitable for the following temperature transportation storage: -25℃ ~+55℃ 24h, in a short period of time (no more than 24hours) not more than+70℃.

Characteristics

This series of products with high breaking capacity, good dynamic stability, advanced and reasonable structure, electrical program of practical, series, strong versatility, various schemes of unit combination, a cabinet contained many circuits, save the area , beautiful appearance, high level protection, safe and reliable, convenient maintenance etc.

It accords with the standards IEC439 NEMA ICS2-322 as well as the GB7251-87 “Low voltage complete switch device ” national standards and ZBK36001-89 "low voltage withdraw type complete switch device” professional standards"

Electrical Distribution Board Withdrawable GCS Low Voltage switchgear panel

Electrical Distribution Board Withdrawable GCS Low Voltage switchgear panel
