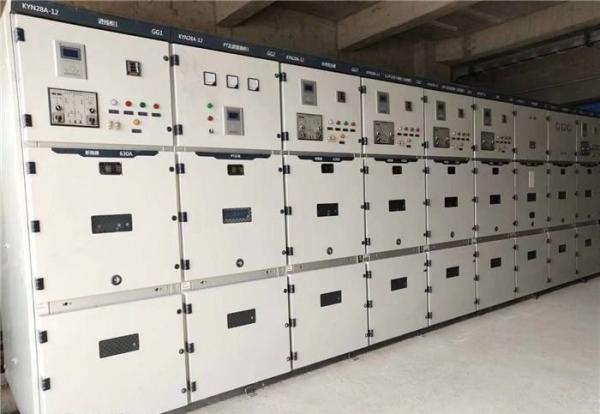

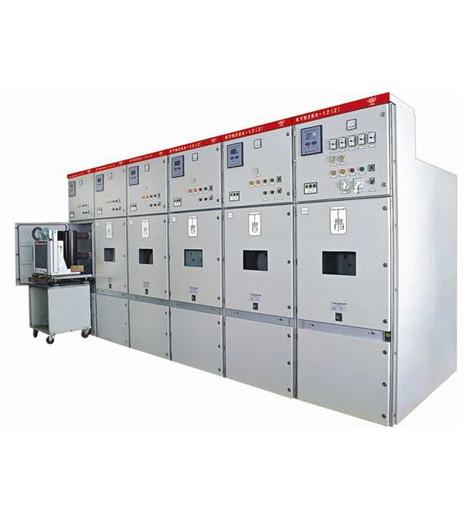

KYN28 Medium Voltage Switchgear Medium Voltage Panel High Performance
KYN28 Medium Voltage Switchgear Medium Voltage Panel High Performance
KYN28 Medium Voltage Switchgear Medium Voltage Panel High Performance
KYN28 Medium Voltage Switchgear Medium Voltage Panel High Performance
Specifications
Brand Name :
HENGFENGYOU
Model Number :
KYN
Place of Origin :
China
MOQ :
1
Delivery Time :
30 days
Packaging Details :
wood pack
Supply Ability :
5000 piece/year
Payment Terms :
T/T
Price :
200-20000/piece
Certification :
ISO IEC CB COC KEMA SNI SABS CCC
Description

General info


KYN28 indoor metal-clad switchgear is a complete power distribution device for 3.6~24kV,3-phase AC50/60Hz,single-bus and single-bus sectionalized system.　It is mainly used for power transmission of middle/small generators in power plants;　power receiving,　transmission for substations in power distribution and power system of factories, mines and enterprises,　and starting of large high-voltage motor,　etc.,so as to control,　protect and monitor the system.　The switchgear meets IEC298,GB3906-91.In addition to be used with domestic VS1 vacuum circuit breaker,　it can also be used with VD4 from ABB, 3AH5 from Siemens domestic ZN65A, and VB2 from GE,　etc.,it is truly a power distribution device with good performance.

In order to meet the requirement for wall mounting and front-end maintenance,　the switchgear is equipped with a special current transformer,　so that the operator can maintain and inspect it in front of the cubicle.

KYN28 Medium Voltage Switchgear Medium Voltage Panel High Performance

Service environment
1.Air temperature: -25℃~+40℃
2.Humidity:Monthly average humidity 95%; Daily average humidity 90% .
3.Altitude :≤ 2500m
4. Ambient air not apparently polluted by corrosive and flammable gas, vapor etc.
5. No frequent violent shake

Fully type-tested
The switchgear has undergone all the tests required by the international (IEC) Standards. Each switchgear unit is subjected to routine tests in the factory before delivery. These tests are intended to provide a functional check of the switchgear based on the specific characteristics of each installation.

KYN28 Medium Voltage Switchgear Medium Voltage Panel High Performance

parameters

No. Item Unit Parameter
1 Rated voltage kV 3.6~24
2 Rated frequency Hz 50/60
3 Rated current A 630,1250,1600,2000,2500,3150,4000
4 Branch busbar Rated current 630,1250,1600,2000,2500,3150,4000
5 Main busbar Rated current 630,1250,1600,2000,2500,3150,4000
6

1min Power frequency

withstand voltage

 wet KV 38 50/60
dry 48 60/65
7 Lightning impulse withstand voltage kV 75 95/125
8 Rated short circuit breaking current (peak) KA 40/50/63/80/100
9 Short time withstand current(4s) 20/25/31.5/40
10 Protection type IP4X for housing
