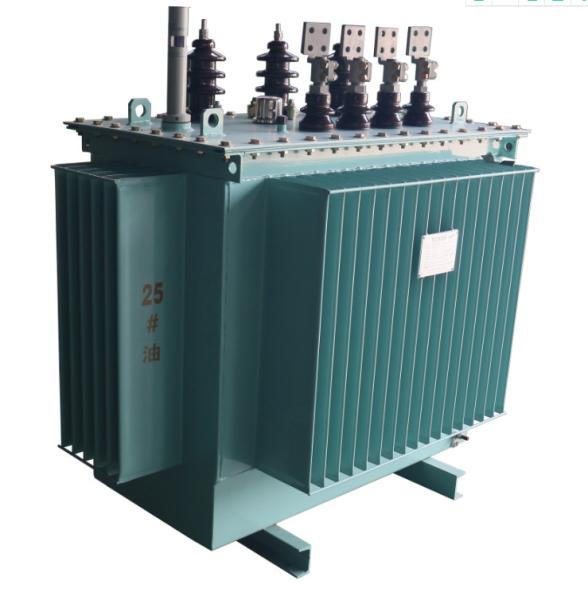

S-11 Oil Immersed Transformer Industrial Power Transformer Toroidal Coil Structure
S-11 Oil Immersed Transformer Industrial Power Transformer Toroidal Coil Structure
Specifications
Brand Name :
HENGFENGYOU
Model Number :
S-11
Certification :
ISO IEC CB COC KEMA SNI SABS CCC
Place of Origin :
China
MOQ :
1
Payment Terms :
LC T/T
Supply Ability :
5000 pieces/year
Delivery Time :
15 DAYS
Packaging Details :
wooden case
Standard :
IEC60076, GB1094-1996; JB/T10088-2004; GB/T6451-2008
Output voltage :
220V 380V 400V
Coil Structure :
Toroidal
Vector group :
Dyn11,Dyn5,Yyno or others
Rated capacity :
50,63,80,100,125,200,250,315,400,500,800,1000, 2000,2500, 3
Material :
Copper or aluminum
Noise :
20
Load Loss :
976
Price :
200-200000/piece
Description

Pole Mounted 10kv Three phase oil-immersed power transformers

S-11 series power transformer core USES the high quality cold-rolled steel coil, USES the high

quality anaerobic copper into and beautiful outlook, safety of operation. S9 series transformer

and compared, and the annual average no-load loss is reduced by 10% and the average load

loss is reduced by 20% and save energy obviously, widely used in industry and agriculture,

urban and rural power grid.

Rated capacity Voltage Combination Loss(kw) No-load current (%) Impedance voltage (%) Weight(kg)
(KVA) High voltage (KV) High voltage tapping range Low voltage(KV) Load No-load Oil weight Overall weight
10 6KV
6.3KV
6.6KV 10KV 11KV 13.8KV
 ±5%±2×2.5%

0.38kv

0.4kv

0.415kv

 0.26 0.09 3.2 4 45 172
20 0.44 0.1 3 57 230
30 0.6 0.13 2.3 75 295
50 0.87 0.17 2 88 395
63 1.04 0.2 1.9 95 420
80 1.25 0.25 1.9 103 480
100 1.5 0.29 1.8 115 540
125 1.8 0.34 1.7 130 645
160 2.2 0.4 1.6 145 740
200 2.6 0.48 1.5 175 885
250 3.05 0.56 1.4 195 1010
315 3.65 0.57 1.4 230 1205
400 4.3 0.8 1.3 255 1375
500 5.1 0.96 1.2 285 1620
630 6.2 1.2 1.1 4.5 350 1960
800 7.5 1.4 1.1 405 2310
1000 10.3 1.7 1 490 2690
1250 12 1.95 1 550 3315
1600 14.5 2.4 0.8 625 3985
2000 18 2.6 0.7 745 4520

S-11 Oil Immersed Transformer Industrial Power Transformer Toroidal Coil Structure

S-11 Oil Immersed Transformer Industrial Power Transformer Toroidal Coil Structure
