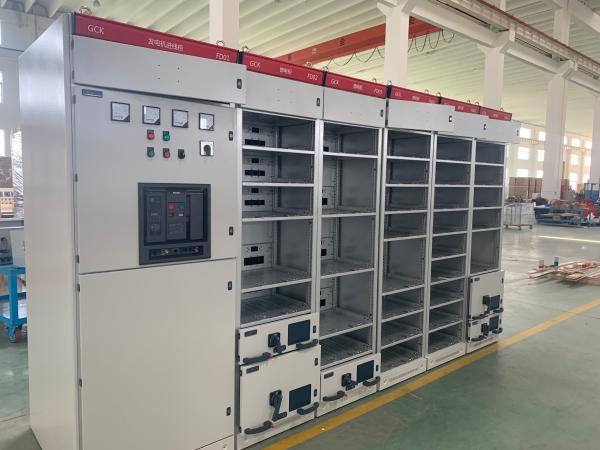

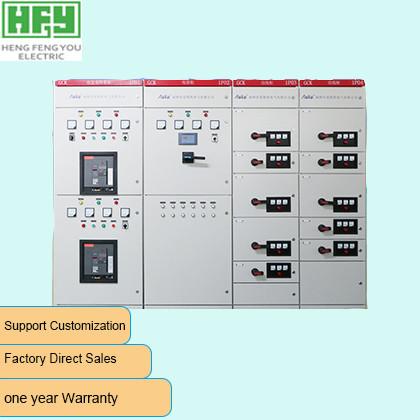

Metal Clad Low Voltage Switchgear Low Voltage Distribution Panel For Power Transmission
Metal Clad Low Voltage Switchgear Low Voltage Distribution Panel For Power Transmission
Metal Clad Low Voltage Switchgear Low Voltage Distribution Panel For Power Transmission
Metal Clad Low Voltage Switchgear Low Voltage Distribution Panel For Power Transmission
Specifications
Brand Name :
HENGFENGYOU
Model Number :
GCK
Certification :
ISO IEC CB COC KEMA SNI SABS CCC
Place of Origin :
China
MOQ :
1
Price :
200-20000/piece
Payment Terms :
LC T/T
Supply Ability :
5000 piece/year
Delivery Time :
30 days
Packaging Details :
wooden case
Type :
metal clad
Rated frequency :
AC 50Hz (60Hz)
Rated current(A) :
630, 1250, 1600, 2500, 3510, 4000
Customized :
OEM/ODM order acceptable
Application :
Power transmission or distribution
Product Name :
Electrical kyn28 12 switchgear 11kv
Rated Voltage :
3KV, 7.2KV, 12KV optional
Comply standards :
DL/T404, IEC298,GB3906
Description

GCS /GCK low voltage automatic electrical panels/low voltage Switchgear

1. Range of Use & Purpose

The electrical panels is applied to the distribution system in the power plants, high-rise buildings, chemical industry, and petroleum, metallurgy and textile industries. In the large power plants and highly automated petroleum and chemical industries that require connecting with computers, it is used, as a complete low-voltage distribution equipment, for power distribution in the power generation and distribution system with three-phase AC frequency 50(60)Hz, 380V(400)(600) and rated current up to and including 4000A, and motor centralized-control and reactive power compensation.

2. Electrical panels Service condition

1. Ambient temperature: -15'C~+40'C

2. Altitude: <=1000m

3. Air humidity:

daily average of Air humidity <=95%, daily average of partial vapor pressure <= 2.2kPa;

monthly average of Air humidity <=90%, monthly average of partial vapor pressure <= 1.8kPa

4. Earthquake intensity <= 8 degree

5. No corrosive or flammable gas

Special condition subject to users

Metal Clad Low Voltage Switchgear Low Voltage Distribution Panel For Power Transmission

3. Electrical panels Basic Parameters
Item Unit Parameters
Rated voltage KV 3, 7.2, 12
Rated current A 630,1250,1600,2500,3150,4000*
Rated short circuit breaking current KA 25, 31.5, 40
Rated short circuit switching current 63, 80, 100
Rated short-yime withstand current(4s) 25, 31.5, 40
Rated peak withstand current 63, 80, 100
Rated frequency Hz 50
Rated insulation level 1 min power frequency withstand voltage KV 42
Lighting impulse withstand voltage 75
control circuit voltages AC V 110, 220, 380
DC V 110, 220
Protection degree Housing IP4X , cubicle and circuit breaker IP2X when door is open

4. Order information

Schematic diagram of main circuit or electrical schematic diagram
Arrangement and layout
Model, specification and quantity of main components.
Incoming and outgoing wire method and cable specification, etc
If bus connection is required between the devices, bus connection and height from the ground shall be provided.

Working Environment

1. Indoor altitude above sea level: Maximum installation altitude: 2000m

2. Ambient air temperature: -5℃~+40℃ and the average temperature should not

exceed +35℃ in 24h

3. Relative humidity should not exceed 50% at max temperature +40℃. Higher

relative humidity is allowed at lower temperature. Ex. 90% at +20℃. But in view of

the temperature change, it is possible that moderate dews will produce casually.

4. No fire, explosion danger, serious pollution, chemical corrosion and severe vibration

5. Installation gradient not exceed 5°

6. This product is suitable for the following temperature transportation storage: -25℃ ~+55℃ 24h, in a short period of time (no more than 24hours) not more than+70℃.

Characteristics

This series of products with high breaking capacity, good dynamic stability, advanced and reasonable structure, electrical program of practical, series, strong versatility, various schemes of unit combination, a cabinet contained many circuits, save the area , beautiful appearance, high level protection, safe and reliable, convenient maintenance etc.

It accords with the standards IEC439 NEMA ICS2-322 as well as the GB7251-87 “Low voltage complete switch device ” national standards and ZBK36001-89 "low voltage withdraw type complete switch device” professional standards"

Metal Clad Low Voltage Switchgear Low Voltage Distribution Panel For Power Transmission

Metal Clad Low Voltage Switchgear Low Voltage Distribution Panel For Power Transmission
