Specifications
Brand Name :
HENGFENGYOU
Model Number :
MNS
Certification :
ISO IEC CB COC KEMA SNI SABS CCC
Place of Origin :
China
MOQ :
1
Price :
200-20000/piece
Payment Terms :
LC T/T
Supply Ability :
5000 piece/year
Delivery Time :
30 days
Packaging Details :
wooden case package
Name :
Electrical Switchgear
Feature :
Superior performance, product safety, reliability, environmental protection
Brand :
Power Distribution Transformer
Standard :
CE,ISO,UL,SABS,3C, IEC60076-11 ISO9001 ISO14001 KEMA CE
Model Number: :
Electrical Switchgear
Description

high and low voltage medium voltage 22kv 6kv kyn28-12 11kv incoming and outgoing switchgear cabinet panel 11kv manufacturers

KYN28-12 Mid-removable Switchgear

KYN28-12 removable AC metal-clad switchgear (short for panel as below) is a new product. It will be a substitute for old fashioned metal-enclosed switchgear, such as KYN-12, JYN-12, GFC-12, etc. The panel applies to 3.6~12kV 3 phase AC 50Hz network for receiving and distributing power energy and also for control, monitor and protection. It accords with standard of IEC62271-200, IEC60694, GB3906.

Technical Data

Item
Unit
Value
Rated Insulation Level
1 Min Power Frequency (P2E)
KV
42/48
Lighting Impulse withstand voltage (P2E)
KV
75/85
Rated Voltage
KV
12
Rated Frequency
Hz
50/60
Rated Current
A
630~4000
Main Busbar Rated Current
A
1250/1600/2000/2500/4000
Branch Busbar Rated Current
A
630/1250/1600/2000/2500/3150
Rated Short time Withstand Current(4S)
KA
16/20/25/31.5/40/50
Rated Peak Withstand Current
KA
40/50/63/80/100/125
Protection Level
Enclosure IP4X
Outline Dimension(Width*Depth*Height)
mm
650(800/1000)*1500(1670/1300/2000)*2200
Weight
kg
800~1200

witch Cabinet Outgoing Complete LV Switchgear Electrical

Product features

●Increase the heat capacity of the adapter, and significantly reduce additional temperature rise of connector, spacer plates due to the temperature rise in adapters.

●Clear and reliable division between functional units and compartments.

●Flat-mounted arrangement of bus bar permits good driving and thermal stability.

●The connecting with external cables is completed within the cable compartment, and the cable can be pulled in and out. The zero sequence current transformers are set in the cable compartment, easy for installation and maintenance.

●By the reduced current limiting reactors' matched short-circuit current, the bus bar's voltage could be stabilized at a certain value, the parts'short-circuit components strength requirement could also be reduced.

●The drawer unit has sufficient number of secondary plug-in components to meet the requirement for the numbers of connection points for computer interface and automatic control circuits.

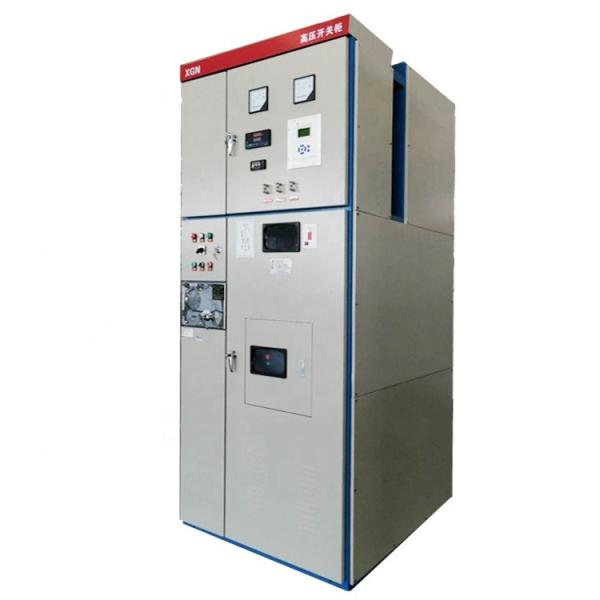

high and low voltage medium voltage 22kv 6kv kyn28-12 11kv incoming and outgoing switchgear cabinet panel 11kv manufactu

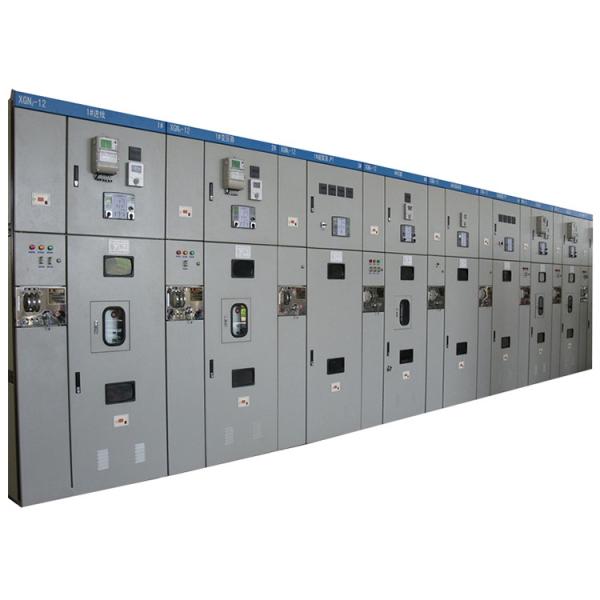

high and low voltage medium voltage 22kv 6kv kyn28-12 11kv incoming and outgoing switchgear cabinet panel 11kv manufactu

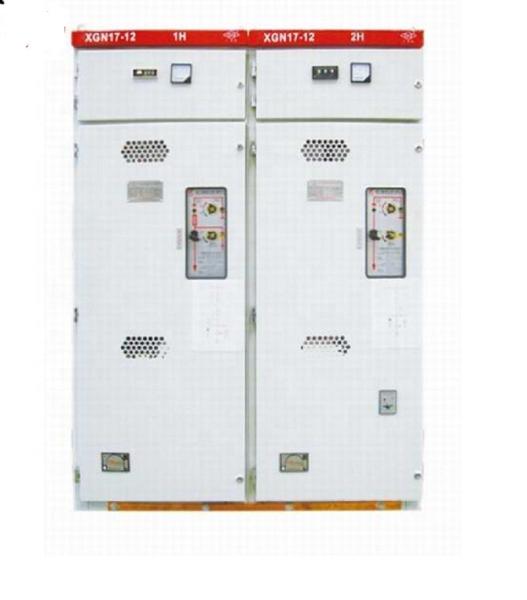

high and low voltage medium voltage 22kv 6kv kyn28-12 11kv incoming and outgoing switchgear cabinet panel 11kv manufactu
