Specifications
Brand Name :
HENGFENGYOU
Model Number :
SCB series
Certification :
ISO IEC CB COC KEMA SNI SABS CCC
Place of Origin :
China
MOQ :
1
Price :
200-200000/piece
Payment Terms :
LC T/T
Supply Ability :
5000 pieces/year
Delivery Time :
15 DAYS
Packaging Details :
wooden case package
Name :
Power Distribution Transformer
Feature :
Superior performance, product safety, reliability, environmental protection
Brand :
Power Distribution Transformer
Standard :
CE,ISO,UL,SABS,3C， IEC60076-11 ISO9001 ISO14001 KEMA CE
Model Number: :
Dry Type Transformer
Description

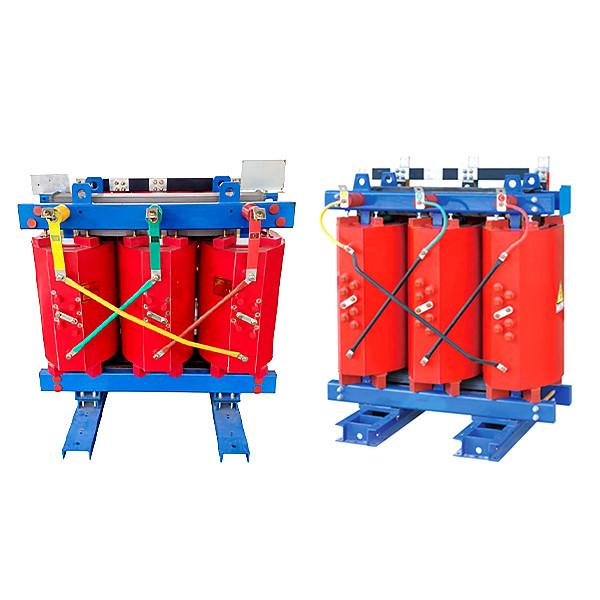

Scbh15 Amorphous Metal Dry Type Transformer - China Dry Type Transformer


1.Product Description

1. Technical standards: IEC 60076-1-5, IEC 61378-1:1997, JB/T 8636-1997, GB 1094.11-2007, GB 1094.1-2013


2. Rated capacity: 1-5000kVA


3. Rated voltage: 690V, 660V, 440V, 380V, 220V, 110, etc

4. Frequency: 50Hz or 60Hz

5. Phase: three phase

7. Coonnection: Y, yn0, Y,d11, D, yn11, etc.

8. Cooling type: AN(Automatic cooling) or AF(Wind cooling)

9. Insulation class: B, F, H

10. Protection calss: customed


11. Conditions of Use:
* The altitude is less than 1000 meters

* The ambient temperature is -10 to +40 degrees Celsius

* The working humidity: not more than 95% when +26 degrees Celsius.

Rated power (kVA) High voltage
(kV)		 H.V.Tap
(kVA)		 Low
Voltage
(kV)		 Vector group
Short circuit impedance		 No-load loss
(W)		 On-load loss
(W)		 No-load
Current
(%)		 Insulation
class		 Noise
(dB)
SC(B)9 SC(B)10 SC(B)9 SC(B)10
30 6
6.3
10
10.5
11		 ±5%

+2×2.5%		 0.4 Yyn0
Dyn11		 4 220 1901 750 710 2.3 F 40
50 310 270 1060 1000 2.2 40
80 420 370 1460 1380 1.7 40
100 450 400 1670 1570 1.7 40
125 530 470 1960 1850 1.5 41
160 610 540 2250 2130 1.3 42
200 700 620 2680 2530 1.3 42
250 810 720 2920 2760 1.1 44
315 990 880 3670 3470 1.1 46
400 1100 980 4220 3990 1.1 46
500 1310 1160 5170 4880 0.9 47
630 1510 1340 6220 5880 0.9 47
630 6 1460 1300 6310 5960 0.9 47
800 1710 1520 7360 6960 0.9 48
1000 1990 1770 8610 8130 0.9 48
1250 2350 2090 10260 9690 0.9 49
1600 2760 2450 12400 11730 0.9 50
2000 3400 3050 15300 14450 0.7 52
2500 4000 3600 18180 17170 0.7 55

Scbh15 Amorphous Metal Dry Type Transformer - China Dry Type Transformer

Scbh15 Amorphous Metal Dry Type Transformer - China Dry Type Transformer

Scbh15 Amorphous Metal Dry Type Transformer - China Dry Type Transformer
