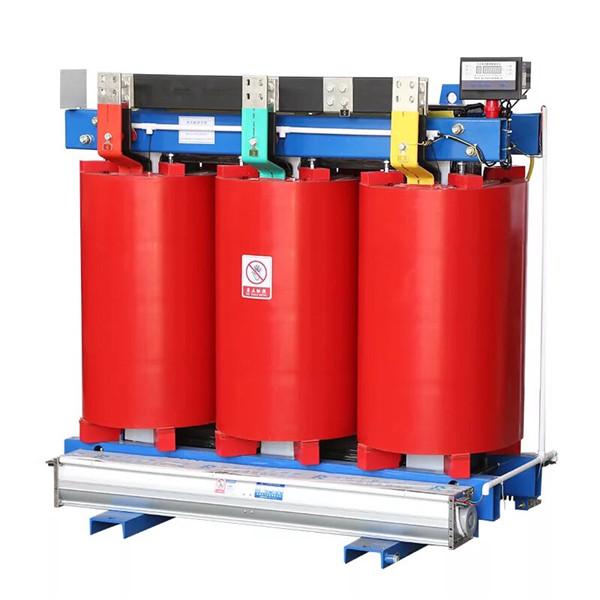

China Suppliers 6kv 10kv 630kva 1000kva 2000kva 3 Phase Cast Resin Power Electrical Dry Type Transformer

Products introduction

Our SC(B) series epoxy resin cast dry transformer is cast under vacuum with thin inssulating bands automatically. The core is made of high-permeable grain-orientated silicon sheet and cast with imported epoxy resin. Thanks to advanced technology, quality raw materials, scientific management, and perfect inspection means, our products have the following features: The coil is reinforced with glass fiber and cast under vacuum with filler epoxy resin. It has good mechanical properties, is free of crack and inner bubble and has low local discharge, high reliability, and long service life. The high and low-voltage systems are cast under vacuum, thus the coil will not absorb moisture, the clamps of core are subjected to corrosion-resistant treatment and it may run under high temperature or orther serious environments. Flame retardancy, explosion-proof and no environmental contamination. The insulating materials in the coil such as glass fiber are self-extinguishing and they will not generate toxic or harmful gas under high temperature.

SCB10 epoxy resin cast dry-type transformer is an upgrade product of SCB9. SCB10 series products features significant high mechanical strength, high electrical strength, high heat resistance and low loss, low noise, low partial discharge. So SCB10 dry-type transformer is environmental protection products for new generation of urban power grid update, and is the mainstream product in the current transformer market. It is especially suitable for commercial center, airport, high building, chemical plant, nuclear power station, ship and other important places requiring fire prevention, explosion-proof and moisture-proof.

SCBH15 Series amorphous alloy dry-type transformer is a new type energy-saving transformers, which combines technology advantage with low-loss of amorphous alloy and good- insulation and strong mechanical strength of traditional epoxy resin pouring transformer.

By comparing with the traditional SCB10 series silicon steel dry-type transformers, it can approx. reduce no-load loss by 70%, no-load current by 80%, and operating temperature by 30-40℃; the service life extends appox.10 years. Moreover,SCBH15 Series transformer has the advantages of fire resistance, flame retardant, high reliability and maintenance free, which can be used in the power load center, suitable for places with higher demands in fire protection and higher safe demand environment.

Products details:

10/0.4kV Dry Type transformer Technical parameters(Second level of energy efficiency)

Note: due to the constantly updated products, shape size and product weight in the table will have some changes, please refer to provide the appearance size chart when ordering.

Use condition:

The height above the sea level is below 1000m;
Highest air temperature +40ºC;
Highest daily average air temperature+30ºC;
Highest annual average air temperature +20ºC;
Lowest outdoor air temperature -5ºC.
