2500kVA 4000KVA Oil immersed Transformer 10kV 11kV Power Distribution transformer 3 phase transformer manufacturers

10KV oil immersed transformer

The product complies with the national standard GB1094-1996 and GB /t6451-2008. This is the latest series product with low loss copper winding. It is made of high-quality materials. New technology and materials are used for coil body and insulation. This product shows advantages of low loss, low noise and high efficiency, and can achieve good energy-saving effect and reduce pollution.

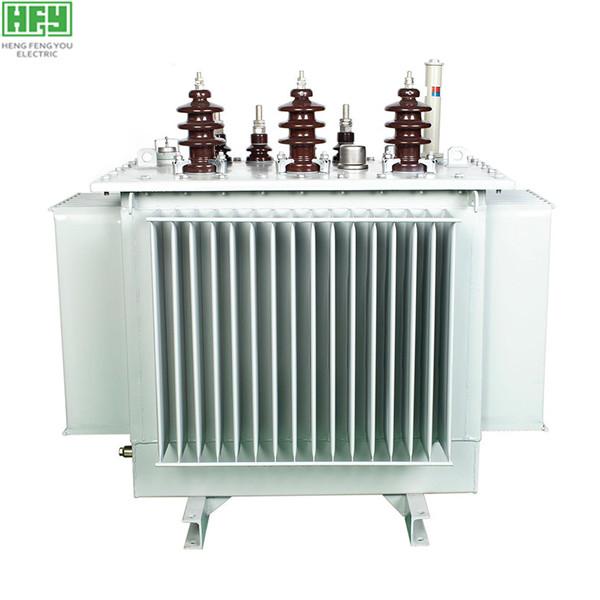

12KV oil immersed transformer

The 12kV fully-sealed oil immersed power transformer shows advantages of low loss, low noise and high efficiency, which achieve good energy-saving effect and reduce pollution. Compared with the normal oil immersed transformer, the fully-sealed transformer cancels the external oil tank. The change of oil volume is automatically adjusted and compensated by the elasticity of the corrugated sheet of the corrugated oil tank. The transformer is isolated from the air to prevent and slow down the oil deterioration and aging of the insulation. This enhance the operation reliability, and free maintenance under normal operation.

SH15 amorphous alloy power transformer

SH15 series amorphous alloy hermetically-sealed transformer is a new type of environmental protection and energy-saving product. Its core is wound by amorphous alloy, and no-load loss is 75% and above lower than the current S11 distribution transformer. Amorphous alloy is a new type strip material, which has no crystal structure, small magnetization power and high resistivity, so the eddy current loss is small. Application of this material as iron core can produce a new type of energy-saving transformer, which is an ideal product for the renewal of distribution network.

Three Phase

COMPANY PRODUCTION

Hengfengyou transformer Qingdao branch is one of the holding subsidiaries of "Qingdao Hengfengyou group". It has been specialized in the development research, manufacturing and service of power transformers for 30 years.

Our main products are: oil immersed transformer, dry type transformer, amorphous alloy transformer, experimental transformer, electric furnace transformer, rectifier transformer, etc. At present, our 10kV, 12kV, 20kV, 33kV, 35kV oil immersed transformers of S11, S13 series , 10kV, 12kV, 20kV, 33kV, 35kV epoxy cast dry-type power transformers of SCB10, SCB13 series , SH15, SCBH15 amorphous alloy power transformers, on load tap changing transformers and other products have passed the inspection of the national electrical product quality supervision and inspection agency and obtained the registration model record certificate. The products also passed the energy efficiency product certification of China quality certification agency, CCC product certification of national power certification agency, EU CE certification, ISO9001 quality management system certification and so on.

·Order instructions:

1. The customer needs provide main parameters of the transformer (input and output voltage, capacity, loss, etc.)

2. Other customer requirements
