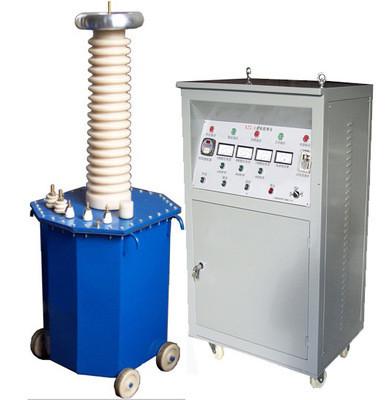

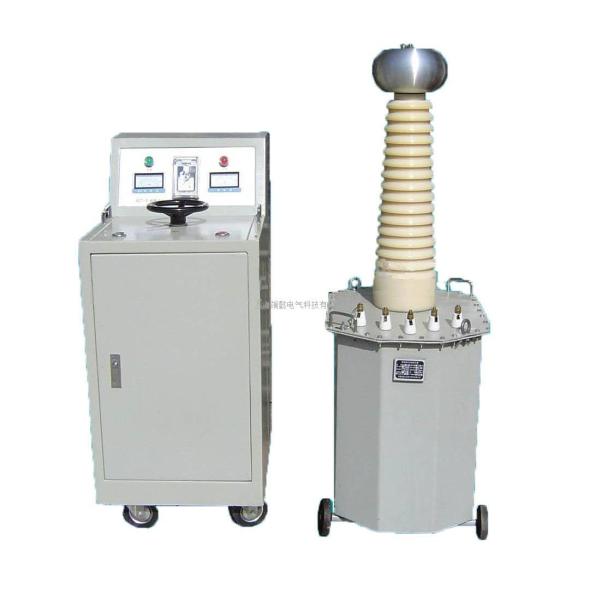

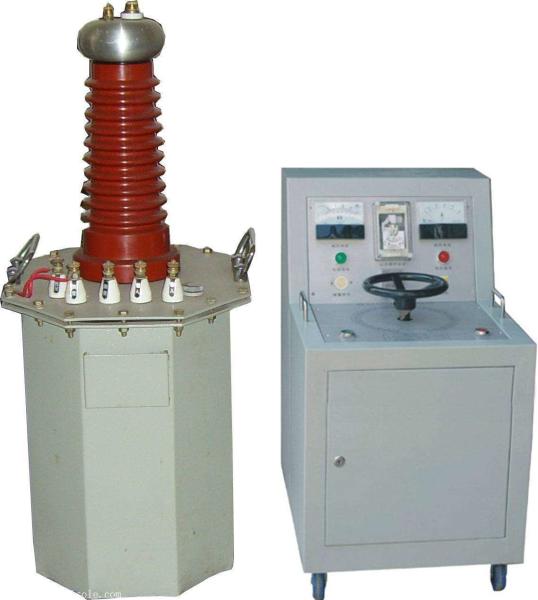

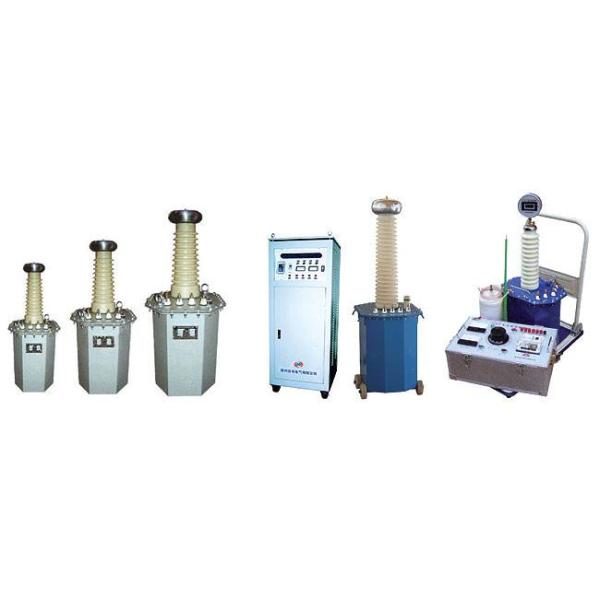

YD series AC / DC high voltage test transformer

YD series AC / DC high voltage test transformer

Product description

The light AC / DC high voltage test transformer is a new product based on the (G) series of test transformers and improved according to the national standard . This series of products are characterized by small volume, light weight, compact structure, complete functions, strong universality and convenient use. It is especially suitable for power system, industrial and mining enterprises and scientific research departments to carry out power-frequency voltage-withstand test or insulation strength test under DC high voltage for various high-voltage electrical equipment, electrical components and insulating materials. It is an essential and important equipment in high voltage test.

Structure features

The light high voltage test transformer adopts single frame core structure. The primary winding is wound on the iron core and the high-voltage winding is outside. This coaxial arrangement reduces the leakage flux and increases the coupling between windings. The shell and the core of the product form an octagonal structure, and the overall appearance is elegant and generous.

Technical data

Model Capacity High-voltage voltage(KV) High-voltage current(mA) Input of low voltage

Transformation

ratio

 Temperature rise ℃
(kVA) AC DC AC DC

Voltage

(V)

Current

(A)

 High voltage/ Low voltage 30 mins
1.5/50 1.5 50 70 30 15 200 7.5 500 10
3/50 3 60 15
5/50 5 100 25
10/50 10 200 50 50
20/50 20 400 100 400 50
30/50 30 600 75
40/50 40 800 105 100
50/50 50 1000 100 125
10/100 10 100 140 100 50 25 1000
20/100 20 200 100 50
30/100 30 300 75
40/100 40 400 100
50/100 50 500 125
20/100 20 150 210 133 50 1500
30/100 30 200 75
40/100 40 267 100
50/100 50 333 125
100/150 100 667 150 250

·Service conditions

1. Ambient temperature: 0 ~ 40 °C

2. Altitude: < 100m

3. Relative humidity: < 85%

4. There shall be no gas, steam, chemical dust and other explosive and corrosive media in the site.
