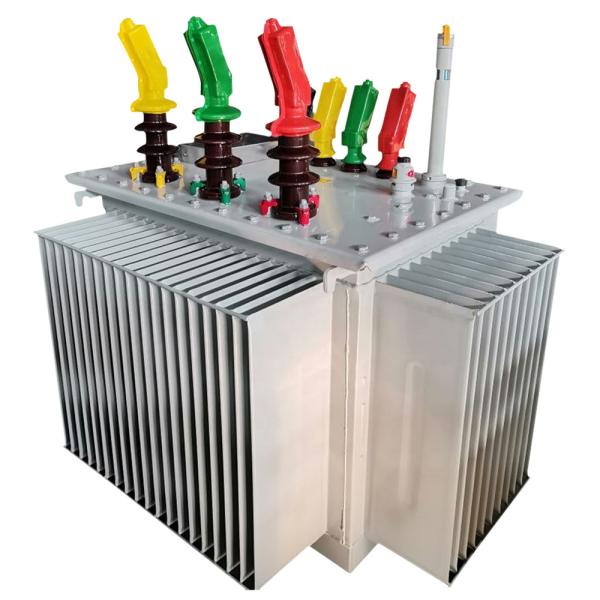

S9/12KV Oil-immersed transformer fully sealed factory direct supply
S9/12KV Oil-immersed transformer fully sealed factory direct supply
S9/12KV Oil-immersed transformer fully sealed factory direct supply
S9/12KV Oil-immersed transformer fully sealed factory direct supply
Specifications
Brand Name :
HENGFENGYOU
Model Number :
s9
Certification :
ISO IEC CB COC KEMA SNI SABS CCC
Place of Origin :
Qingdao,China
MOQ :
1
Price :
200-200000/piece
Payment Terms :
LC T/T
Supply Ability :
5000 pieces/year
Delivery Time :
15 DAYS
Packaging Details :
wooden case
Usage :
Power
Product name :
Three phase oil transformer
Frequency :
50Hz/60Hz
Output Voltage :
Customize
Color :
Optional
Application :
Change voltage
Description

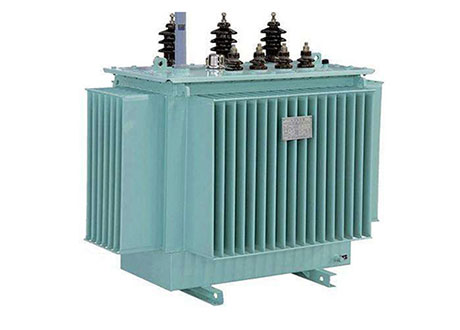

S9/12KV Oil-immersed transformer

S9/12KV Oil-immersed transformer fully sealed factory direct supply

Product Features:

S9/12kv fully sealed oil-immersed power transformer has the advantages of low loss, low noise and high efficiency, which can achieve good energy saving effect and reduce pollution.Fully sealed transformer and ordinary oil-immersed transformer, the elimination of the oil tank, the change of oil volume by the elastic corrugated tank to automatically adjust compensation, transformer and air isolation, prevent and slow down the deterioration of oil and insulation aging, enhance the reliability of operation, normal operation without maintenance.

Technical data

Serial number

Rated Capacity

(kVA)

 Type Vector Group

No-load

current (%)

No-Load

loss (kW)

 Load loss (kW) Short-circuit impedance(%) Type
1 10 S9-10/10 Y,yn0 1.98 0.068 0.306 4 New Distribution Transformer
2 20 S9-20/10 1.96 0.084 0.521
3 30 S9-30/10 2.1 0.13 0.6
4 50 S9-50/10 2 0.17 0.87
5 63 S9-63/10 1.9 0.2 1.04
6 80 S9-80/10 1.8 0.25 1.25
7 100 S9-100/10 Y,yn0 1.6 0.29 1.5 4.0 New Distribution Transformer
8 125 S9-125/10 1.5 0.34 1.8
9 160 S9-160/10 1.4 0.4 2.2
10 200 S9-200/10 1.3 0.48 2.6
11 250 S9-250/10 1.2 0.56 3.06
12 315 S9-315/10 1.1 0.67 3.65
13 400 S9-400/10 1 0.8 4.3
14 500 S9-500/10 1 0.96 5.15
15 630 S9-630/10 0.9 1.2 6.2 4.5
16 800 S9-800/10 0.8 1.4 7.5
17 1000 S9-1000/10 0.7 1.7 10.3
18 1250 S9-1250/10 0.6 1.95 12
19 1600 S9-1600/10 0.6 2.4 14.5

Structural characteristics

1. The transformer core is made of imported high-quality cold-rolled silicon steel sheets, which can greatly reduce the no-load loss and no-load current, and tie the core to ensure the compacting degree of the core and reduce noise.

2. The high-low voltage winding is made of oxygen-free copper, and the low-voltage winding of 500kVA and below adopts double-layer cylindrical structure.The 630kVA and above adopts double or four helix structure, and the high-voltage winding adopts multi-layer cylindrical structure.

3. The transformer connection group adopts Dyn11 to reduce the influence of harmonics on the power grid and improve the power supply quality.

4, the transformer is a fully sealed structure, the inner and outer surface of three primers, one coat of finish coating, the product has anti-salt fog, anti-heat and humidity, anti-mold, beautiful and durable, enhance the reliability of operation

Workshop

S9/12KV Oil-immersed transformer fully sealed factory direct supply

·Service conditions

1. The maximum ambient air temperature shall not exceed 40 ℃, and the minimum shall not below - 25 ℃;

2. The altitude shall not exceed 1000m. If special customized transformers and low-voltage components are used, the altitude can reach 4000m;

3. The vertical inclination is no more than 5 °, and no violent vibration and impact;

4. The air humidity is not more than 90% (+ 25 ℃);

5. No gas and conductive dust that will seriously affect the insulation of transformer, no explosion hazard and corrosion of electrical components;

6. Outdoor wind speed shall not exceed 35m / s.

7. If service conditions beyond the above, specially customized product is available.

S9/12KV Oil-immersed transformer fully sealed factory direct supply

If any interest , pls feel free to contact us:

S9/12KV Oil-immersed transformer fully sealed factory direct supply
